THA-2B Chipping Hammer Assembly Parts

THA-2B Chipping Hammer Assembly Parts

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
Y10270010 Handle (Bare) for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
Call for Price call for price call for price
1
Y1027001A Handle - Complete (No. 1-10) for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$713.59
2
Y10212020 Lever for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$34.25
3A
Y10212030 Roll Pin 6 x 20 for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$5.99
3B
Y30104030 Roll Pin 5 x 20 for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$5.99
4A
Y10212050 Throttle Valve for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$17.41
4B
Y10212060 Throttle O-Ring P-7 for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$5.99
5
Y10212070 Throttle Valve Bushing for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$26.22
6
Y10301070 Throttle Valve Spring for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$7.68
7
Y10212090 Throttle Valve Cap for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$18.80
8
Y10212100 Push Rod for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$11.58
9
Y10212110 Push Rod Sleeve for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$19.81
10
Y10212120 Screw Bushing NPT for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$20.15
11
Y10246140 Ring Valve for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$59.50
12
Y10412120 Valve Plate for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$30.67
13
Y10412130 Valve Seat for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$19.19
17
Y10270170 Clutch for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$77.28
19
Y10274140 Cylinder THA-1B for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
Call for Price call for price call for price
19
Y10276140 Cylinder THA-2B for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
Call for Price call for price call for price
19
Y10270140 Cylinder THA-3B for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
Call for Price call for price call for price
19
Y10278140 Cylinder THA-4B for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
Call for Price call for price call for price
20
Y10212210 Piston THA-1B for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$42.09
20
Y10214210 Piston THA-2B for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$42.09
20
Y10216210 Piston THA-3B for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$45.89
20
Y10218210 Piston THA-4b for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$45.87
21
Y1021224H Shank Bushing (Hex) for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$36.05
21
Y1021224R Shank Bushing (Round) for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$36.86
28
Y30112200 Exhaust Band, Saw Tooth, Tha-1B,2B,3B,4B by Tamco Toku
$58.25
29
T25119002 Retainer for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$86.17
30
Y10212300 Retainer Spring for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$7.68
32
Y10212320 O-Ring P-50 for Toku THA-1,2,3,4 Chipping Hammers by Tssmco
$9.98
View full details

Frequently asked questions

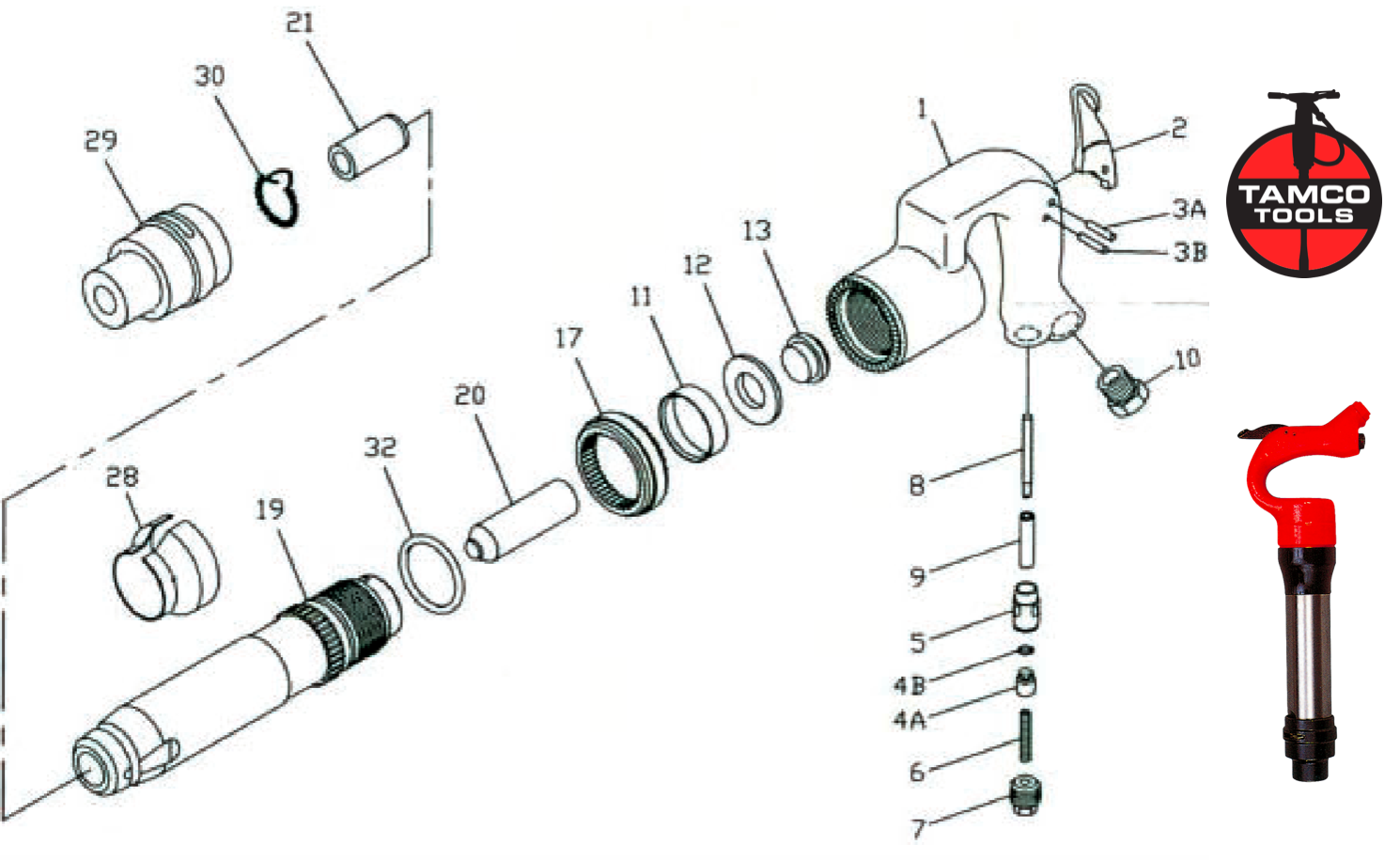

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
