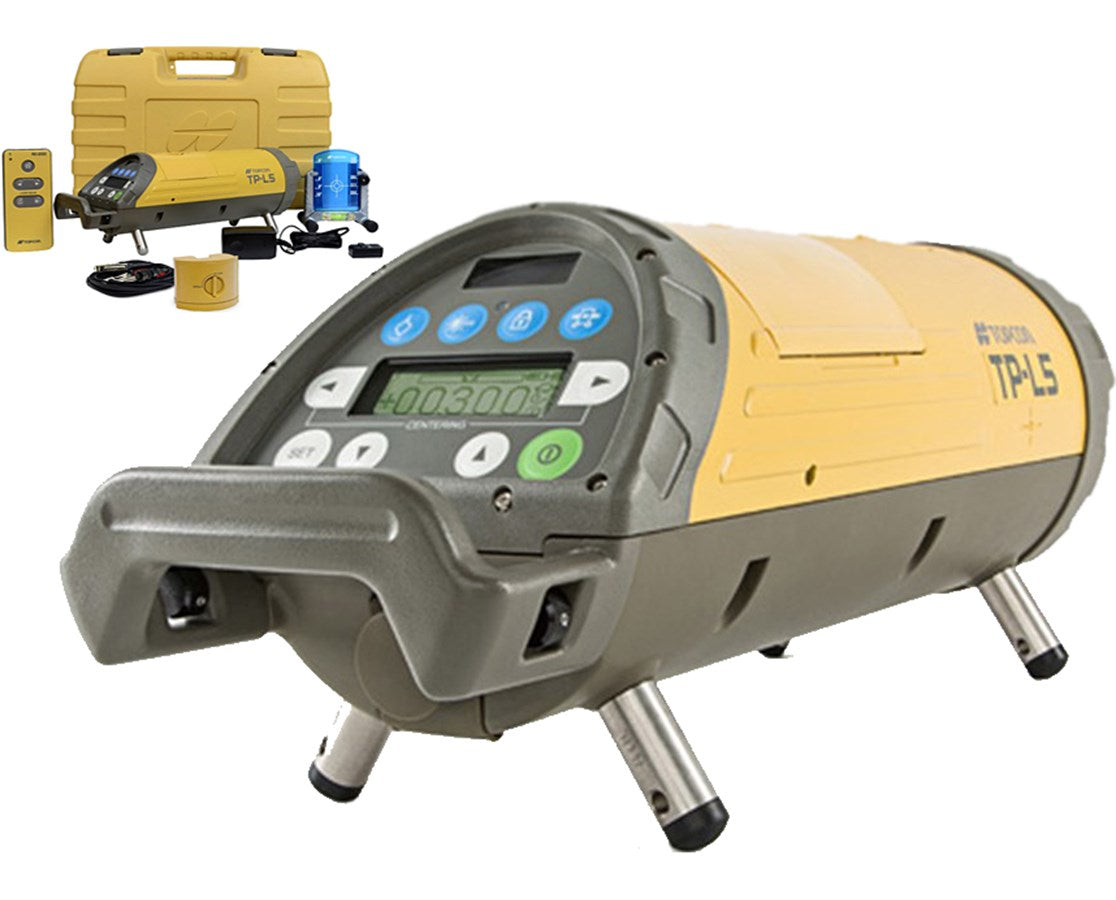

Topcon 329560132 TP-L5 Series Green Beam Pipe Laser
Overview for the Topcon 329560132 TP-L5 Series Green Beam Pipe Laser
Featuring a fully auto-leveling grade range of -15% to 40% with a ±10 horizontal arc-second accuracy, the Topcon TP-L5 Series Green Beam Pipe Laser is an effective construction laser for several outdoor applications such as trench and pipe alignment, trench excavation and the like. This LP-L5 series features the Topcon GreenBeam technology that is four times brighter than conventional beams. Also, it boasts the Smartline function that accelerates production by allowing setup and alignment automatic.
This green beam laser has an operating range of up to 656 feet using the RC-200 remote control with a forward position and about 82 feet from above panel. This remote control gives full function line control, automatic alignment mode and line centering. Also, it includes a reliable plumb light and adjustable targets to achieve the wanted line.
This Topcon TP-L5 Green Beam pipe laser includes an updated LCD display that has a bright, easy-to-read menu. With an IPX8 rating, this pipe laser is protected from water and is submersible up to three feet. Using rechargeable NiMH batteries, it provides up to 40 hours operating time and up to 55 hours using alkaline batteries. In addition, it has a charging time per battery of up to nine hours which saves time and money.
Configuration Options
The Topcon TP-L5 Series Green Beam Pipe Lasers comes in three models with varying plumb references. Please select your preference from the drop-down menu above.
- 329560132: Topcon TP-L5BG Economy Green Beam Pipe Laser with LED Plumb Alignment
- 329560122: Topcon TP-L5G Green Beam Pipe Laser with Auto Alignment
- 329560152: Topcon TP-L5GV Green Beam Auto Alignment Pipe Laser with Laser Plumb
Features for the Topcon 329560132 TP-L5 Series Green Beam Pipe Laser
- Choice of 3 plumb references
- 4x brighter than conventional beams
- Topcon GreenBeam technology
- Up to 656 feet distance with RC-200 remote control
- Grade readout: -15% to 40%
- Auto-leveling within ±4 degrees
- Horizontal accuracy: ±10 arc seconds
- Smartline feature
- Plumb light
- Adjustable targets
- Updated LCD display
- Up to 40 hours using NiMH battery
- Up to 55 hours using alkaline battery
- Charging time per battery up to 9 hours
- IPX8 water-resistant
Specifications for the Topcon 329560132 TP-L5 Series Green Beam Pipe Laser
General | |
| Accuracy | ± 10 arc seconds |
| Self-Leveling Range | ± 10% degrees |
| Protection Class | At least 16.5 feet waterproof depth for 24 hours |
| Warranty | 5-year |
| Material | Cast aluminum construction |
Laser | |
| Color | Green |
| Type/Wavelength | 532 nm |
Grade/Slope | |
| Range | -15% to +40% |
Battery/Power | |
| Rechargeable Battery/Life | Ni-MH/40 hours |
| Alkaline Battery/Life | D size/55 hours |
Remote Control | |
| Operating Range | Front: 660 ft. (200 m); Rear: 82 ft. (25 m) |
| Alkaline Battery/Life | AAA |
Features | |
| Display | Large illuminated LCD |
| Plumb Reference | LED |
Applications | |
| Tunneling | Yes |
| Sanitation | Yes |
| Interior Pipe Work | Yes |
| Exterior Pipe Work | Yes |
| Manholes | Yes |
