Trailer Lighting II Assembly Parts for V Series Night-Lite (Sn 39-000001 to 39-999999) by Allmand

Trailer Lighting II Assembly Parts for V Series Night-Lite (Sn 39-000001 to 39-999999) by Allmand

  • Trailer Lighting II Assembly Parts for V Series Night-Lite (Sn 39-000001 to 39-999999) by Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
102825 Oval Lamp Grommet for Night-Lite V-Series Light Towers by Allmand
$4.88
2
102721 Led Tail Lamp Stop Turn for Night-Lite V-Series Light Towers by Allmand
$124.89
3
106212 Light Led Marker Amber for Night-Lite V-Series Light Towers by Allmand
$41.03
4
106211 Light Led Marker Red for Night-Lite V-Series Light Towers by Allmand
$41.03
5
114115 Tail Light Harness Nlv for Night-Lite V-Series Light Towers by Allmand
$136.25
6
115116 License Plate Light Led for Night-Lite V-Series Light Towers by Allmand
$60.20
7
650542 1 1/4 Id X 1 1/2 Od Grommet for Night-Lite V-Series Light Towers by Allmand
$2.99
8
022014 #10 Cush Clamp .313 Hole for Night-Lite V-Series Light Towers by Allmand
Call for Price call for price call for price
9
041070 1/4-20 X 3/4 Slotted Hex Washer Head Machine Screw for Night-Lite V-Series Light Towers by Allmand
$2.99
10
041040 #10-24 X 1 1/2 Phillips Round Head Machine Screw for Night-Lite V-Series Light Towers by Allmand
$2.99
11
044016 #10-24 Keps Hex Nut for Night-Lite V-Series Light Towers by Allmand
$2.99
NS
068041 4” Cable Tie for Night-Lite V-Series Light Towers by Allmand
Call for Price call for price call for price
NS
022137 Push Button Zip Tie Mount for Night-Lite V-Series Light Towers by Allmand
Call for Price call for price call for price
NS
112266 Tail Light Harness Schematic for Night-Lite V-Series Light Towers by Allmand
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

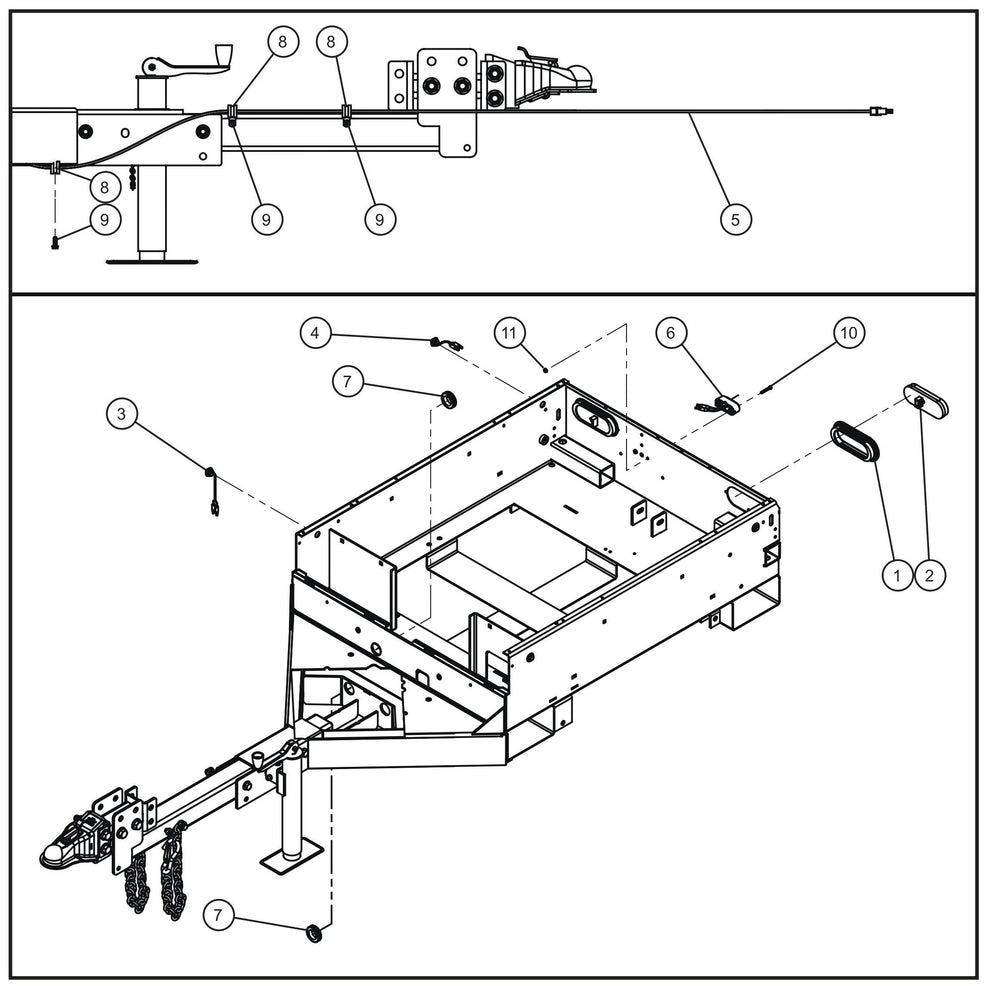

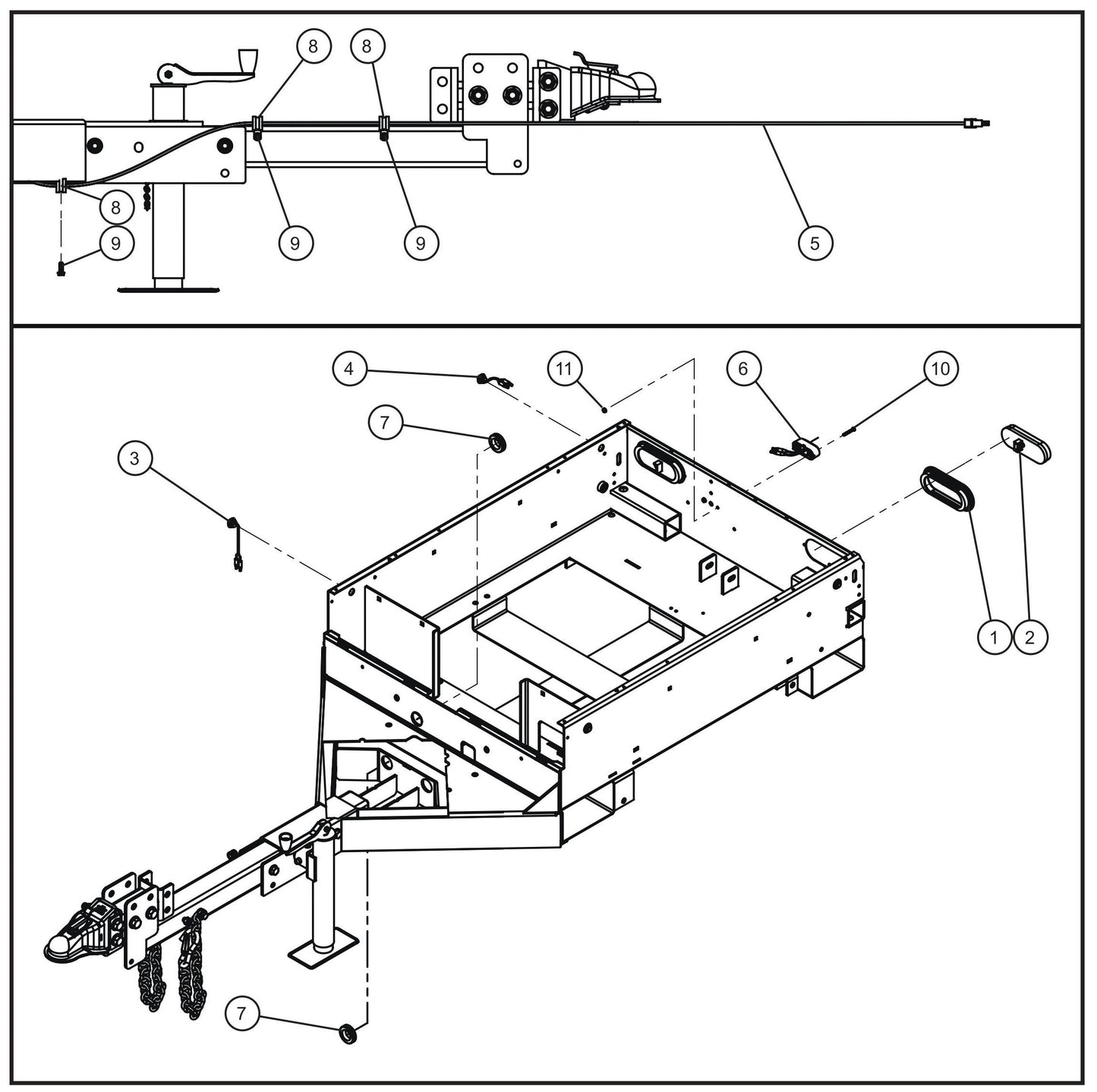

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
