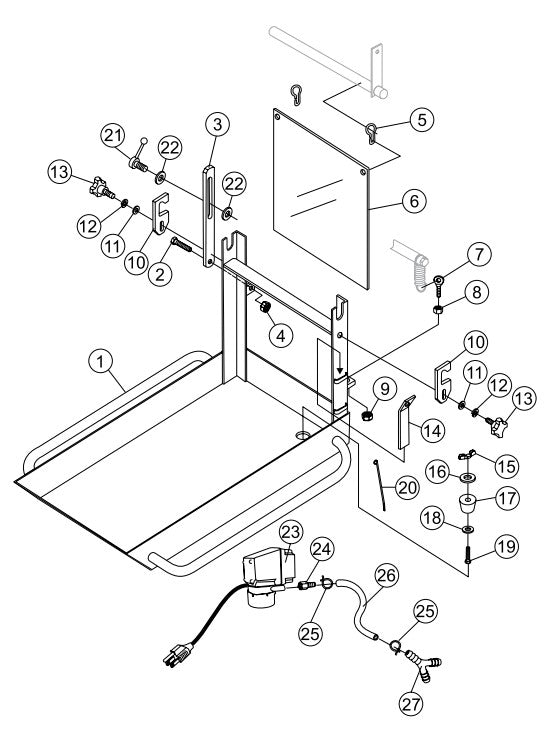

Tray Assembly Parts- MP115E, MP120E, MP1H 1.5 HP 1Ø ELECTRIC MOTOR, 2.0 HP 1Ø ELECTRIC MOTOR, 4.8 HP HONDA GASOLINE ENGINE

Tray Assembly Parts- MP115E, MP120E, MP1H 1.5 HP 1Ø ELECTRIC MOTOR, 2.0 HP 1Ø ELECTRIC MOTOR, 4.8 HP HONDA GASOLINE ENGINE

  • Tray Assembly Parts- MP115E, MP120E, MP1H 1.5 HP 1Ø ELECTRIC MOTOR, 2.0 HP 1Ø ELECTRIC MOTOR, 4.8 HP HONDA GASOLINE ENGINE
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
29695-351 TRAY, WATER | Genuine OEM Multiquip Part
$631.16
2
0105 Hhcs 5/16-18X1-1/2 for G55H Flex Shaft Concrete Vibrator by Multiquip
$223.33
3
29685-001 ARM, BLADE HEIGHT ADJST. by Multiquip
$17.03
4
08233-005 LOCK NUT 5/16-18" GRIPCO by Multiquip
$4.39
5
23853-001 SNAP HOOK, SHOWER CURTAIN by Multiquip
$4.39
8
1456 Hex Finish Nut 3/8-16 for J Series Walk Behind Trowels by Multiquip Whiteman
$2.19
10
29684-001 HOOK | Genuine OEM Multiquip Part
$10.10
11
10136 Flat Washer 3/8 for CA4HC Walk Behind Trowel by Multiquip Whiteman
$2.19
12
0166 A 3/8” Lock Washer for STH SERIES Hydrostatic ride on power trowels by Multiquip Whiteman
$4.39
13
15503 Knob, Comfort Grip for FCG1-6HA FCG1 6HA Slabsaver Concrete Saw by Multiquip
$10.91
14
23783-001 WRENCH, HEX 3/4 | Genuine OEM Multiquip Part
$10.04
15
2509 NUT, WING 1/4 - 20 PLTD | Genuine OEM Multiquip Part
$4.39
16
12391-004 WASHER, FLAT 1/4 AN970-4 by Multiquip
$4.39
18
0948 Washer, Flat 1/4 Sae for MLT Series Light Towers by Multiquip
$4.39
19
5277 Screw, Hhc 1/4"-20 X 1-1/2" for HHNG5 Mechanical ride on power trowels by Multiquip Whiteman
$4.39
21
29719-001 HANDLE LOCK | Genuine OEM Multiquip Part
$59.06
22
0447 Washer, Flat 1/2 Sae for MLT Series Light Towers by Multiquip
$4.39
23
23843-001 WATER PUMP, ELECTRIC | Genuine OEM Multiquip Part
$522.83
24
26077-001 FITTING, BRASS 6 BARB 1/4FP by Multiquip
$6.59
25
12694-001 CLAMP, HOSE | Genuine OEM Multiquip Part
$3.29
26
23867-002 TUBING, VINYL 5/16 | Genuine OEM Multiquip Part
$6.59
27
14233-002 Y-FITTING | Genuine OEM Multiquip Part
$6.59
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
