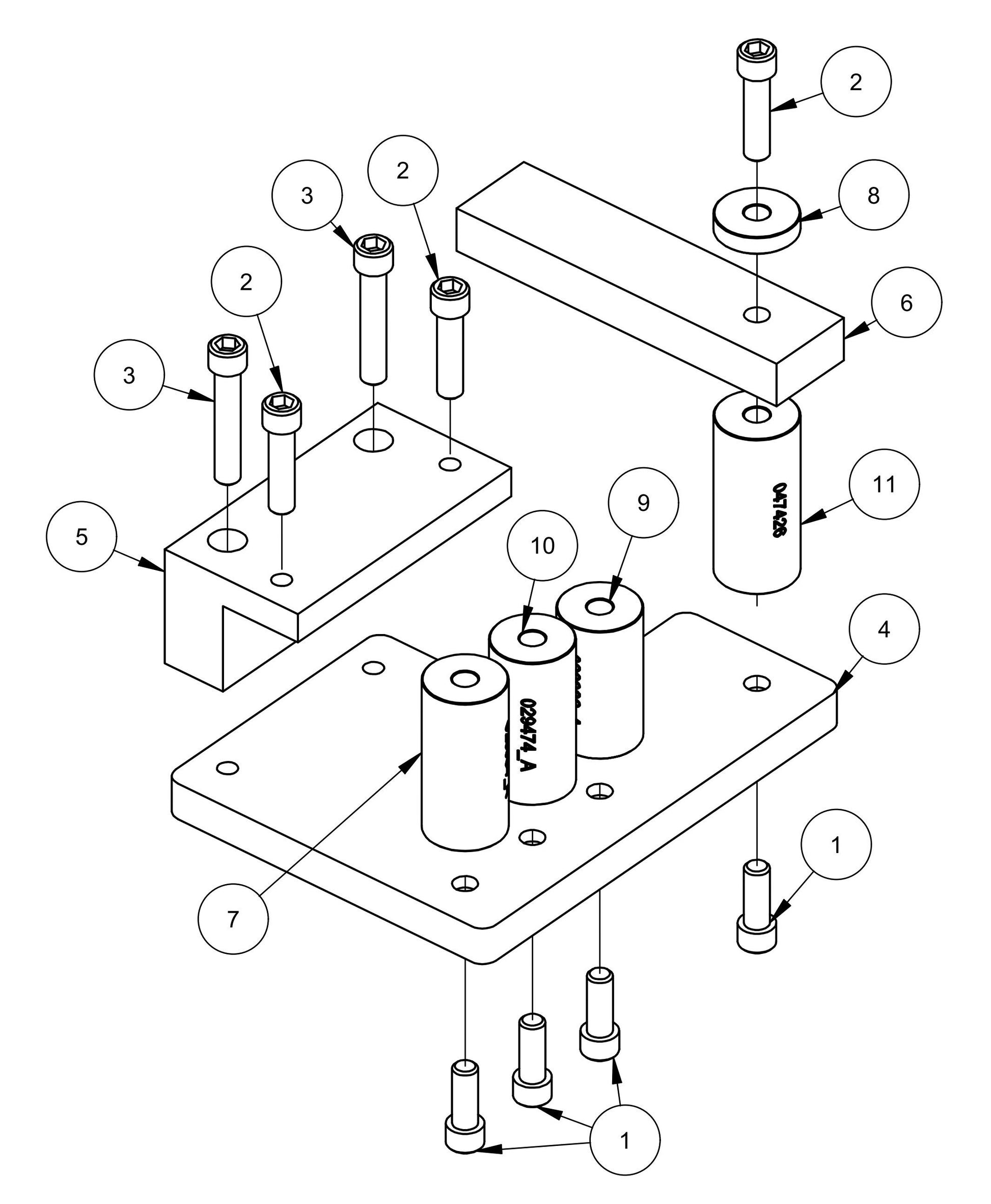

Trowel Arm Alignment Jig Towel Arm Jig Assembly Parts

Trowel Arm Alignment Jig Towel Arm Jig Assembly Parts

  • Trowel Arm Alignment Jig Towel Arm Jig Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
-
016863 Jig, Trowel Arm Alignment by Allen Enginnering
$1,176.53
1
015884 Fstn, Shcs 3/8-16 X 1 by Allen Enginnering
$4.95
2
016877 FSTN, SHCS 3/8-16 X 1-1/2 by Allen Engineering
$3.99
10
029474 SPACER, 2.500 HGT ADJUSTING by Allen Engineering
$66.00
11
047426 SPACER, 2.725 HGT ADJUSTING by Allen Engineering
$120.00
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
