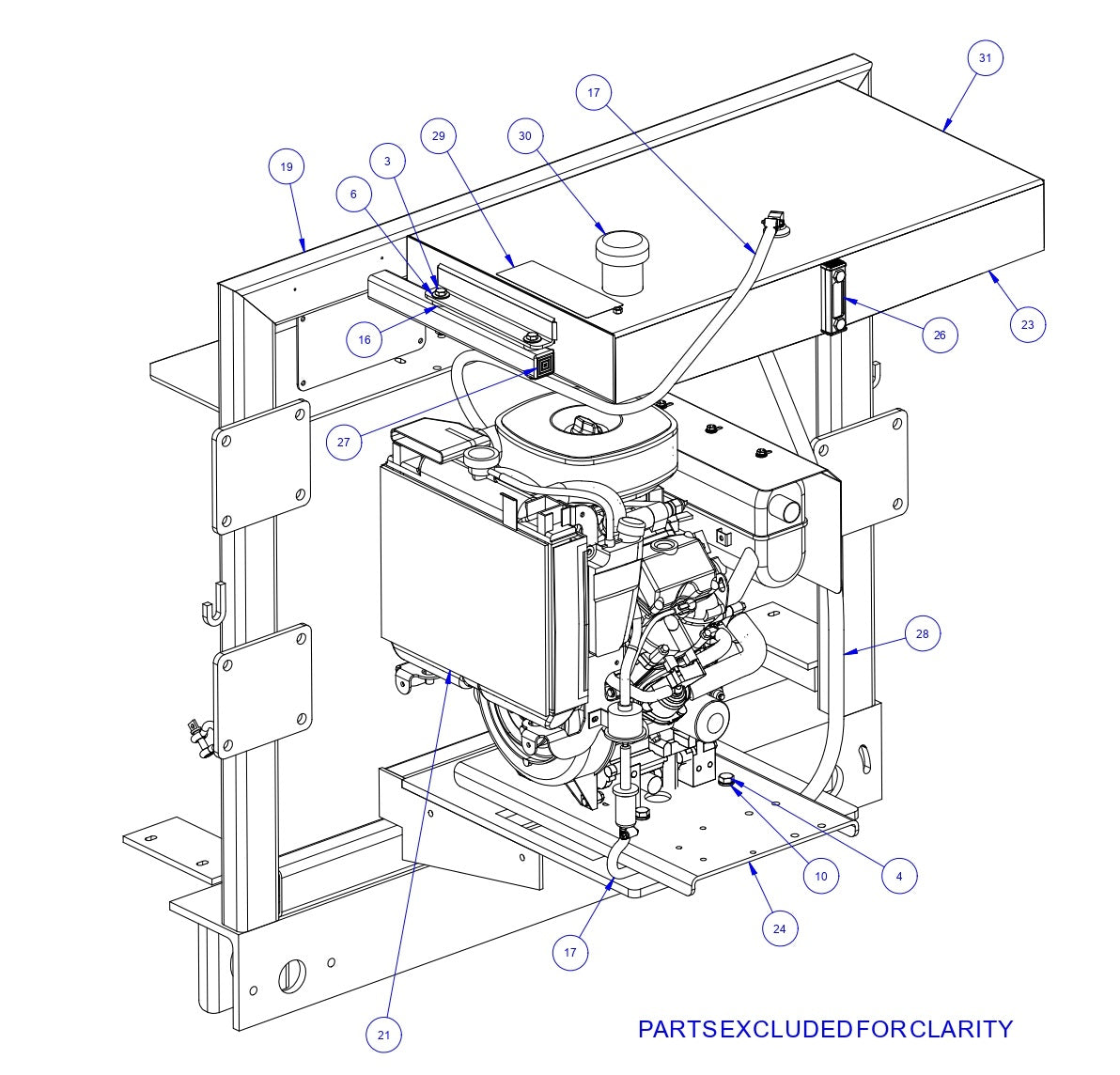

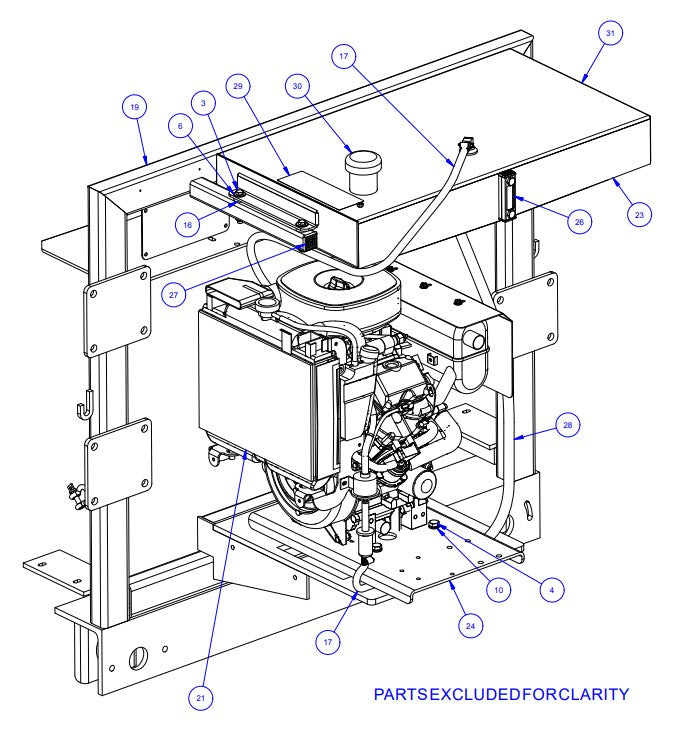

TRTP150B Triple Roller Tube Pavers Fuel Assembly-1 Parts by Allen Engineering

TRTP150B Triple Roller Tube Pavers Fuel Assembly-1 Parts by Allen Engineering

  • TRTP150B Triple Roller Tube Pavers Fuel Assembly-1 Parts by Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
4
010067 Fstn, Hhcs 1/2-13 X 1 Gr8 by Allen Enginnering
$3.99
10
010093 Fstn, Lw 1/2 Gr8 by Allen Enginnering
$4.95
16
015713 Bushing, Nitrile by Allen Enginnering
$2.99
21
065825 Engine, Kohler Pa-Ech980-3012 by Allen Enginnering
$10,084.50
26
047172 Gauge, 3" Sight Level by Allen Enginnering
$164.71
30
053472 Cap, Tethered Fuel (Epa) by Allen Enginnering
$108.32
1
010001 Fstn, Hhcs 1/4-20 X 1/2 Gr8 by Allen Enginnering
$4.95
3
010042 FSTN, HHCS 3/8-16 X 2-1/2 GR 8 by Allen Engineering
$3.99
5
010081 Fstn, Fw 1/4 Grd8 by Allen Enginnering
$4.95
7
010085 Fstn, Fw 1/2 Grd8 (Od 1.25) by Allen Enginnering
$4.95
8
010089 Fstn, Lw 1/4 by Allen Enginnering
$4.95
9
010091 Fstn, Lw 3/8 Grd8 by Allen Enginnering
$4.95
11
010102 Fstn, Nut Hex 3/8-16 Grd8 by Allen Enginnering
$2.99
12
010220 Elbow 1/4 X 1/4 90 Deg Street Br (P by Allen Enginnering
$22.41
14
012693 VALVE, 1/4 M-FM SHUT OFF by Allen Engineering
$39.60
15
012725 Isolators, Rubber Mounts by Allen Enginnering
$50.16
17
019429 HOSE, 5/16" FUEL LINE by Allen Engineering
$15.60
18
019430 Fstn, Clamp Size 4 Mini Hose by Allen Enginnering
$6.23
22
065875 MUFFLER LH FOR CH980 #62 068 17-S by Allen Engineering
$600.00
23
043394 TAPE, HIGH TEMP FOIL 54 FT X 3" WIDE by Allen Engineering
$13.20
31
053480 TANK WELDMENT, FUEL F/ 150B (EPA) by Allen Engineering
$2,282.40
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
