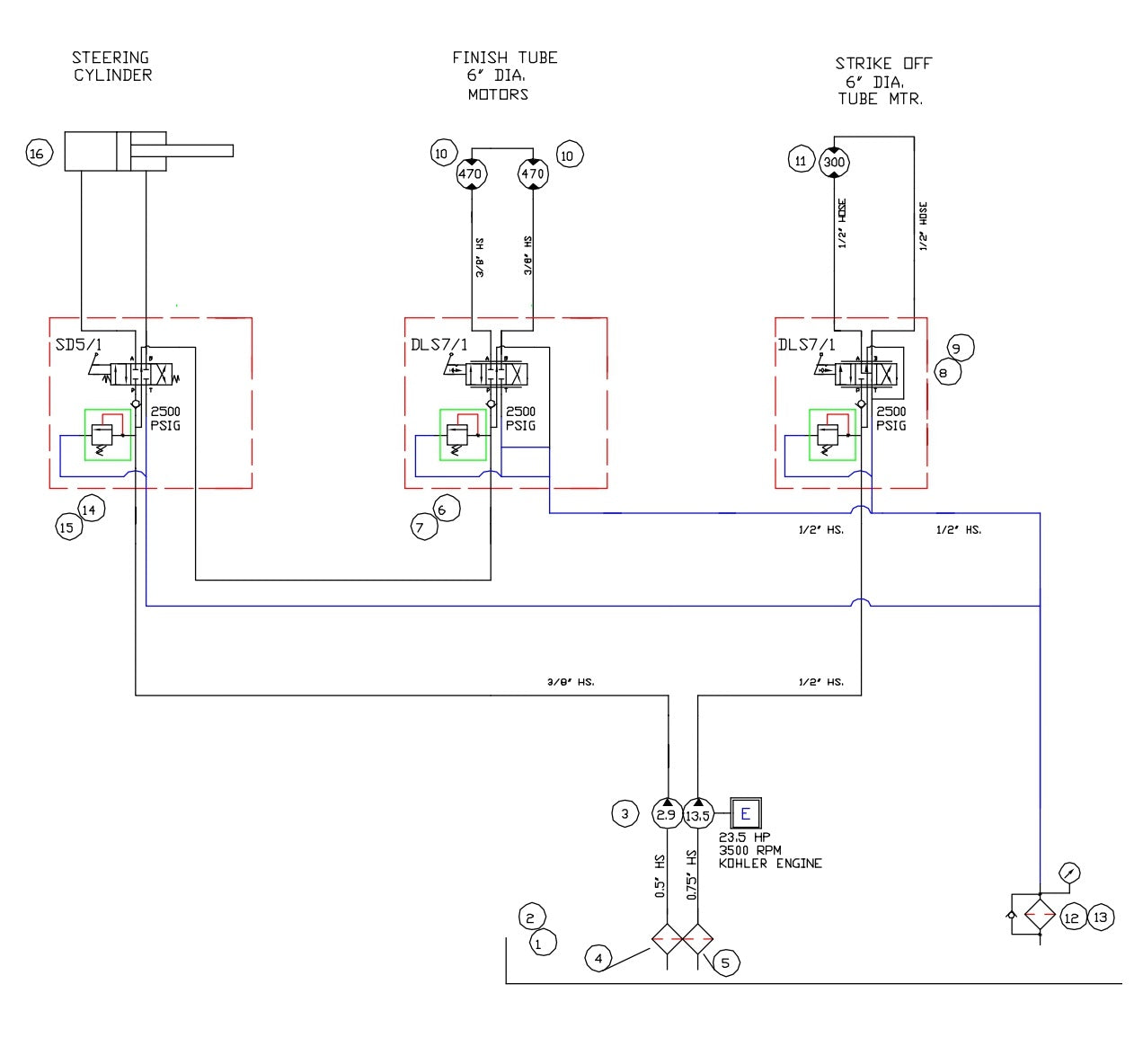

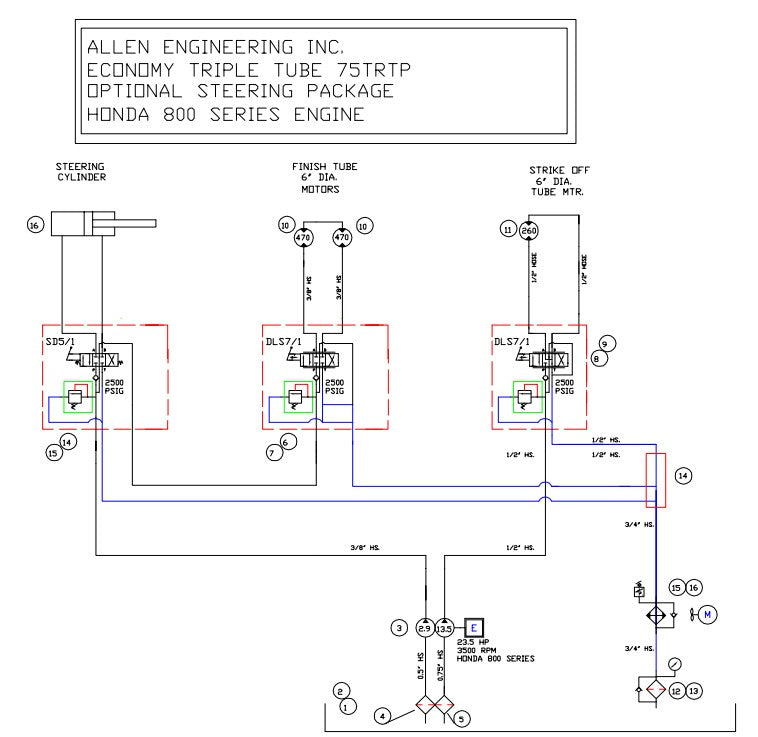

TRTP75 Hydraulic Schematic with Steering Leg Assembly Parts by Allen Engineering

TRTP75 Hydraulic Schematic with Steering Leg Assembly Parts by Allen Engineering

  • TRTP75 Hydraulic Schematic with Steering Leg Assembly Parts by Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
042844 Gauge, 5.00" Site Level by Allen Enginnering
$193.85
3
073425 PUMP, TRIPLE HYD F/ 75 TRTP by Allen Engineering
$2,842.80
4
040072 Strainer, Small Hyd. Tank by Allen Enginnering
$202.81
5
040073 Strainer, Large Hyd. Tank (Trtp) by Allen Enginnering
$166.95
7
040074 HANDLE, F/ VALVES (TRTP) by Allen Engineering
$33.60
9
040074 HANDLE, F/ VALVES (TRTP) by Allen Engineering
$33.60
8
040058 Valve, Stack 7C7Ftlfg/Rf-Sae (Trtp) by Allen Enginnering
$3,167.65
10
040067 Motor, 10" Trtp Stnd Hydr Travel by Allen Enginnering
$3,137.40
11
040068 Motor, Finish 10" Trtp (Strike Off by Allen Enginnering
$4,257.90
13
046241 Filter Gauge by Allen Enginnering
$132.22
-
038950 Element, Trtp 10" Hyd Kit Filter by Allen Enginnering
$177.04
16
066143 Temperture Switch 82-104 1/2Bsp by Allen Enginnering
$960.27
View full details
