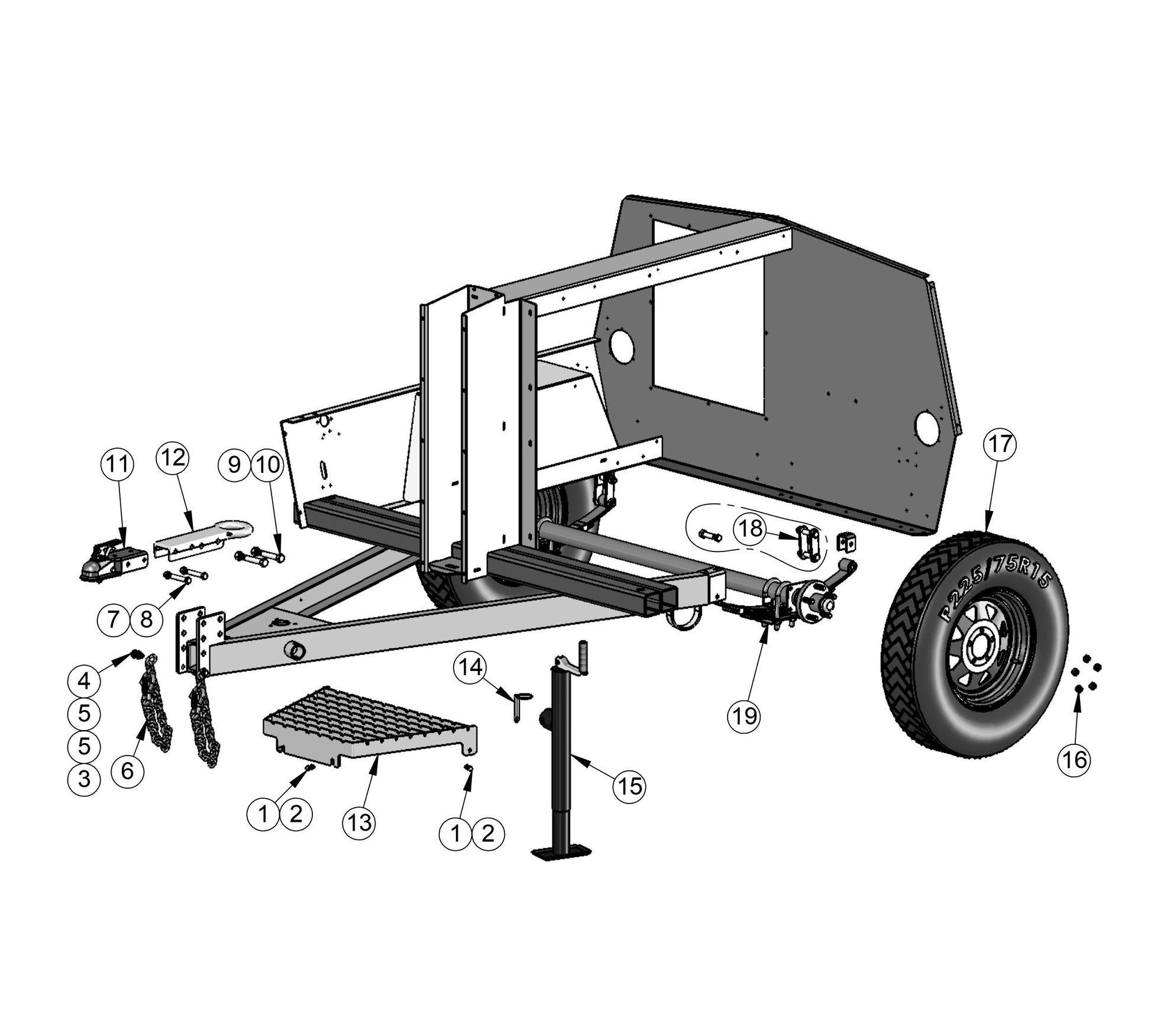

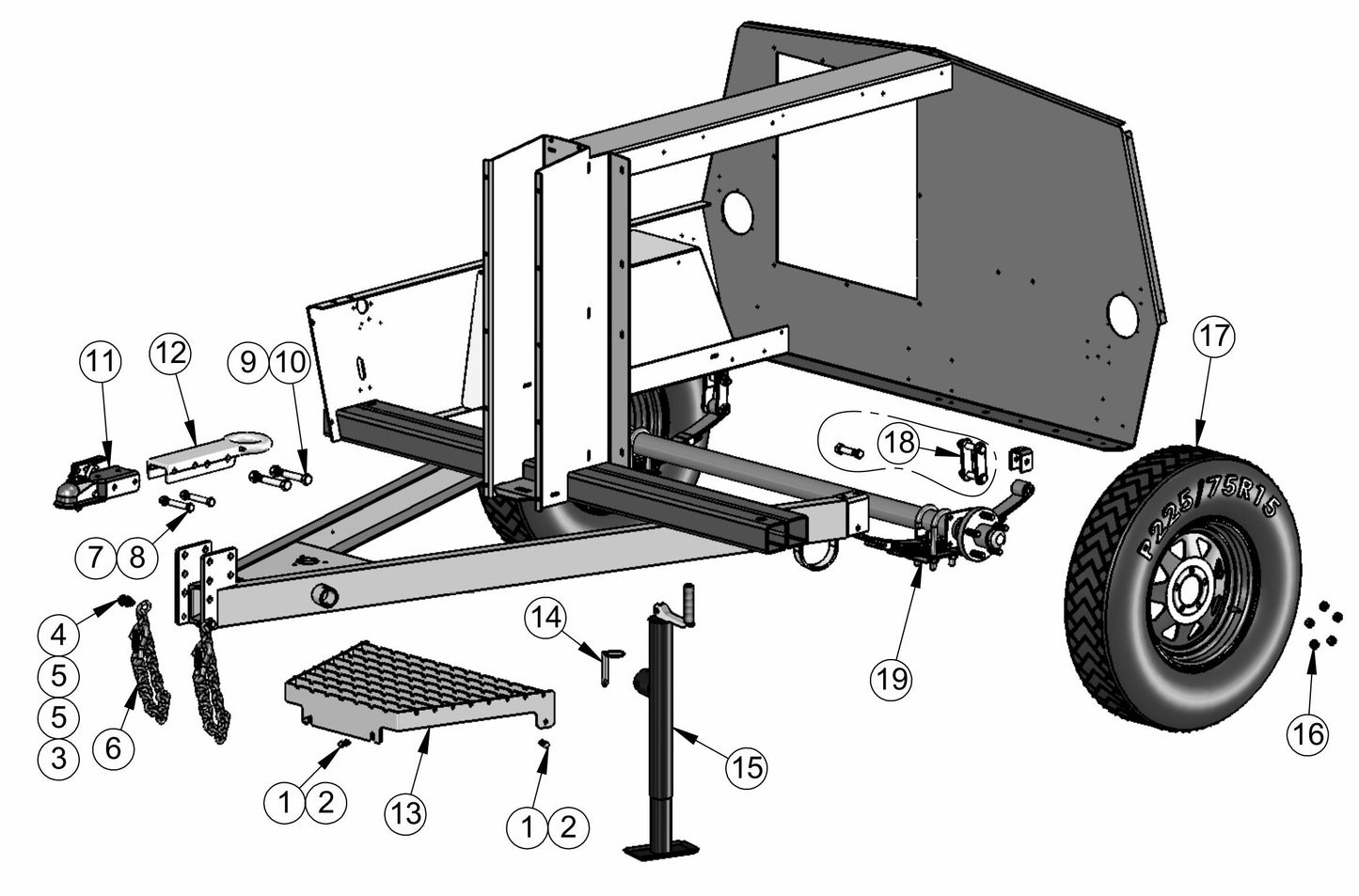

V-Series Maxi-Lite 15-20KW-Axle And Hitch Assembly Parts By Allmand

V-Series Maxi-Lite 15-20KW-Axle And Hitch Assembly Parts By Allmand

  • V-Series Maxi-Lite 15-20KW-Axle And Hitch Assembly Parts By Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
046050 Bolt Cs 5/16-18 X 1 Hex Gr5 Pl for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
2
044030 5/16-18 Hex Nut for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
3
044043 7/16-14 Nylock Nut for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
4
046160 7/16-14 X 1 1/2 Hex Bolt for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
5
047015 3/8 Flat Washer for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
6
049040 Safety Chain for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$23.14
7
044062 1/2-13 Lock Nut for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
8
046220 1/2-13 X 4" Hex Bolt for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
9
044061 5/8-11 Lock Nut for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
10
046250 5/8-11 X 4 1/2 Hex Bolt for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$7.28
11
712021 2" Ball Sae Class 2 for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$125.03
12
712540-15 Pintle Hitch for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$187.06
13
101847P Platform Step for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$354.42
14
330013 Jack Lock Pin for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$49.62
15
680879 Top Crank Jack, Tube Mount for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$189.68
16
032048 1/2-13 Lug Nut for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$4.49
17
680124 Assy, Wheel & Tire, 15" for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
Call for Price call for price call for price
18
032025 Axle Mounting Hardware Kit for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$131.51
19
352021 Axle for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$496.55
19
352021 Axle for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$496.55
NS
105213 Hub With Races for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$151.33
NS
105212 Bearing Set for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$47.30
NS
330005D Grease Cap for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$6.36
NS
650169 Coupler Latch Kit for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$87.52
