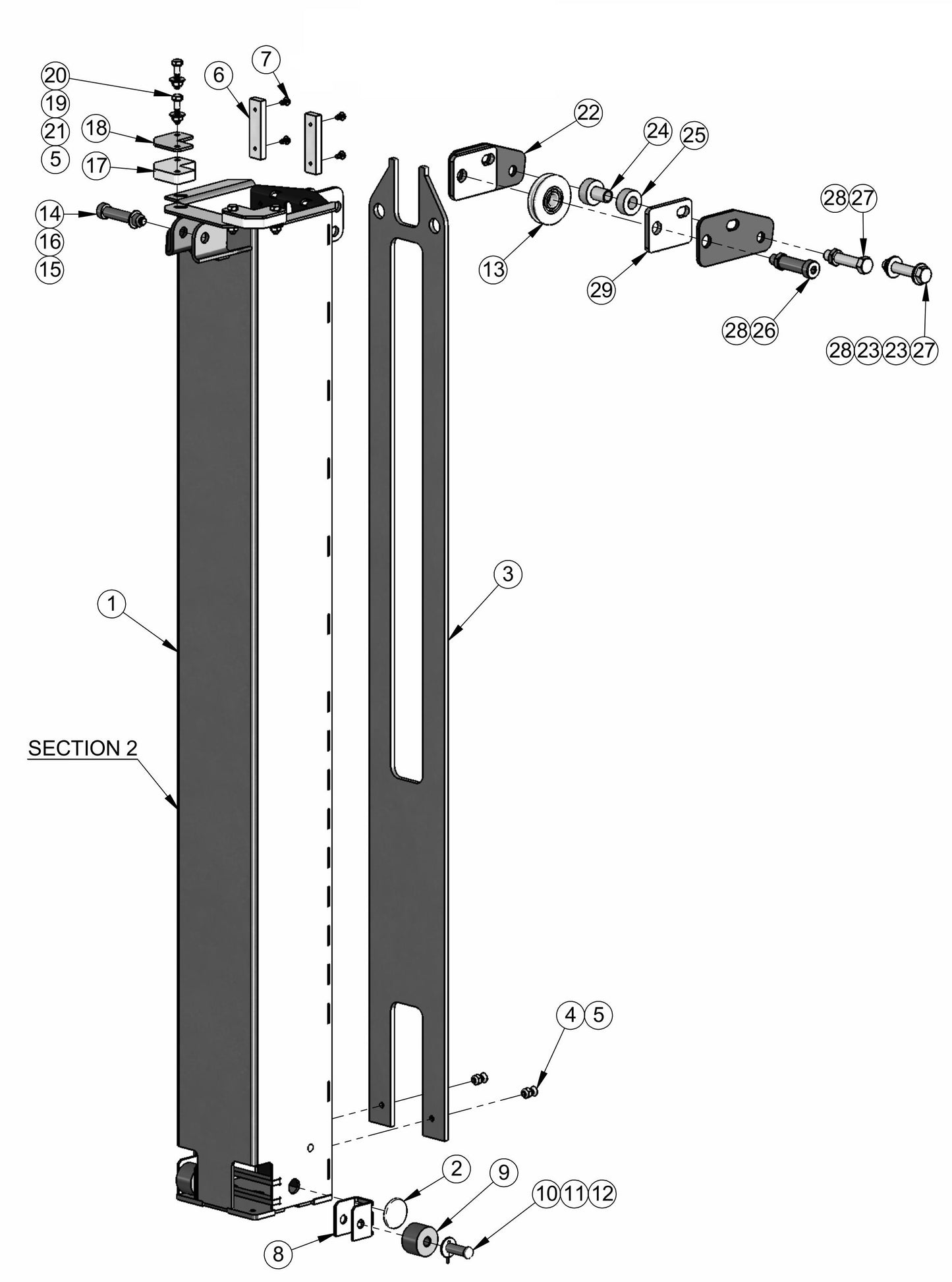

V-Series Maxi-Lite 15-20KW-Hydraulic Tower Sections-2 Assembly Parts by Allmand

Name: V-Series Maxi-Lite 15-20KW-Hydraulic Tower Sections-2 Assembly Parts by Allmand
Brand: danse-usa
Availability: OutOfStock

1 1

100% genuine product

Authorised dealer

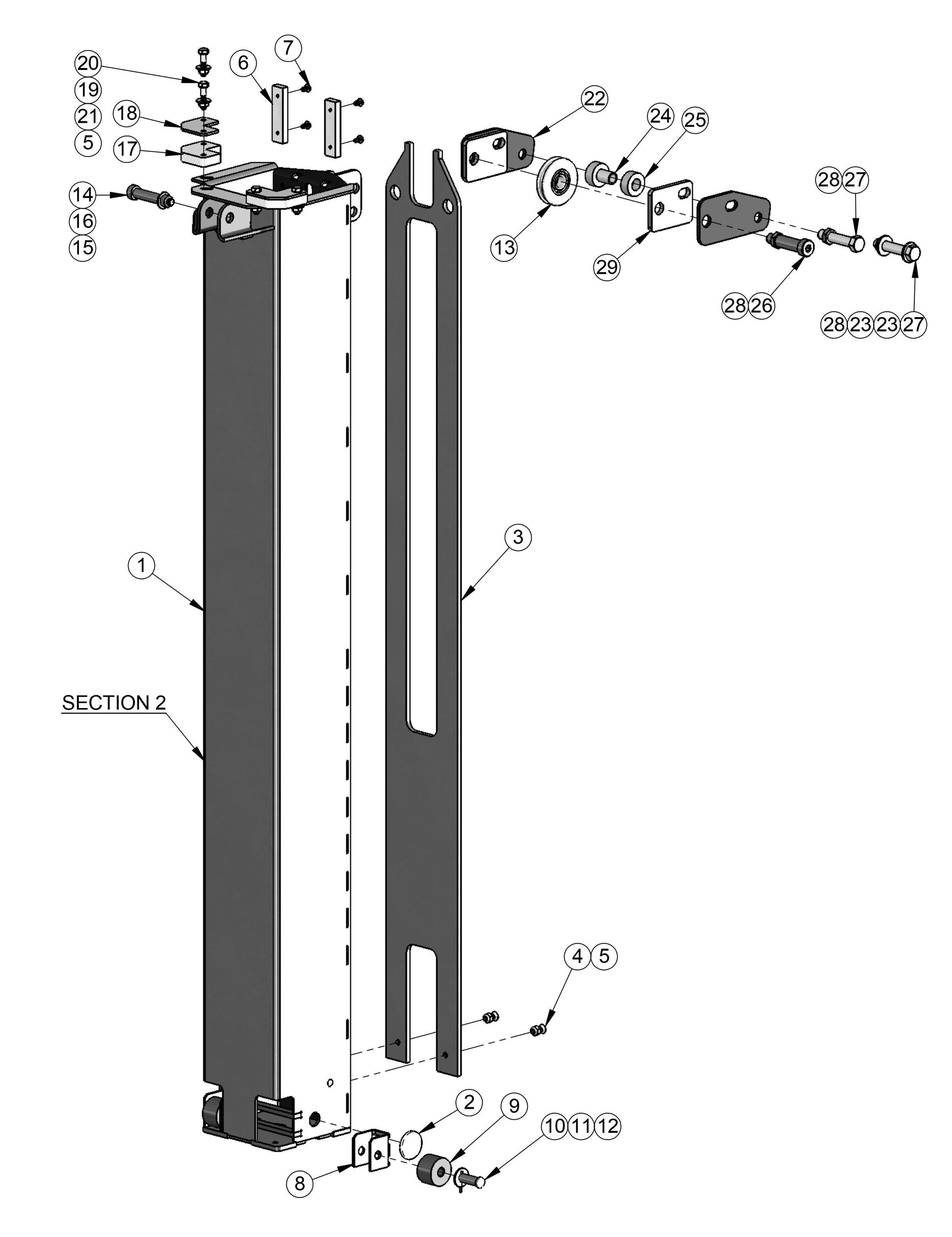

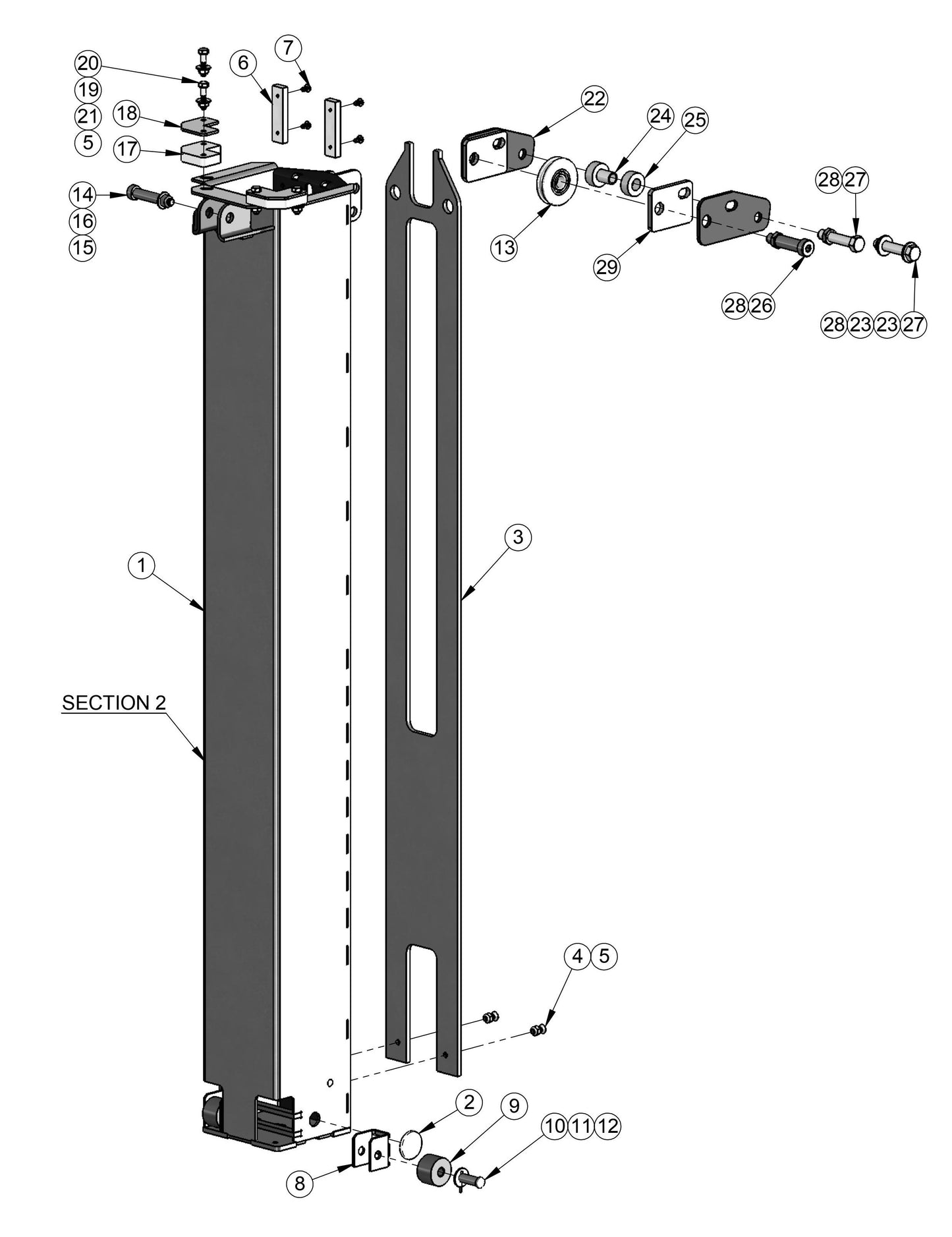

View all diagrams for this Model

Ref.	Product details	Price	Action
1	101035P Section 2 for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	$990.56
2	101626 Friction Plug for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	$18.63
3	100204P Sec 2 Roller Plate for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	$314.21
4	041047 1/4-20 X 3/4 Ph Csk for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	$4.49
5	044023 1/4-20 Nylock Nut for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	$2.99
6	100062 3/8 Uhmw Spacer for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	$24.04
7	041023 #10 X 3/8 Pls for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	Call for Price	call for price call for price
8	101374P Bearing Cage for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	Call for Price	call for price call for price
9	101380 Composite Roller for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	$96.84
10	101377 Clevis Pin 7/16 X 1 1/2 for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	Call for Price	call for price call for price
11	047015 3/8 Flat Washer for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	$2.99
12	045044 Cotter Pin for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	$4.49
13	100160 2 1/2 Pulley for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	$67.50
14	101378 1/2 X 2 Sh Bolt for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	$4.88
15	044038 3/8 - 16 Nc Nylon Insert Nut for Maxi-Lite Laydown 15-20Kw Light Towers by Allmand	$2.99
16	047010 5/16 Flat Washer for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	Call for Price	call for price call for price
17	100088 Block, Corner Friction for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	$27.33
18	100089P Corner Block Cover for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	Call for Price	call for price call for price
19	043060 3/8 Int Star Washer for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	$2.99
20	046020 1/4-20 X 1 1/4 Gr5 Hex Bolt for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	$2.99
21	047005 1/4 Flat Washer for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	$2.99
22	102270P Cable Bracket for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	$187.53
23	047025 1/2" Flat Washer for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	$2.99
24	102273 Long Spacer for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	Call for Price	call for price call for price
25	102271 Plastic Spacer for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	Call for Price	call for price call for price
26	102365 5/8 X 1 Shoulder Bolt for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	Call for Price	call for price call for price
27	046205 1/2-13 X 2 1/2 Hex Bolt Gr5 Pl for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	Call for Price	call for price call for price
28	100643 1/2-13 Nylock for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	Call for Price	call for price call for price
29	102269P Spacer Bracket for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand	Call for Price	call for price call for price

Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.

View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
