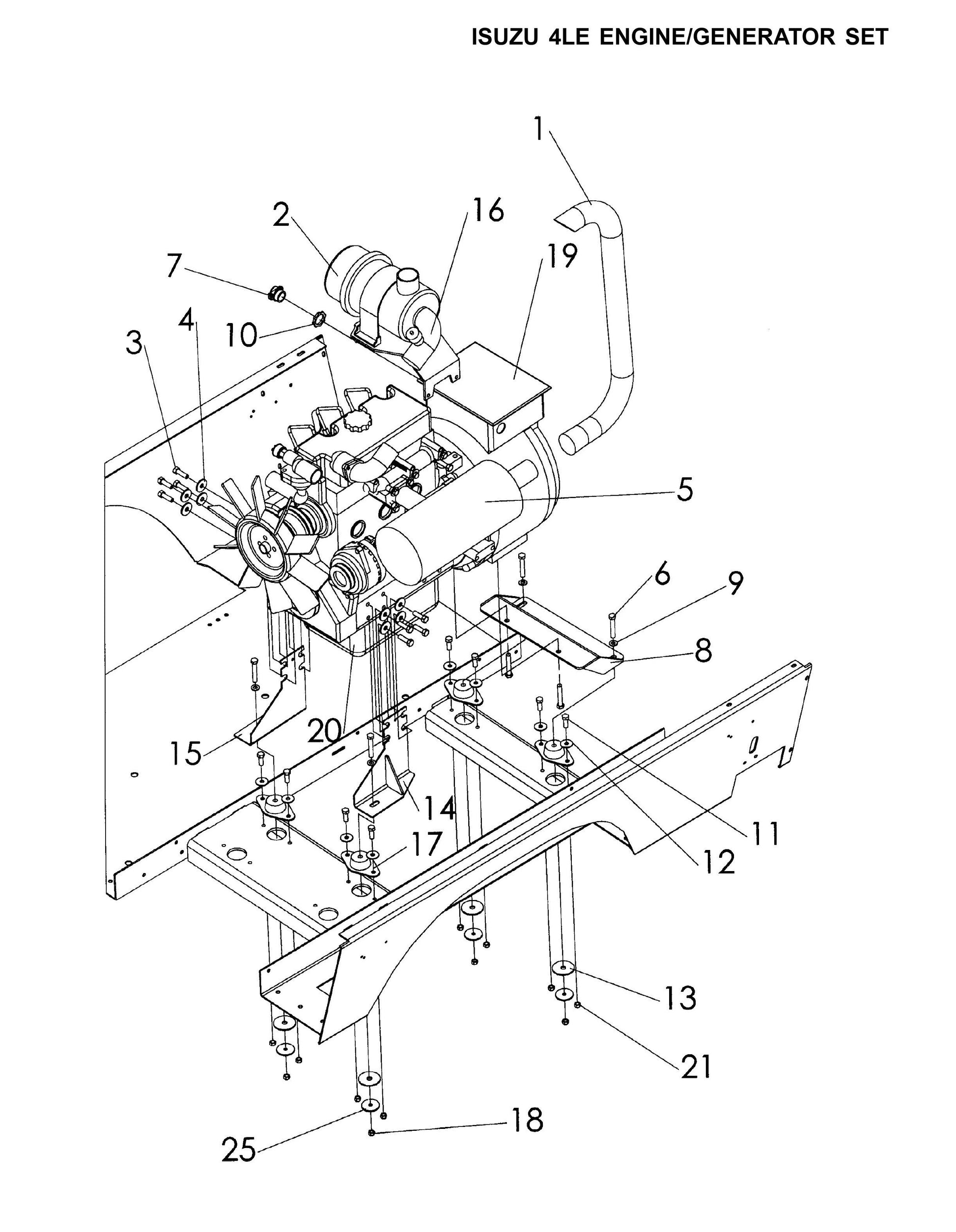

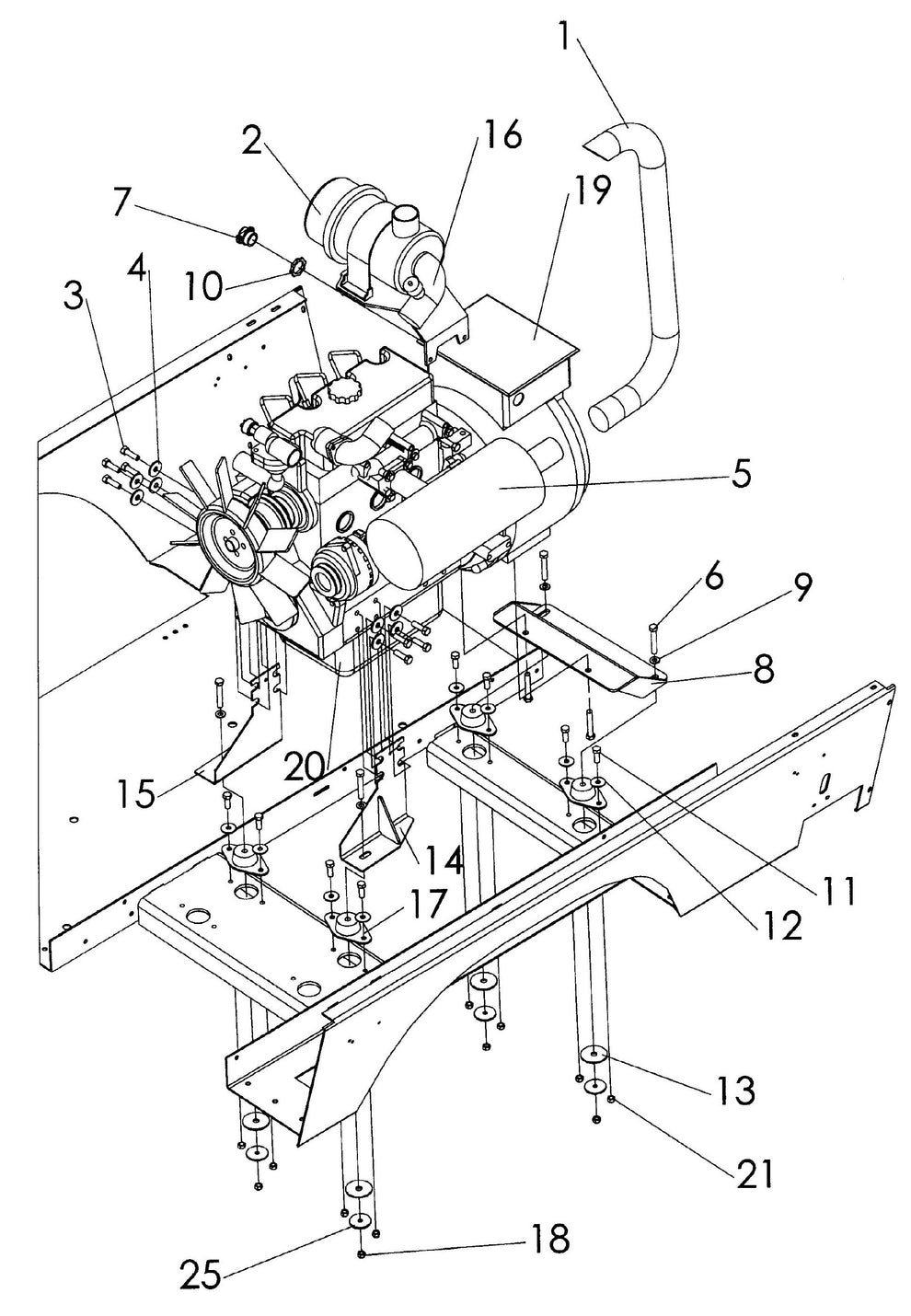

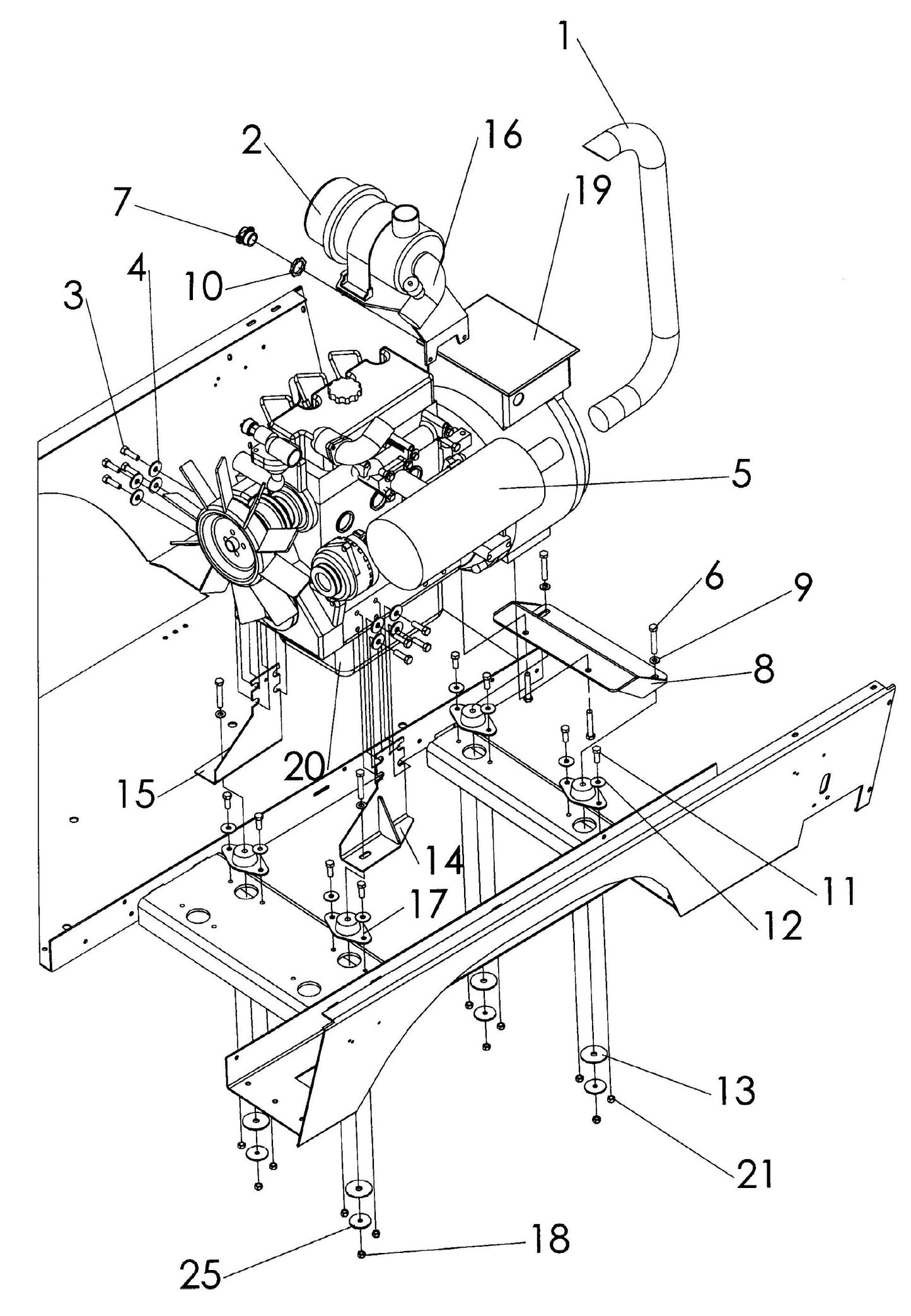

V-Series Maxi-Lite 15-20KW-Isuzu 4LE Engine/Generator Set Assembly Parts By Allmand

V-Series Maxi-Lite 15-20KW-Isuzu 4LE Engine/Generator Set Assembly Parts By Allmand

  • V-Series Maxi-Lite 15-20KW-Isuzu 4LE Engine/Generator Set Assembly Parts By Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
680298 Exhaust Pipe, Isuzu for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$94.50
3
042038 10Mm X 20Mm X 1.25 Grade 8.8 Bolt for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
4
047016 3/8 Sae Flat Washer for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
5
680427 Muffler, Isuzu for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$647.26
-
650234 Exhaust Manifold Mount Gasket for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$84.89
6
046132 3/8 - 16 Nc X 2 1/4 Grade 5 Bolt for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$4.49
7
022025 2-Screw Romex Clamp 3/4 for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
Call for Price call for price call for price
8
680254 Generator Mount Plate, Isuzu for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$188.03
-
680504 Generator Mount Plate, Isuzu/Newage 3 Phase for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$210.37
-
680531 Generator Mount Plate, Isuzu/Marathon 3 Phase for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$208.98
9
047015 3/8 Flat Washer for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
10
022036 3/4" Steel Lock Nut for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
11
046050 5/16 - 18 Nc X 1 Grade 5 Bolt for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
12
047010 5/16 Flat Washer for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
Call for Price call for price call for price
13
640565 Engine Mount Washer for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$13.39
14
680301 Engine Mount, Right for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$62.06
15
680302 Engine Mount, Left for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$62.06
16
650272 Air Intake Hose for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$85.76
17
650259 Rubber Engine Mounts for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$60.49
18
044038 3/8 - 16 Nc Nylon Insert Nut for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
19
350357 Generator, Marathon 15Kw for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$4,938.12
-
350356 Generator, Marathon 20Kw for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$5,014.55
-
350358 Generator, Newage 20 Kw 3 Phase for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$4,270.23
-
680867 Generator, Marathon 20 Kw 3 Phase for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$5,014.55
20
680275 Engine, Isuzu 4Le for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$11,458.80
21
044033 5/16 - 18 Nc Nylon Insert Nut for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
22
650260 2” O.D. X .451 I.D. Washer for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
Call for Price call for price call for price
NS
680331 Air Cleaner Element (Primary) for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$132.38
NS
680332 Air Cleaner Element (Secondary) for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$86.36
NS
650221 Oil Filter for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$89.90
NS
650220 Fuel Filter for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
Call for Price call for price call for price
