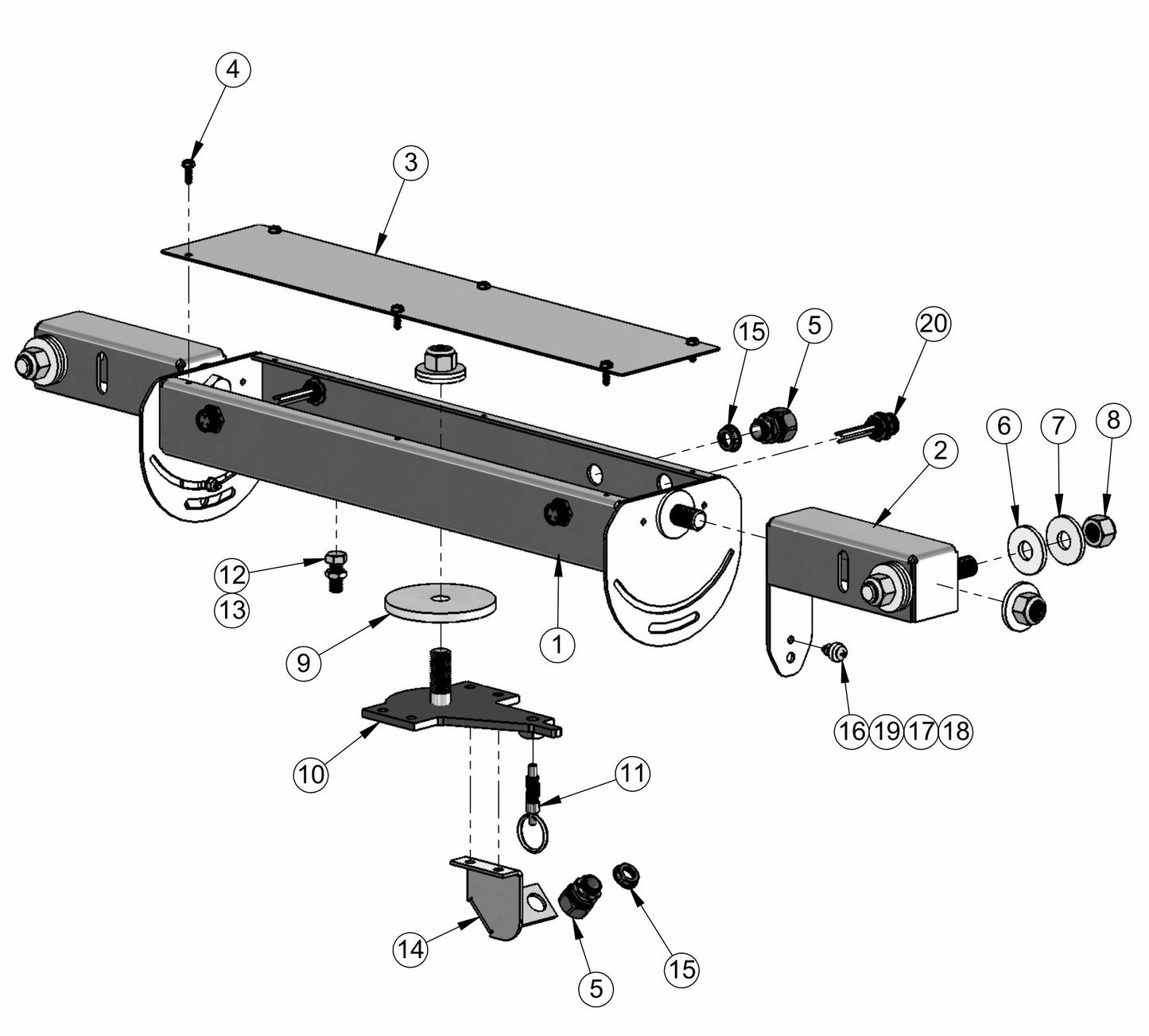

V-Series Maxi-Lite 15-20KW-Light Bar Assembly Parts By Allmand

V-Series Maxi-Lite 15-20KW-Light Bar Assembly Parts By Allmand

  • V-Series Maxi-Lite 15-20KW-Light Bar Assembly Parts By Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer

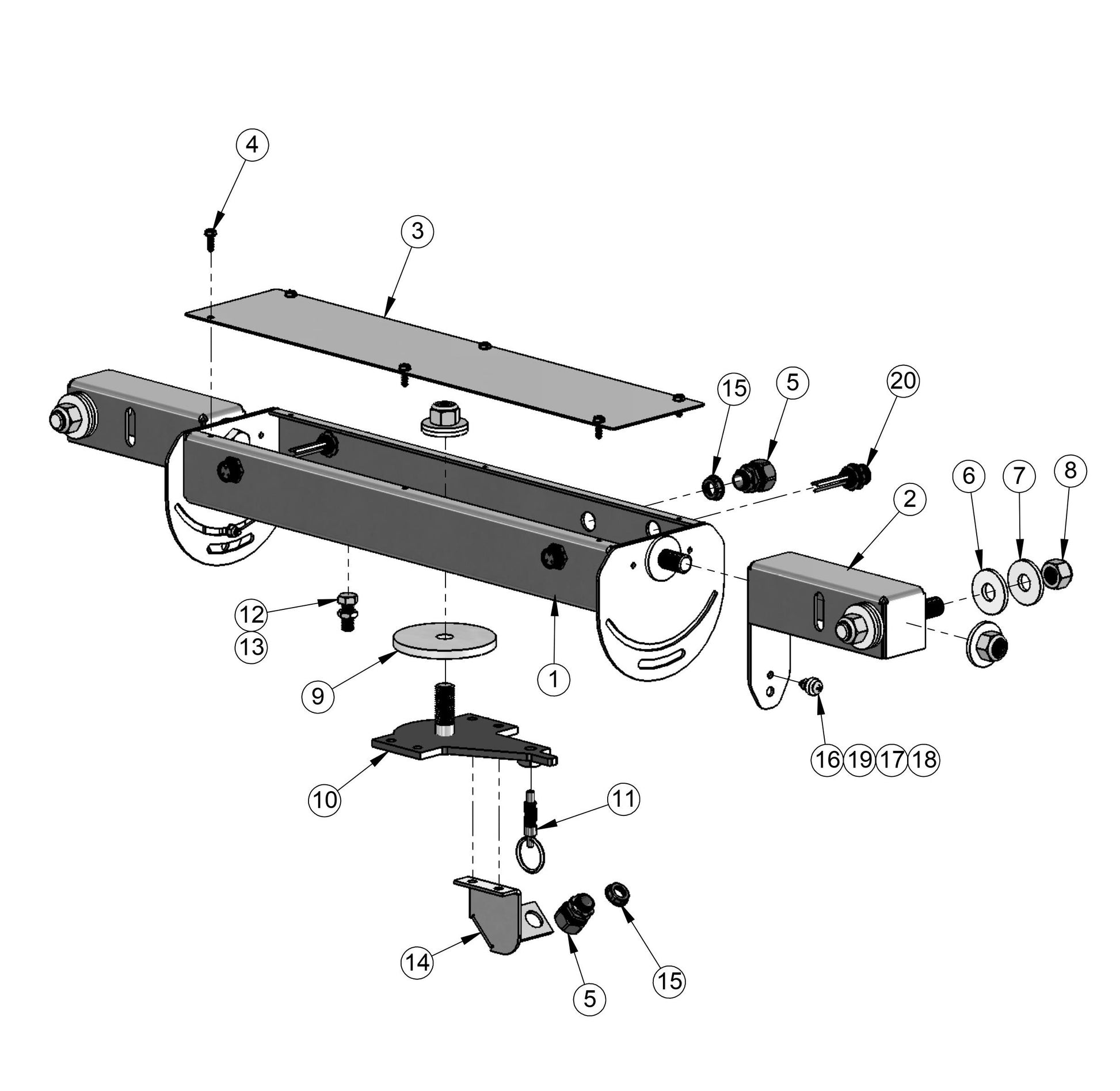

Ref. Product details Price Qty Action
1
101930P Light Bar for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$503.87
2
101931P Lamp Mount for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$148.44
3
101929P Cover for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$204.41
4
041070 1/4 - 20 Nc X 3/4 Machine Screw for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
5
330031 1/2 Cord Grip for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
Call for Price call for price call for price
6
650550 .785 X 2 Hdpe Washer for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$4.88
7
047035 3/4 Flat Washer Pltd for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
8
044121 3/4-10 Nylock Ss for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
9
100147 Uhmw Bearing for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$44.93
10
100143P Rotation Mount for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
Call for Price call for price call for price
11
100148 Latch Assy for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$45.00
12
046180 1/2-13 X 1 1/4 Hhcs Gr 5 for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
13
100643 1/2-13 Nylock for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
Call for Price call for price call for price
14
100154P Tower Cord Bracket for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$80.90
15
022415 Bushing Threaded for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$5.78
16
041080 1/4 - 20 X 1 Thcs for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
17
047070 1/4 Fw Ss for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
18
044023 1/4-20 Nylock Nut for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
19
047019 3/4 Od X .385 Id Nylon Bushing for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
20
310414 Female Qd Connector for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$126.00
