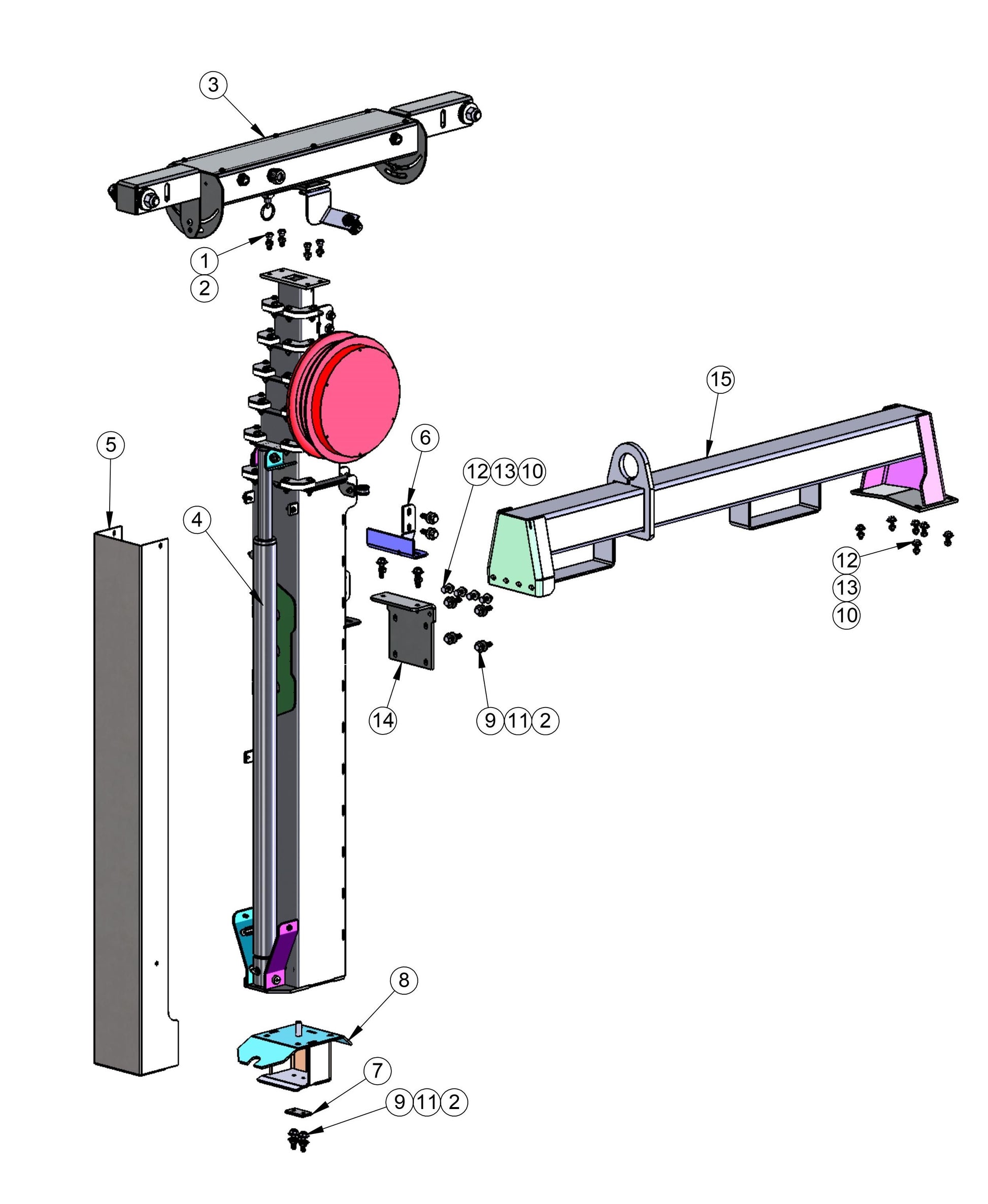

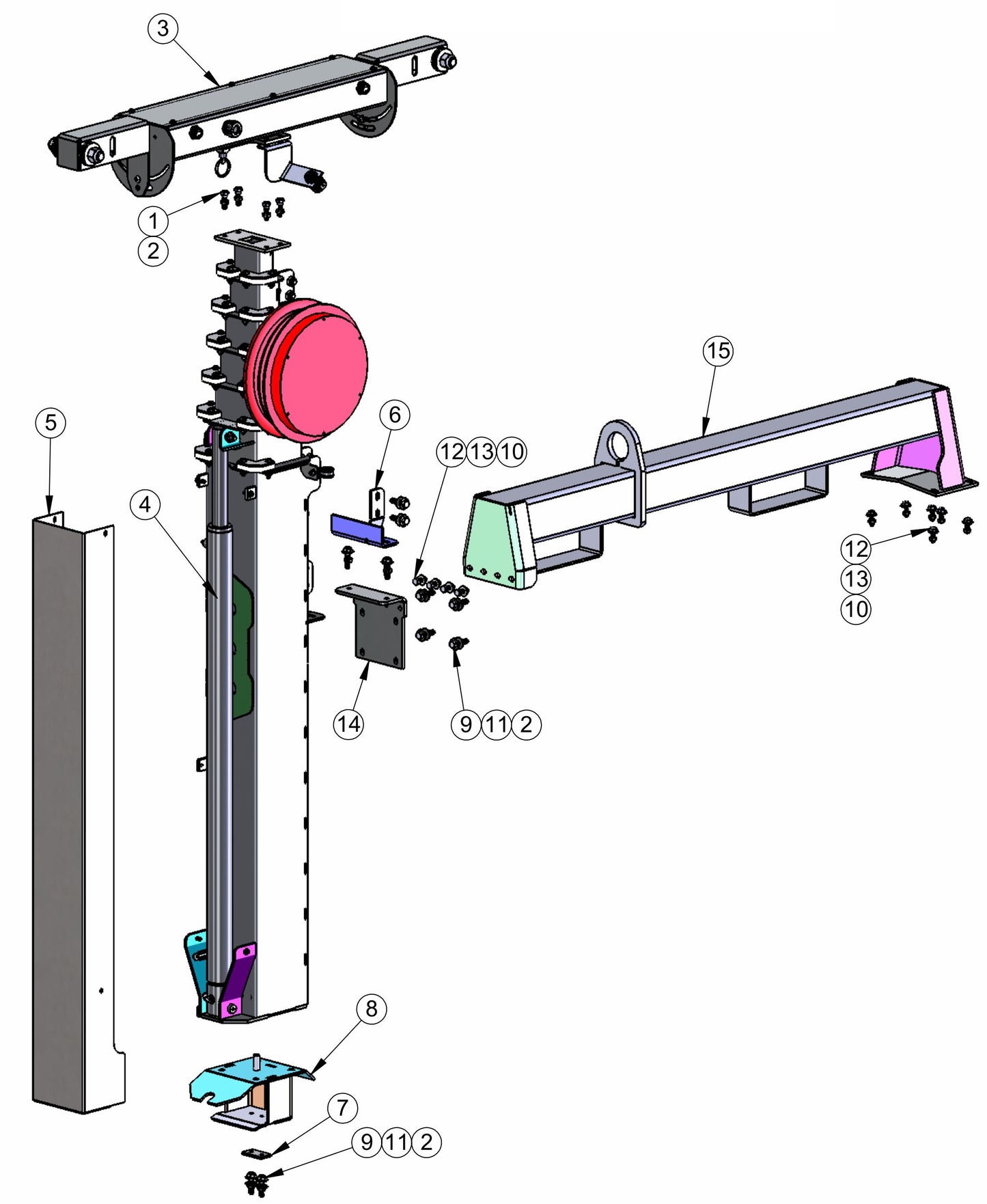

V-Series Maxi-Lite 15-20KW-Tower And Lift Arm Assembly Parts By Allmand

V-Series Maxi-Lite 15-20KW-Tower And Lift Arm Assembly Parts By Allmand

  • V-Series Maxi-Lite 15-20KW-Tower And Lift Arm Assembly Parts By Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
046115 3/8-16 X 1 1/4 Hhcs for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
2
044036 3/8 - 16 Nc Keps Nut for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
3
101922 Light Bar for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$874.55
4
102086 Hydraulic Tower for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$5,990.63
5
100245P Hydraulic Cylinder Cover for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$200.92
6
101410P Tower Mount for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$157.24
7
101629P Cover Plate for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$70.38
8
101406P Tower Platform for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$230.27
9
046120 3/8-16 X 1 1/2 Hex Bolt for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
10
044030 5/16-18 Hex Nut for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
11
047015 3/8 Flat Washer for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
12
046050 Bolt Cs 5/16-18 X 1 Hex Gr5 Pl for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$2.99
13
047010 5/16 Flat Washer for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
Call for Price call for price call for price
14
100244P Angle Mounting Brkt for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$127.84
15
101917P Lift Bar for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$590.40
