V-Series Maxi-Lite 7.5-8KW Ballast Panel Parts for Light Tower Parts By Allmand

V-Series Maxi-Lite 7.5-8KW Ballast Panel Parts for Light Tower Parts By Allmand

  • V-Series Maxi-Lite 7.5-8KW-Ballast Panel Parts By Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
046042 1/4-20 X 4 1/2 Hex Bolt for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.49
2
044023 1/4-20 Nylock Nut for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
3
101068 Deep Sea Control Relay for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$67.23
4
041078 1/4-20 X 1/2 Ph Truss Screw for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
5
044021 1/4-20 Keps Nut for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
6
101731 Relay Socket for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
7
101594 Bracket,Panel,Ballast, for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$141.62
8
064060 Thread Protector Cap for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
9
330491 30A 250V Twistlock Receptacle for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$129.94
10
022024 #12 Cush Clamp 1/4 Hole for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
11
041075 Screw Ms 5/16-18 X 3/4 for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.49
12
044004 6-32 Keps Nut for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
13
041011 6-32 X 1/4 Phhms for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.49
14
650139 30A Breaker for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$29.67
15
330432 Receptacle Cover for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$41.52
16
330499 20 A Gfci Receptical for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$142.88
17
043065 3/8 Split Lock Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
18
041053 1/4-20 X 1 3/4" Phillips Head Truss Screw for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
19
064025 1 1/16" Plastic Plug for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
20
100328 Ballast 1250W 60 Hz With 28Uf Capacitor(Hd) for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$286.79
21
047009 1/4 Sae Ss Fw for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
22
100329 Capacitor 28 Uf (Hd 1250W) for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$259.50
23
100392P Clamp Capacitor (Hps) for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$154.09
24
046037 1/4-20 X 2 3/4" Hex Bolt for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
25
022025 2-Screw Romex Clamp, 3/4" for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.49
26
022349 1 1/4 X 3/4 for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
27
041080 1/4-20 X 1" Truss Screw for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
28
046055 5/16-18 X 1 1/4 Hhcs for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
29
044031 5/16 -18 Kepts Nut for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
30
047010 5/16 Flat Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
31
030057 Trim Lock 5" for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
32
680119 Ballast Panel for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$337.50
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

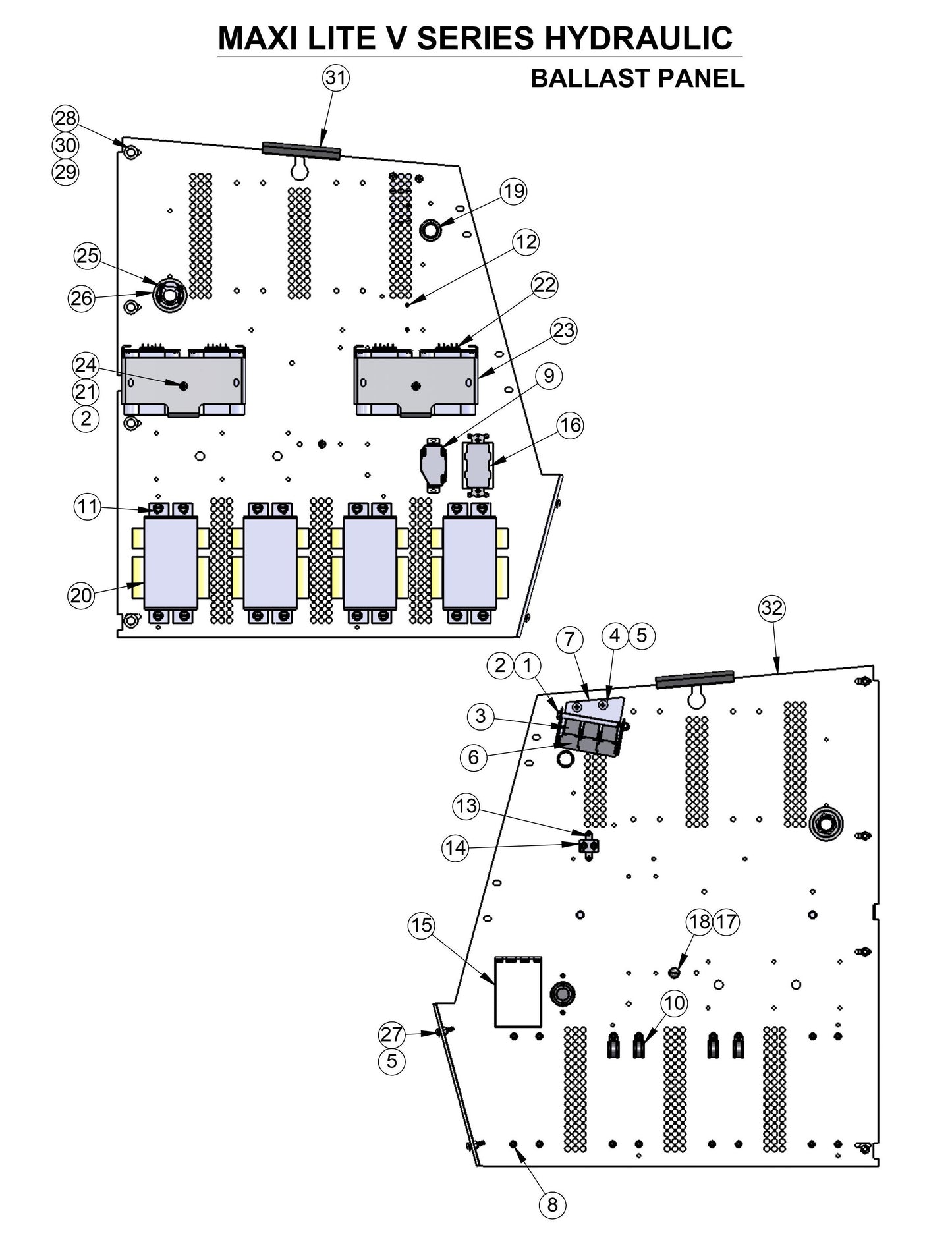

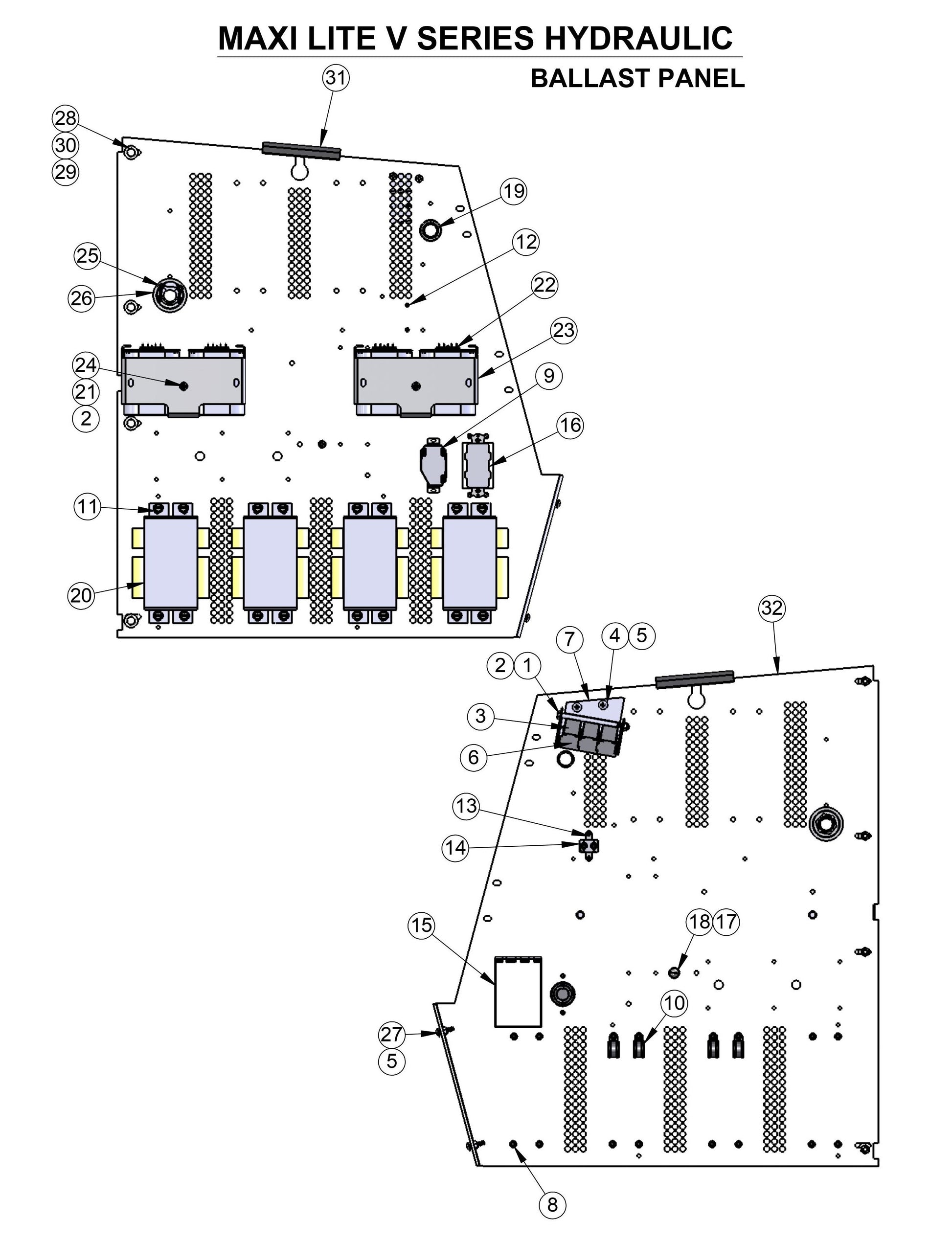

How do I use this diagram?
