V-Series Maxi-Lite 7.5-8KW Hydraulic Tower Section 1 Parts for Light Tower Parts By Allmand

V-Series Maxi-Lite 7.5-8KW Hydraulic Tower Section 1 Parts for Light Tower Parts By Allmand

  • V-Series Maxi-Lite 7.5-8KW-Hydraulic Tower Section 1 Parts By Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
101034P Section 1 for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$1,276.40
2
100203 Roller for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$96.47
3
100202 5/8 X 6 Ss Sh Bolt for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$78.25
4
044096 1/2-20 Hex Nut Pl for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.49
5
100088 Corner Friction Block for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$27.33
6
100089P Corner Block Cover for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
7
043060 3/8 Int Star Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
8
046025 1/4-20 X 1 1/2 Hex Bolt for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.49
9
046020 1/4-20 X 1 1/4 Gr5 Hex Bolt for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
10
047005 1/4 Flat Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
11
044023 1/4-20 Nylock Nut for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
12
310212 #10 Cushion Clamp for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.88
13
041050 1/4-20 X 3/4 Truss Bolt for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
14
101379 1/2 X 2.75 Sh Bolt for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$7.28
15
047010 5/16 Flat Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
16
044038 3/8-16 Nylock Nut Pl for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
17
041070 1/4-20 X 3/4 Smshh Tp F for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
18
046205 1/2-13 X 2 1/2 Hex Bolt Gr5 Pl for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
19
102273 Long Spacer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
20
102271 Plastic Spacer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
21
047025 1/2" Flat Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
22
100643 1/2-13 Nylock for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.49
23
102270P Cable Bracket for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$187.53
24
102269P Spacer Bracket for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

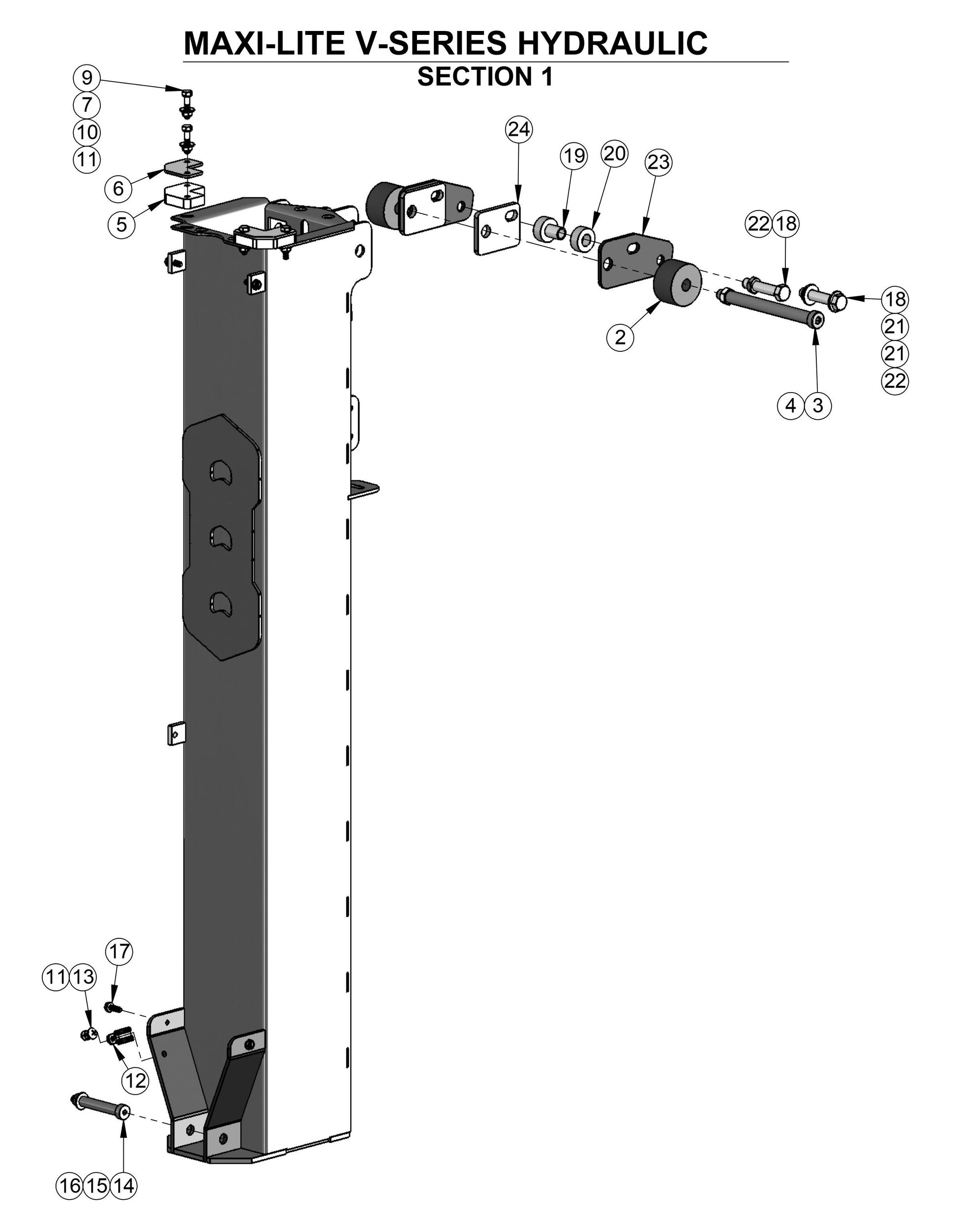

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
