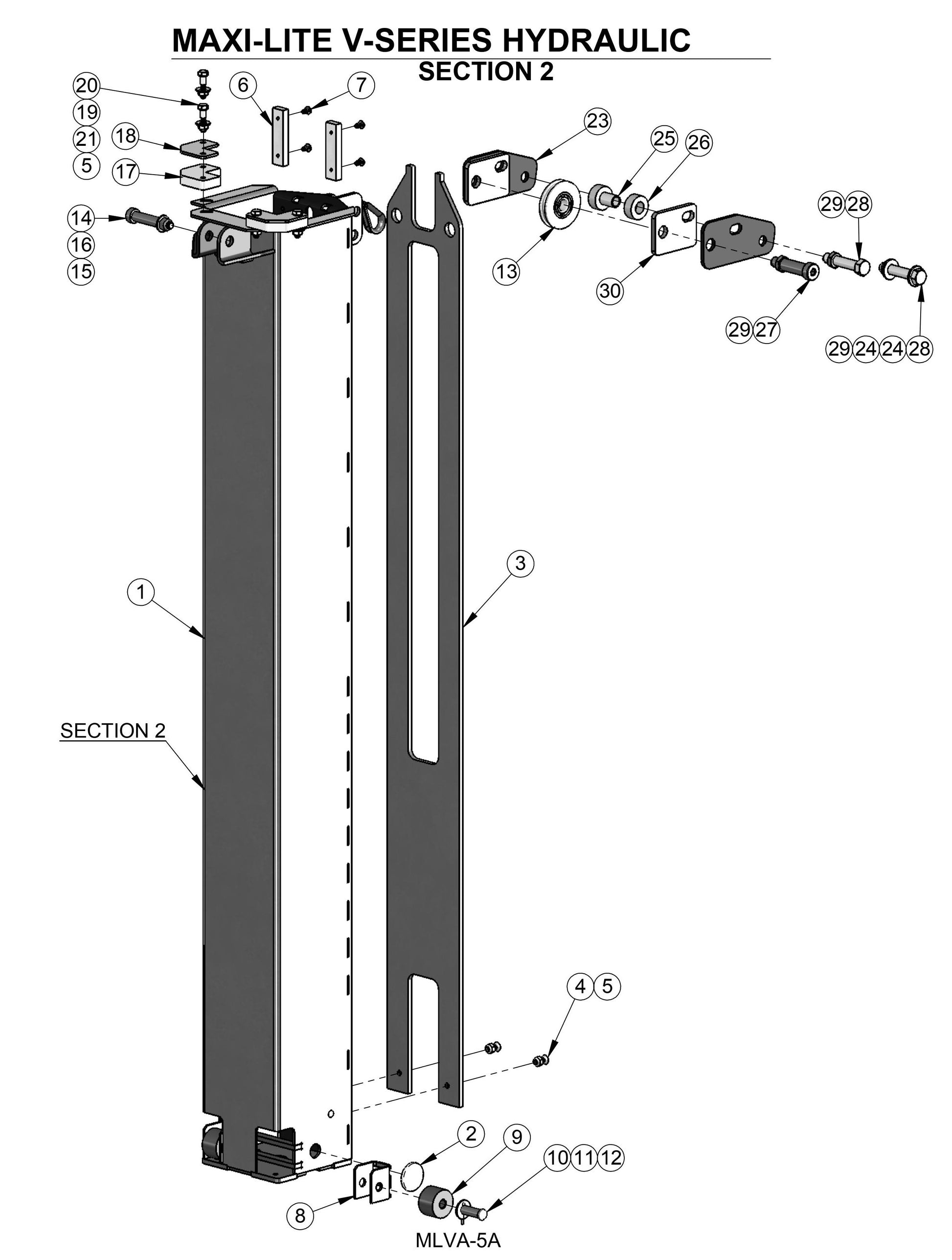

V-Series Maxi-Lite 7.5-8KW Hydraulic Tower Section 2 Parts for Light Tower Parts By Allmand

V-Series Maxi-Lite 7.5-8KW Hydraulic Tower Section 2 Parts for Light Tower Parts By Allmand

  • V-Series Maxi-Lite 7.5-8KW-Hydraulic Tower Section 2 Parts By Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
101035P Section 2 for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$990.56
2
101626 Friction Plug for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$18.63
3
100204P Sec 2 Roller Plate for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$314.21
4
041047 1/4-20 X 3/4 Ph Csk for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.49
5
044023 1/4-20 Nylock Nut for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
6
100062 3/8 Uhmw Spacer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$24.04
7
041023 #10 X 3/8 Pls for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
8
101374P Bearing Cage for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
9
101380 Composite Roller for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$96.84
10
101377 Clevis Pin 7/16 X 1 1/2 for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
11
047015 3/8 Flat Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
12
045044 Cotter Pin for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.49
13
100160 2 1/2 Pulley for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$67.50
14
101378 1/2 X 2 Sh Bolt for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.88
15
044038 3/8-16 Nylock Nut Pl for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
16
047010 5/16 Flat Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
17
100088 Corner Friction Block for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$27.33
18
100089P Corner Block Cover for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
19
043060 3/8 Int Star Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
20
046020 1/4-20 X 1 1/4 Gr5 Hex Bolt for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
21
047005 1/4 Flat Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
22
045040 1/4 Cable Thimble for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.88
23
102270P Cable Bracket for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$187.53
24
047025 1/2" Flat Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
25
102273 Long Spacer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
26
102271 Plastic Spacer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
27
102365 5/8 X 1 Shoulder Bolt for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
28
046205 1/2-13 X 2 1/2 Hex Bolt Gr5 Pl for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
29
100643 1/2-13 Nylock for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.49
30
102269P Spacer Bracket for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
