V-Series Maxi-Lite 7.5-8KW Kubota 1105 Parts for Light Tower Parts By Allmand

V-Series Maxi-Lite 7.5-8KW Kubota 1105 Parts for Light Tower Parts By Allmand

  • V-Series Maxi-Lite 7.5-8KW-Kubota 1105 Parts By Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
100991 Kubota D1105 50Hz With Deepsea Panel, for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
2
680546 Maxi Kub 905 Power Unit for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$229.01
3
680544P Lh Engine Foot for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$229.01
4
047016 3/8 Sae Flat Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
5
042038 10Mm X 1.25 X20Mm Gr 8.8 Hex Bolt for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
6
352135 Exhaust Gasket Kubota for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$46.10
7
352139 Kubota Box Muffler for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$1,071.48
8
352114 4 3/8 Stud for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$17.43
9
352113 3 1/2 Stud for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$17.43
10
650030 Box Muffler Manifold Nut for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$5.78
11
101070 Oil Pressure Switch (Deep Sea) for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$90.09
12
101069 Tempature Switch (Deep Sea) for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$257.92
13
352126 Heat Shield for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$254.27
14
042018 6Mm X 10Mm Hex Bolt Gr 8.8 for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
15
352140 Exhuast Pipe for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$107.34
16
713086 Clamp 1 3/8" Muffler for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$10.88
17
650262 Air Cleaner Radial Seal 4.25 for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$157.93
18
042027 8Mm X 1.25 X 16Mm Gr 10.9 Hex Bolt for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
19
022025 2-Screw Romex Clamp, 3/4" for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.49
20
043065 3/8 Split Lock Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
21
046115 3/8-16 X 1 1/4 Hhcs for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
22
101075 8Kw 60Hz Marathon Generator for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4,066.50
23
047015 3/8 Flat Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
24
046055 5/16-18 X 1 1/4 Hhcs for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
25
044031 5/16 -18 Kepts Nut for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
26
680128P Generator Mount for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$132.90
NS
640158 25Uf Capacitor Marathon Gen. for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$269.53
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

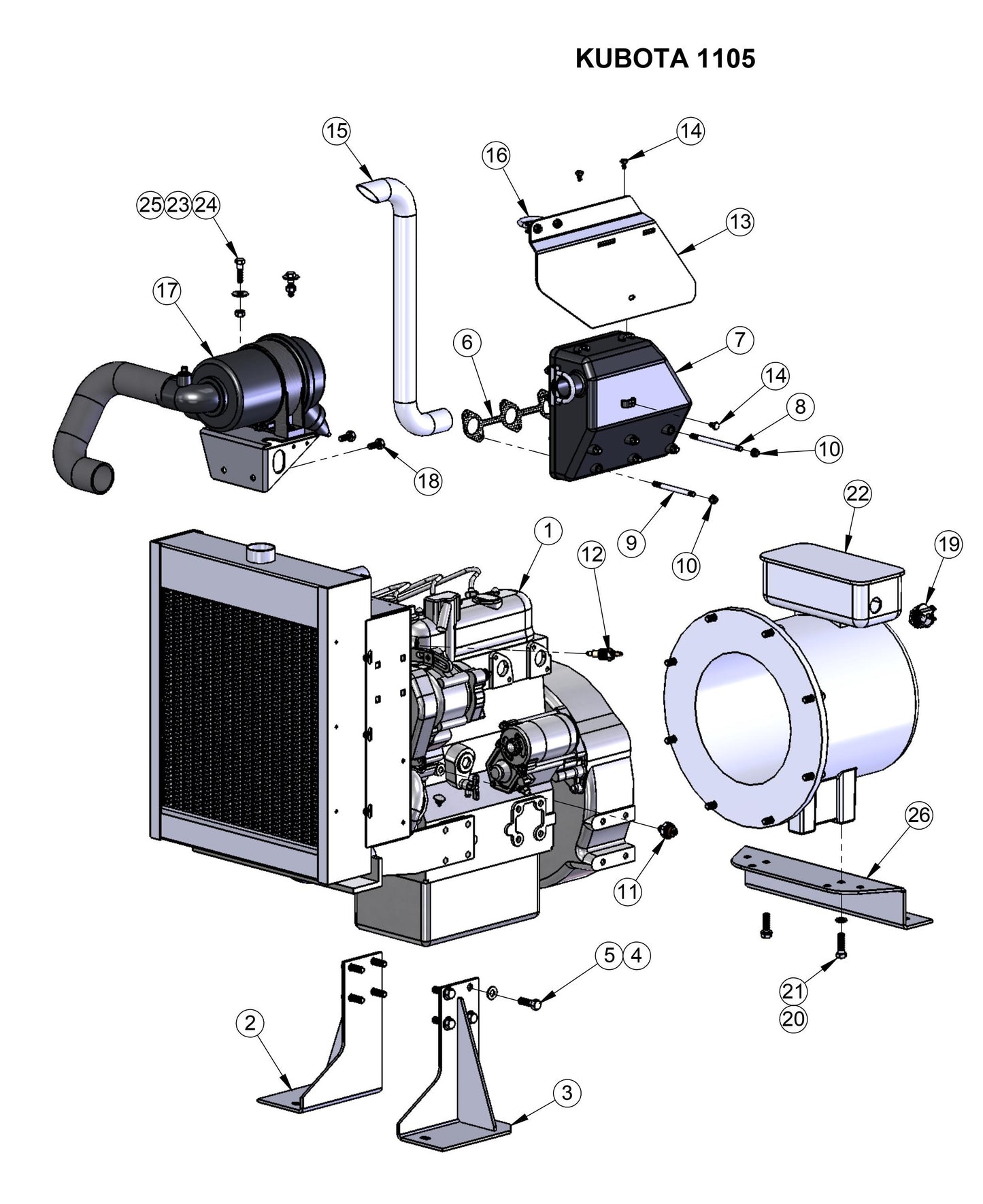

How do I use this diagram?
