V-Series Maxi-Lite 7.5-8KW Light Bar Assembly-1 Parts for Light Tower Parts By Allmand

V-Series Maxi-Lite 7.5-8KW Light Bar Assembly-1 Parts for Light Tower Parts By Allmand

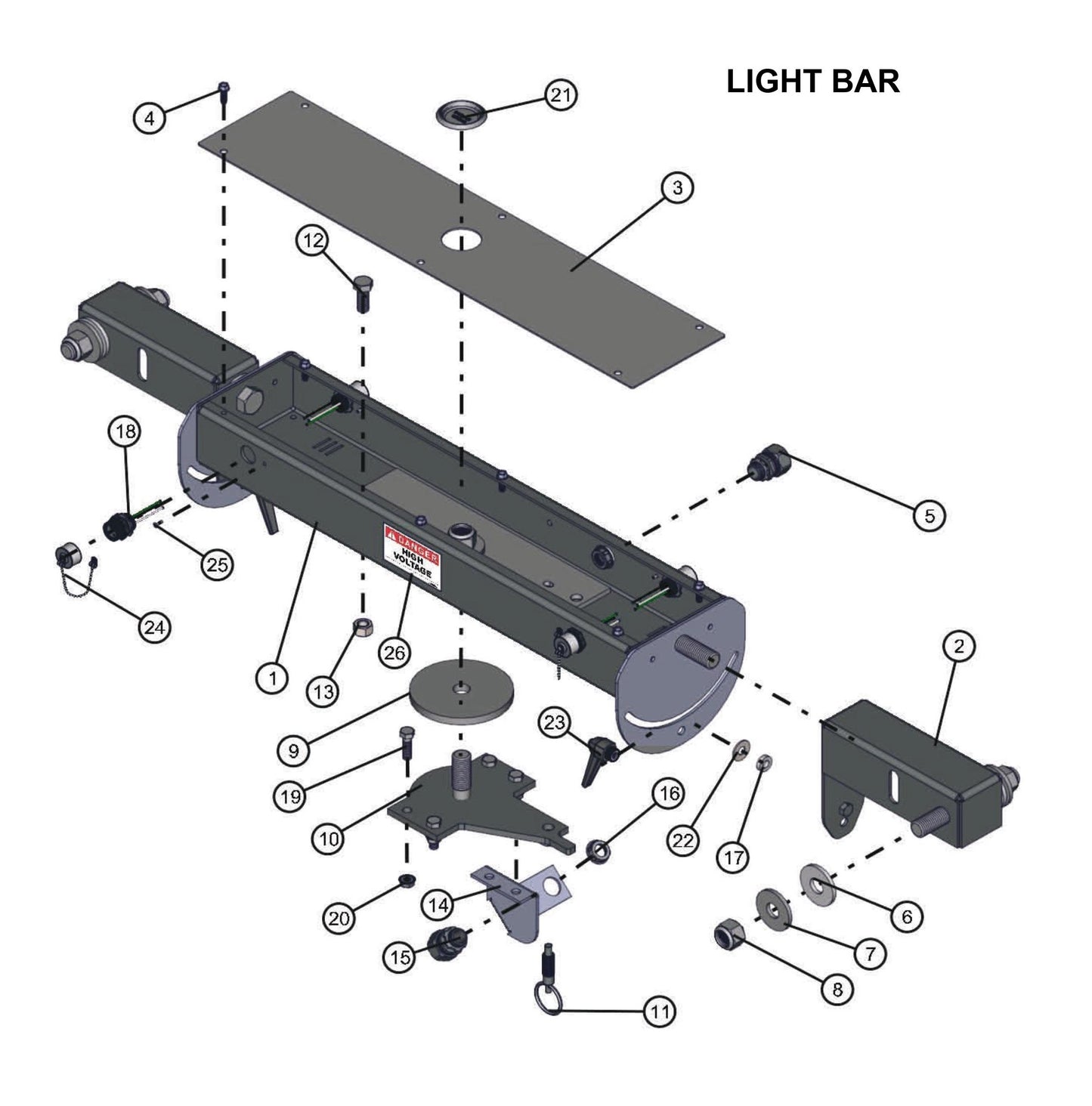

  • V-Series Maxi-Lite 7.5-8KW-Light Bar (Fig 1) Parts By Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
101930P Light Bar for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$503.87
2
101931P Lampmount for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$148.44
3
101929P Cover for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$204.41
4
041070 1/4-20 X 3/4 Sl-Self Tapping Screw for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
5
310033 1/2 Cord Grip for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$17.01
15
310033 1/2 Cord Grip for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$17.01
6
650550 .785 X 2 Hdpe Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.88
7
047035 3/4 Flat Washer Pltd for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
8
044058 3/4-10 Nylock Plated Hex Nut for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
9
100147 Uhmw Bearing for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$44.93
10
100143P Weld, Rotation Mount for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$199.09
11
100148 Spring Lock 1/2-13 X 1.4 for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$45.00
12
046180 1/2-13 X 1 1/4 Hhcs Gr 5 for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
13
044048 1/2-13 Hnut for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
14
100154P Bracket for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$80.90
16
022415 1/2" Wire Protector for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$5.78
17
047019 3/4 Od X .385 Id Nylon Bushing for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
18
310414 Qd Connector Female for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$126.00
19
046115 3/8-16 X 1 1/4 Hhcs for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
20
044036 3/8-16 Keps Hex Nut for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
21
680878 Caplug 1 3/4" for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
22
047010 5/16 Fw for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
23
102361 Adjustable Lever, for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$40.24
24
310413 Cap Ils Option for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$85.91
25
045116 1/8 Pop Rivet for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.49
26
090002 High Voltage Decal for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.88
