V-Series Maxi-Lite 7.5-8KW Light Bar Assembly-2 Parts for Light Tower Parts By Allmand

V-Series Maxi-Lite 7.5-8KW Light Bar Assembly-2 Parts for Light Tower Parts By Allmand

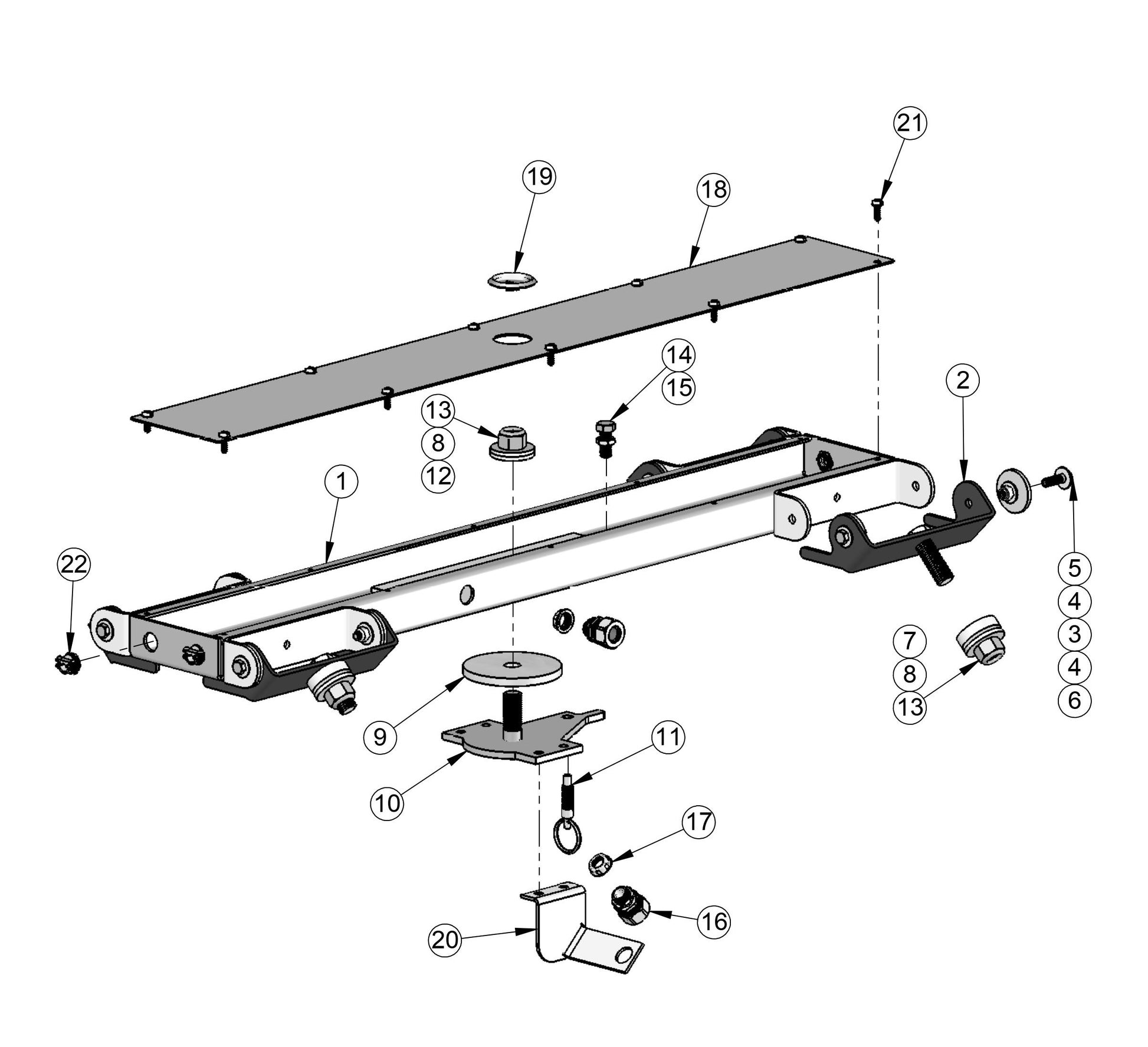

  • V-Series Maxi-Lite 7.5-8KW-Light Bar (Fig 2) Parts By Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
100113P Light Bar for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$496.49
2
100157P Limiter Bracket for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$93.16
3
100673 .385 X 2 X 3/16 Pc Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$9.60
4
047015 3/8 Flat Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
5
046115 3/8-16 X 1 1/4 Hhcs for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
6
044038 3/8-16 Nylon Insert Nut for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
7
101813 .781"Id X 2"Od X 1/2" Hdpe Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.88
8
047035 3/4 Flat Washer Pltd for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
9
100147 Uhmw Bearing for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$44.93
10
100143P Rotational Mount for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$199.09
11
100148 Spring Lock 1/2-13 X1.4 for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$45.00
12
650550 .785 X 2 Hdpe Washer for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.88
13
044121 3/4-10 Nylock Ss Hex Nut for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
14
046180 1/2-13 X 1 1/4 Hhcs Gr 5 for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
15
100643 1/2-13 Nylock for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.49
16
330031 1/2 Cord Grip for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
Call for Price call for price call for price
17
022415 1/2" Wire Protector for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$5.78
18
100106P Light Bar Cover for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$133.88
19
680878 Caplug 1 3/4" for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
20
100154P Tower To Cord Angle Bracket for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$80.90
21
041070 1/4-20 X 3/4 Smshh Tp F for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$2.99
22
022020 3/8 2 Screw Clamp for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$4.49
NS
310414 Qd Female Connector for Maxi-Lite V-Series 7.5-8Kw Light Towers by Allmand
$126.00
