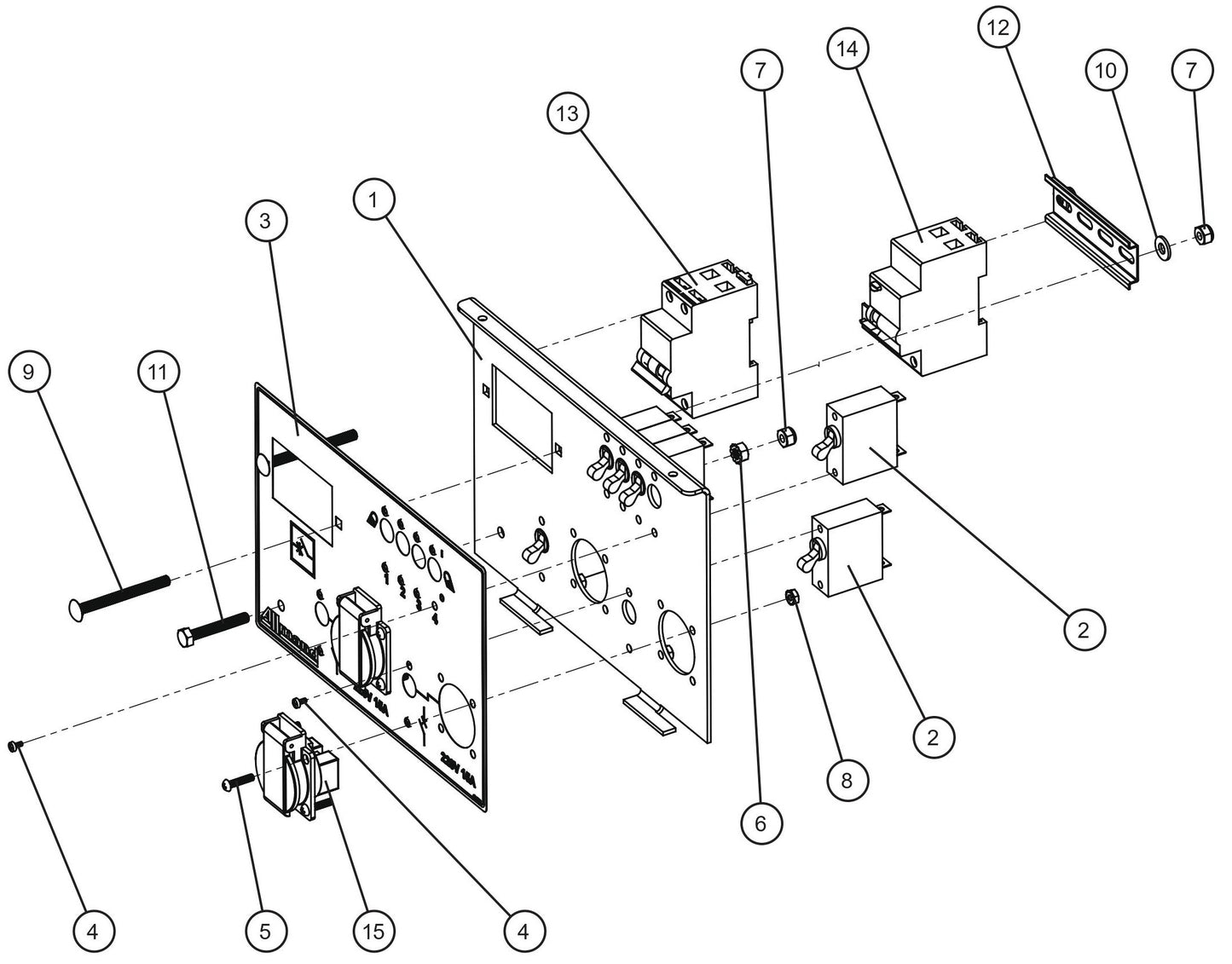

V Series Night-Lite Pro II 50Hz Schuko International Outlet Package Parts By Allmand

V Series Night-Lite Pro II 50Hz Schuko International Outlet Package Parts By Allmand

  • V Series Night-Lite Pro II 50Hz Schuko International Outlet Package Parts By Allmand
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
104891P Outlet Panel Ce 50Hz Schuko for Night-Lite Pro Ii V-Series Light Towers by Allmand
Call for Price call for price call for price
2
330458 15A Spst Breaker Switch for Night-Lite Pro Ii V-Series (0381Pro2V14 To 9999Pro2V16) Light Towers by Allmand
$76.20
3
104892 Decal Breaker 50 Hz Schuko for Night-Lite Pro Ii V-Series Light Towers by Allmand
Call for Price call for price call for price
4
041018 #6-32 X 1/4 Ph-Round Head Ms Pl for Night-Lite Pro Ii V-Series (0381Pro2V14 To 9999Pro2V16) Light Towers by Allmand
$2.99
5
041042 #8-32 X 3/4 Ph-Round Head Ms Pl for Night-Lite Pro Ii V-Series Light Towers by Allmand
$2.99
6
044021 1/4-20 Keps Hex Nut Pl for Night-Lite Pro Ii V-Series (0381Pro2V14 To 9999Pro2V16) Light Towers by Allmand
$2.99
7
044023 1/4-20 Nylock Hex Nut Pl for Night-Lite Pro Ii V-Series (0381Pro2V14 To 9999Pro2V16) Light Towers by Allmand
$2.99
8
044003 #8-32 Nc Keps Nut for Night-Lite Pro Ii V-Series (0381Pro2V14 To 9999Pro2V16) Light Towers by Allmand
$2.99
9
100718 1/4-20 X 2 1/4 Carriage Bolt for Night-Lite Pro Ii V-Series (0381Pro2V14 To 9999Pro2V16) Light Towers by Allmand
$2.99
10
047005 1/4 Flat Washer Pl for Night-Lite Pro Ii V-Series (0381Pro2V14 To 9999Pro2V16) Light Towers by Allmand
Call for Price call for price call for price
11
046029 1/4-20 X 1 3/4 Hex Head Cs Gr5 Pl for Night-Lite Pro Ii V-Series Light Towers by Allmand
Call for Price call for price call for price
12
103476 4” Din Rail for Night-Lite Pro Ii V-Series Light Towers by Allmand
Call for Price call for price call for price
13
106609 Circuit Protector 32A C60H-Dc for Night-Lite Pro Ii V-Series Light Towers by Allmand
$273.66
14
106610 Module Earth Leakage Vigi C60 30Ma for Night-Lite Pro Ii V-Series Light Towers by Allmand
$539.72
15
650485 Receptacle Schuko (Euro) for Night-Lite Pro Ii V-Series Light Towers by Allmand
$68.70
16
105513 Wire Schematic Two 16 Schuko Int’L Pro Ii for Night-Lite Pro Ii V-Series Light Towers by Allmand
Call for Price call for price call for price
