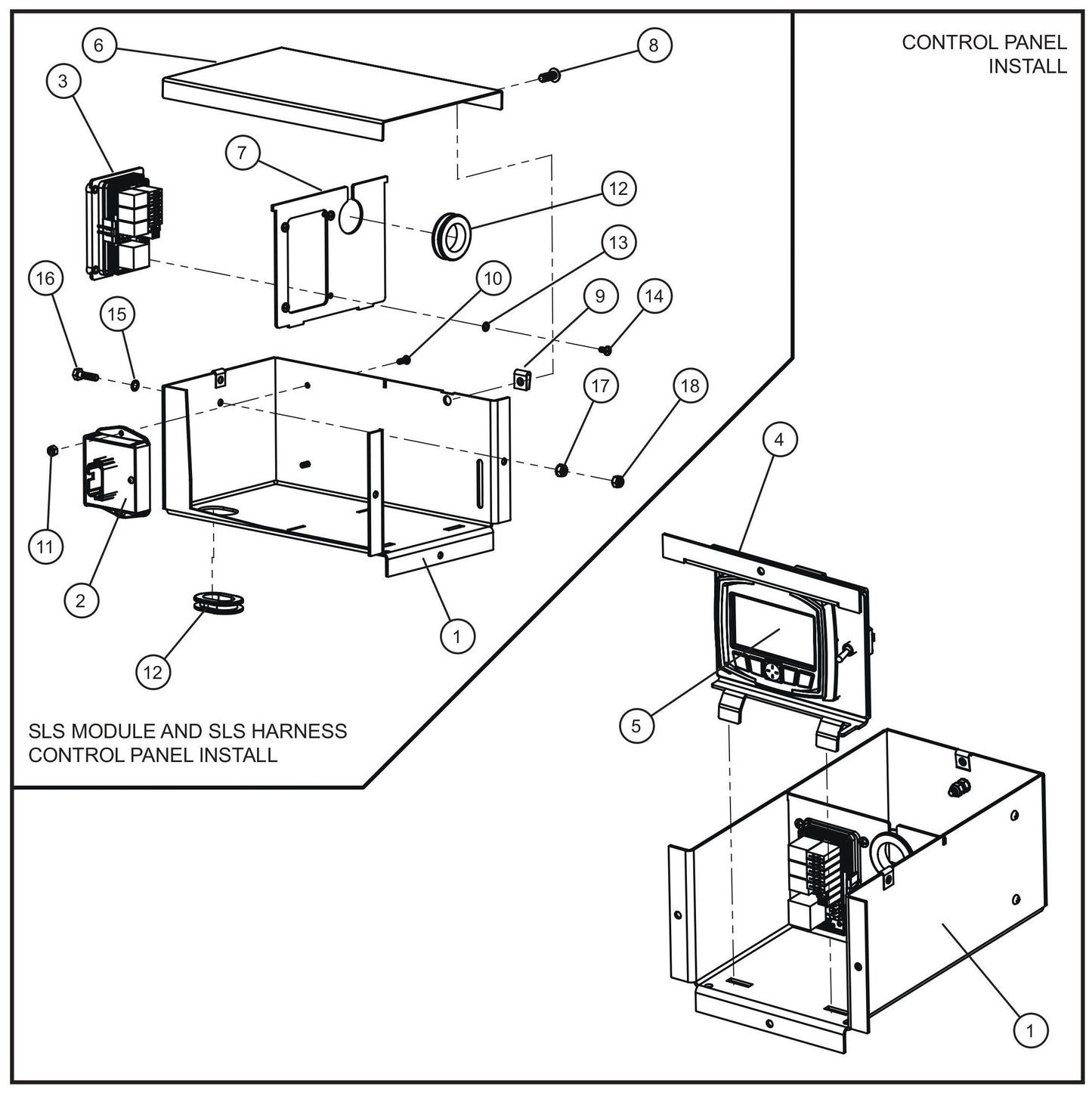

LSC Control Box with Toggle Switch (1 of 2) Assembly Parts for V Series Night-Lite (Sn 39-000001 to 39-999999) by Allmand

LSC Control Box with Toggle Switch (1 of 2) Assembly Parts for V Series Night-Lite (Sn 39-000001 to 39-999999) by Allmand

  • LSC Control Box with Toggle Switch (1 of 2) Assembly Parts for V Series Night-Lite (Sn 39-000001 to 39-999999) by Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
111427P Box Control for Night-Lite V-Series Light Towers by Allmand
$167.29
2
108053 Sls 1.1 Module for Night-Lite V-Series Light Towers by Allmand
$578.24
3
116653 Harness Lsc Control Panel Complete (No Switch) for Night-Lite V-Series Light Towers by Allmand
Call for Price call for price call for price
4
112404P Nlv Control Panel Lsc/Sls for Night-Lite V-Series Light Towers by Allmand
$74.29
5
107404 Lsc 2.1 Module for Night-Lite V-Series Light Towers by Allmand
$2,347.16
6
111428P Cover Control Panel Box for Night-Lite V-Series Light Towers by Allmand
$52.91
7
111946P Plate Divider Dc Control Box for Night-Lite V-Series Light Towers by Allmand
Call for Price call for price call for price
8
041050 1/4-20 X 3/4 Ph-Truss Head Ms Ss Machine Screw for Night-Lite V-Series Light Towers by Allmand
$2.99
9
045216 1/4-20 Tinnerman Nut for Night-Lite V-Series Light Towers by Allmand
$2.99
10
041021 #10-24 X 1/2 Ph-Round Head Ms Pl for Night-Lite V-Series Light Towers by Allmand
$2.99
11
044019 #10-24 Nylock Hex Nut Ss for Night-Lite V-Series Light Towers by Allmand
Call for Price call for price call for price
12
650542 1 1/4 Id X 1 1/2 Od Grommet for Night-Lite V-Series Light Towers by Allmand
$2.99
13
043017 #10 Intl Toothlock Washer for Night-Lite V-Series Light Towers by Allmand
Call for Price call for price call for price
14
041019 #10-32 X 3/8 Ph-Round Head Ms Pl for Night-Lite V-Series Light Towers by Allmand
$2.99
15
043050 1/4 Intl Tooth Lock Washer for Night-Lite V-Series Light Towers by Allmand
$2.99
16
046015 1/4-20 X 1 Hex Head Cs Gr5 Pl for Night-Lite V-Series Light Towers by Allmand
$2.99
17
044021 1/4-20 Keps Hex Nut Pl for Night-Lite V-Series Light Towers by Allmand
$2.99
18
044023 1/4-20 Nylock Hex Nut Pl for Night-Lite V-Series Light Towers by Allmand
$2.99
NS
113437 Transformer 117/6.3V Schematic for Night-Lite V-Series Light Towers by Allmand
Call for Price call for price call for price
NS
113652 Lsc Schematic for Night-Lite V-Series Light Towers by Allmand
Call for Price call for price call for price
