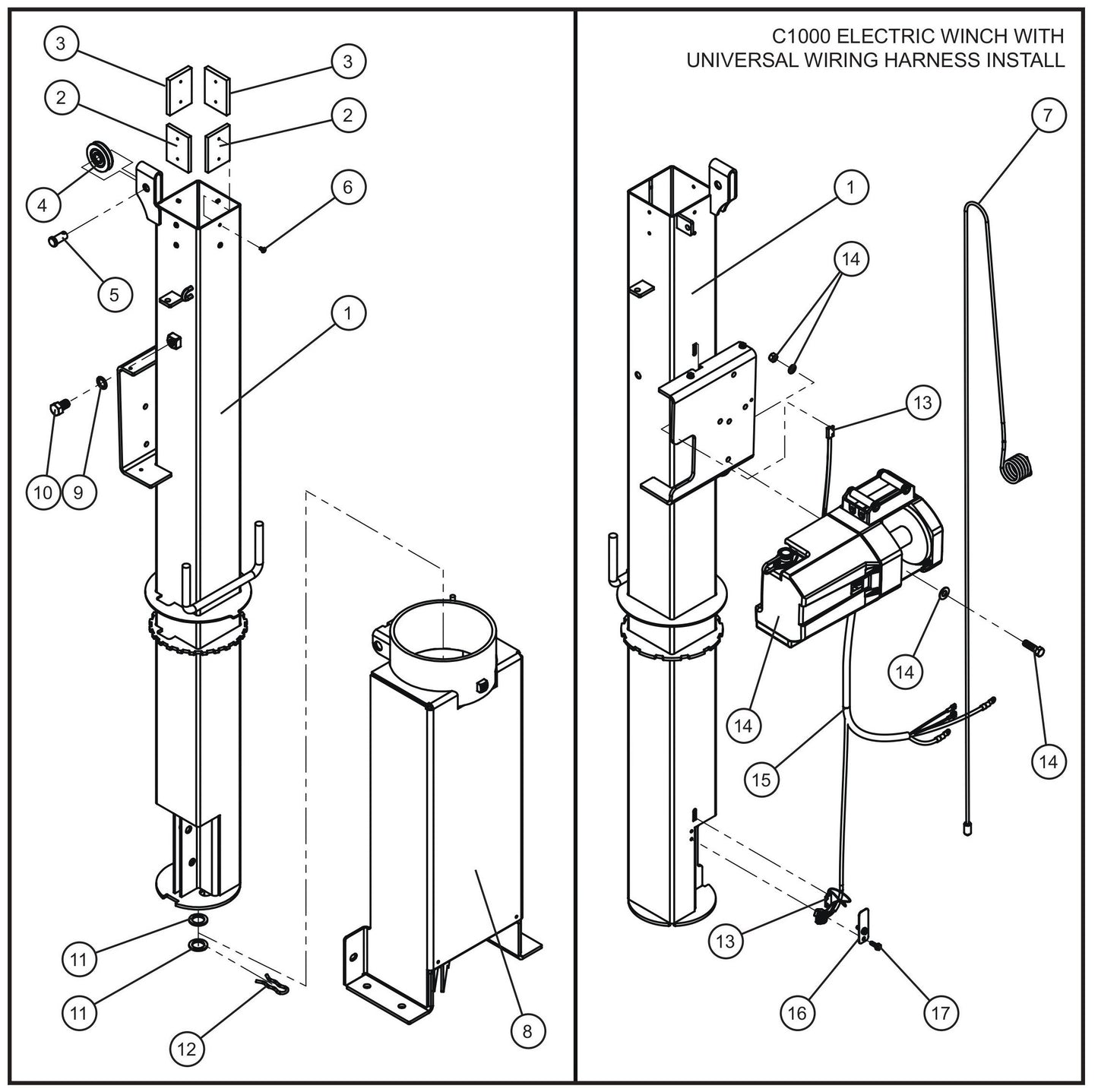

C1000 Electric Winch Vertical Tower Section 2 Assembly Parts for V Series Night-Lite (Sn 39-000001 to 39-999999) by Allmand

Name: C1000 Electric Winch Vertical Tower Section 2 Assembly Parts for V Series Night-Lite (Sn 39-000001 to 39-999999) by Allmand
Brand: danse-usa
Availability: OutOfStock

1 1

100% genuine product

Authorised dealer

View all diagrams for this Model

Ref.	Product details	Price	Action
1	111086P Electric Winch Tower 5 Inch Section for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
1	111086-20 Electric Winch Tower 5 Inch Section Galvanized for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
2	650110 .312 Tower Pad for Night-Lite V-Series Light Towers by Allmand	$7.28
3	650109 .375 Tower Pad for Night-Lite V-Series Light Towers by Allmand	$7.28
4	100160 2 1/2 Pulley Ball Bearing for Night-Lite V-Series Light Towers by Allmand	$67.50
5	033000 5/8 X 1 Slic Pin for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
6	041023 #10 X 3/8 Ph-Round Head Ms Pl for Night-Lite V-Series Light Towers by Allmand	$2.99
7	109998 Electric Winch Cable for Night-Lite V-Series Light Towers by Allmand	$129.94
8	110248P Pivot Section Support for Night-Lite V-Series Light Towers by Allmand	$559.00
9	043100 5/8 Intl Toothlock Washer Pl for Night-Lite V-Series Light Towers by Allmand	$2.99
10	046242 5/8-11 X Hex Head Cs Gr5 Pl for Night-Lite V-Series Light Towers by Allmand	$2.99
11	047055 1” Id Narrow Rim Plated Machine Bushing for Night-Lite V-Series Light Towers by Allmand	$4.88
12	620545 3/4” Hair Pin Clip Rated for Night-Lite V-Series Light Towers by Allmand	$2.99
13	109993 Magnetic Limit Switch for Night-Lite V-Series Light Towers by Allmand	$41.93
14	114869 C1000 Electric Winch Assembly for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
14	109992 Electric Winch C1000 (Winch Only) for Night-Lite V-Series Light Towers by Allmand	$1,579.67
15	114860 Nle/Nlv Electric Winch Harness for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
16	115136P Lower Limit Switch Hold Down for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
17	041070 1/4-20 X 3/4 Sl-Hex Washer Head for Night-Lite V-Series Light Towers by Allmand	$2.99
NS	116054 Electric Winch Harness Extension for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
NS	112290 50Amp Short Shop Breaker for Night-Lite V-Series Light Towers by Allmand	$46.84
NS	115148 Mounting Hardware for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
NS	115322 Filler Block for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
NS	115323 M4 X 0.7 X 8Mm Screw-Stph for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
NS	115324 8-16 X 1/2 Black Screw for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
NS	115325 Type 6 W/S Brk Contactor Assy for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
NS	115326 Motor Cover for Night-Lite V-Series Light Towers by Allmand	$44.06
NS	115327 Set Cup Point Screw for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
NS	115328 12V Dc66P Contactor Relay for Night-Lite V-Series Light Towers by Allmand	$182.31
NS	116380 M6-1.0 Spacer Terminal Solenoid for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
NS	117147 Nlv Electric Winch Schematic for Night-Lite V-Series Light Towers by Allmand	Call for Price	call for price call for price
