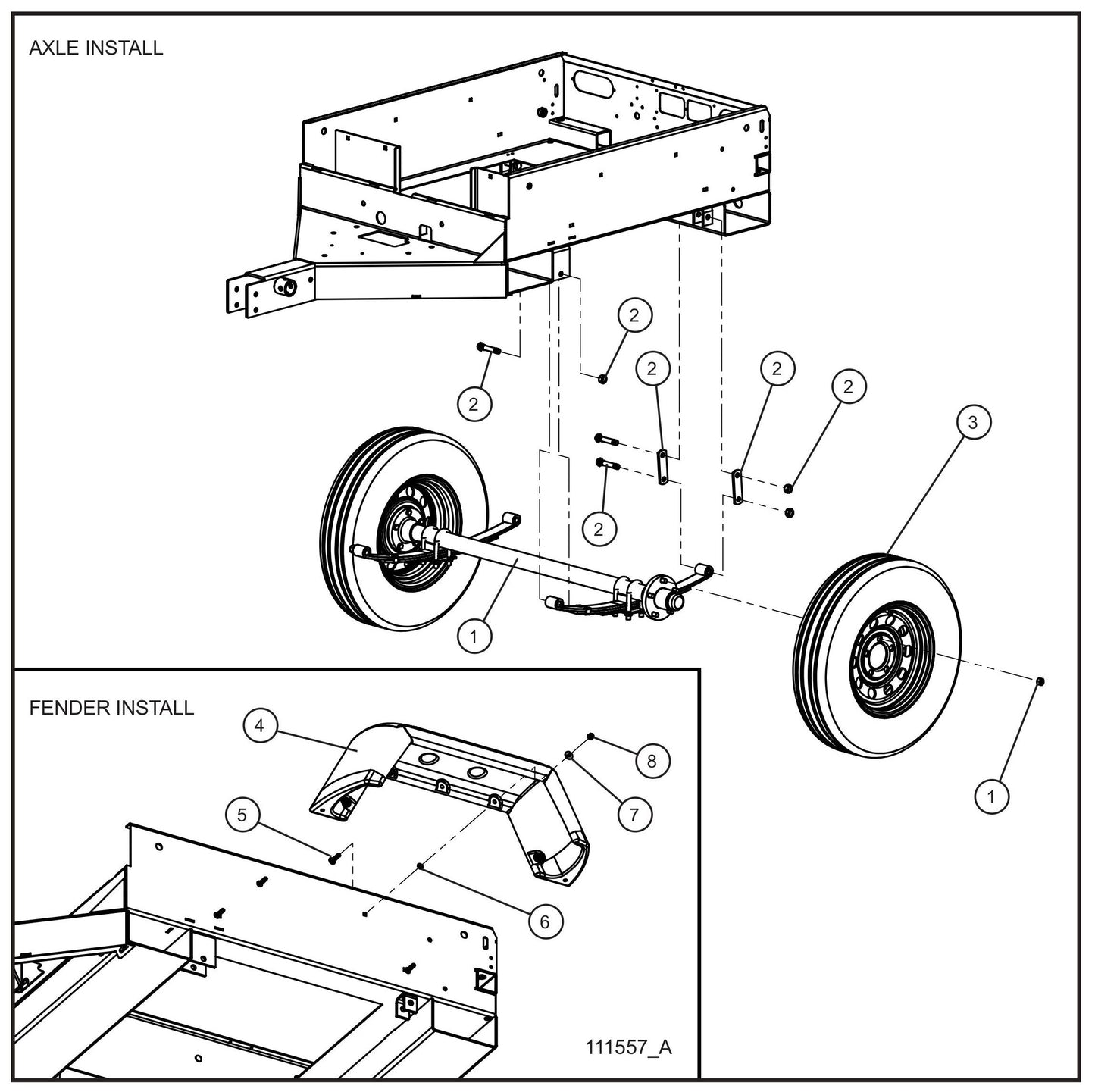

Axle and Fender Group Assembly Parts for V Series Night-Lite (Sn 39-000001 to 39-999999) by Allmand

Axle and Fender Group Assembly Parts for V Series Night-Lite (Sn 39-000001 to 39-999999) by Allmand

  • Axle and Fender Group Assembly Parts for V Series Night-Lite (Sn 39-000001 to 39-999999) by Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
107128 Axle 13” Hubs for Night-Lite V-Series Light Towers by Allmand
$615.00
2
117120 Single Axle Suspension Kit for Night-Lite GR-Series Air Light Towers by Allmand
Call for Price call for price call for price
3
112801 13” Tire/Wheel Assembly for Night-Lite Pro Ii V-Series Light Towers by Allmand
$247.50
4
650297 Fender 13 Inch Molded Embedded Decal for Night-Lite V-Series Light Towers by Allmand
$195.00
5
053023 5/16-18 X 1 1/2 Carriage Bolt Pl for Night-Lite Pro Ii V-Series Light Towers by Allmand
$2.99
6
045217 5/16 Push Nut for Night-Lite Pro Ii V-Series Light Towers by Allmand
$2.99
7
047010 5/16 Flat Washer for Night-Lite Pro Ii V-Series Light Towers by Allmand
$2.99
8
044031 5/16-18 Keps Hex Nut Pl for Night-Lite Pro Ii V-Series Light Towers by Allmand
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
