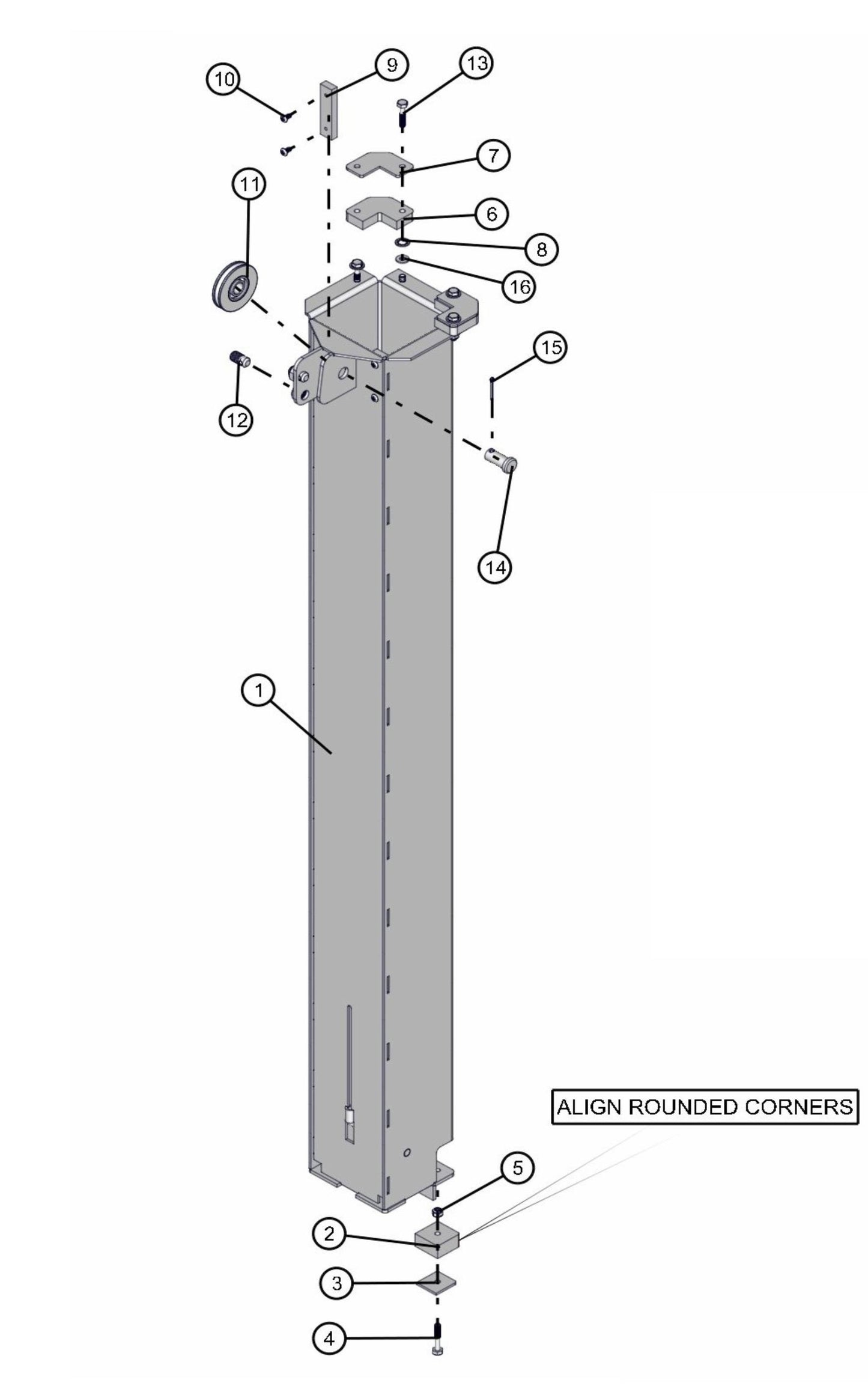

Vertical Tower VT1 Section 3 Assembly Parts for FCS Maxi-Lite 15-20KW (0001LV10 to 9999MLV12) by Allmand

Vertical Tower VT1 Section 3 Assembly Parts for FCS Maxi-Lite 15-20KW (0001LV10 to 9999MLV12) by Allmand

  • Vertical Tower VT1 Section 3 Assembly Parts for FCS Maxi-Lite 15-20KW (0001LV10 to 9999MLV12) by Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
100060P Weld, Sec 3 for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$523.73
2
100094 Uhmw 1 1/2" Wear Blk for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$9.33
3
100095P 1 1/2 Wear Block Cover for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$120.51
4
046025 1/4-20 X 1 1/2 Hex Bolt for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$4.49
5
044023 1/4-20 Nylock Hex Nut Pl for Maxi-Lite Light Towers by Allmand
$2.99
6
100088 Corner Friction Block for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$27.33
7
100089P Corner Block Cover for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
Call for Price call for price call for price
8
043070 3/8 Intl Tooth Lock Washer Pl for Night-Lite Pro Ii V-Series Light Towers by Allmand
$2.99
9
100062 3/8 Uhmw Spacer for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$24.04
10
041023 #10 X 3/8 Ph-Round Head Ms Pl for Maxi-Lite Light Towers by Allmand
$2.99
11
100160 2 1/2 Pulley Ball Bearing for Maxi-Lite Light Towers by Allmand
$67.50
12
100071 3/16 Cable Bolt for Maxi-Lite V-Series 15-20Kw Light Towers by Allmand
$13.17
13
046020 1/4-20 X 1 1/4 Hex Head Cs Gr5 Pl for Maxi-Lite Light Towers by Allmand
$2.99
14
102906 5/8 X 1 1/4 Clevis Pin for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$7.28
15
045045 5/32 X 1 1/2 Cotter Pin for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$2.99
16
047005 1/4 Flat Washer Pl for Maxi-Lite Light Towers by Allmand
$2.99
