CV1A, CV2A, CV2B, CV3A, CV3B Vibrator Motor Assembly Parts By Multiquip

CV1A, CV2A, CV2B, CV3A, CV3B Vibrator Motor Assembly Parts By Multiquip

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
3061-013 Field Assy, 1Hp 115V Cv1A for CV Series Flex Shaft Concrete Vibrators by Multiquip
$165.27
1
3061-014 Field Assy, 2Hp 115V Cv2A for CV Series Flex Shaft Concrete Vibrators by Multiquip
$163.13
1
3063-014 Field Assy, 2Hp 230V Cv2B for CV Series Flex Shaft Concrete Vibrators by Multiquip
$131.84
1
3061-015 Field Assy, 3Hp 115V Cv3A for CV Series Flex Shaft Concrete Vibrators by Multiquip
$152.93
1
3063-015 Field Assy, 3Hp 230V Cv3B for CV Series Flex Shaft Concrete Vibrators by Multiquip
$166.55
2
1000-252 Ground Screw W/ Washer for CV Series Flex Shaft Concrete Vibrators by Multiquip
Call for Price call for price call for price
3
1000-101 Motor Assy, 1Hp 115V Cv1A for CV Series Flex Shaft Concrete Vibrators by Multiquip
$562.20
3
1000-102 Motor Assy, 2Hp 115V Cv 2A for CV Series Flex Shaft Concrete Vibrators by Multiquip
$598.38
3
1000-103 Motor Assy, 2Hp 230V Cv2B for CV Series Flex Shaft Concrete Vibrators by Multiquip
Call for Price call for price call for price
3
1000-104 Motor Assy., 3Hp 115V Cv3A for CV Series Flex Shaft Concrete Vibrators by Multiquip
$626.26
3
1000-105 Motor Assy., 3Hp 230V Cv3B for CV Series Flex Shaft Concrete Vibrators by Multiquip
$585.35
4
6100-003 Bushing, Bronze Wear for CV Series Flex Shaft Concrete Vibrators by Multiquip
$22.91
5
1000-115 End Bell Assy., Output 1Hp for CV Series Flex Shaft Concrete Vibrators by Multiquip
Call for Price call for price call for price
5
8100-033 End Bell Assy., Output 2Hp for CV Series Flex Shaft Concrete Vibrators by Multiquip
$250.91
5
8100-032 End Bell Assy., Output 3Hp for CV Series Flex Shaft Concrete Vibrators by Multiquip
$276.55
6
7200-001 Lock Pin,Quick Disconnect for CV Series Flex Shaft Concrete Vibrators by Multiquip
$16.57
7
90004-07 Housing, Spring for CV Series Flex Shaft Concrete Vibrators by Multiquip
$25.08
8
90004-05 Shaft Coupling, 00 314V Cv1A for CV Series Flex Shaft Concrete Vibrators by Multiquip
$70.12
9
8001-045 Armature & Bearing Assy,1Hp 115V Cv-1 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$182.34
9
8001-044 Armature & Bearing Assy,2Hp 115V Cv-2 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$205.71
9
8001-047 Armature & Bearing Assy,2Hp 230V Cv-2 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$189.49
9
8001-043 Armature &Bearing Assy,3Hp 115V Cv-3 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$193.67
9
8001-046 Armature & Bearing Assy,3Hp 230V Cv-3 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$192.39
10
8005-055 End Bell Assy., Comm. for CV Series Flex Shaft Concrete Vibrators by Multiquip
$158.19
11
43000-32 Brush Assy, Carbon for CV Series Flex Shaft Concrete Vibrators by Multiquip
$70.96
12
50125-04 Knob, Plastic Quick Disconnect for CV Series Flex Shaft Concrete Vibrators by Multiquip
$16.93
13
1000-250 Motor Screw Wjwasher for CV Series Flex Shaft Concrete Vibrators by Multiquip
Call for Price call for price call for price
14
53002-09 Pin, Slotted Pin 5/32 X 1 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$4.39
15
55005-03 Bearing, Rear for CV Series Flex Shaft Concrete Vibrators by Multiquip
$7.47
18
56000-06 Wave Spring for CV Series Flex Shaft Concrete Vibrators by Multiquip
$4.76
19
55008-03 Bearing, Front for CV Series Flex Shaft Concrete Vibrators by Multiquip
$8.42
20
1000-091 Car Brush for CV Series Flex Shaft Concrete Vibrators by Multiquip
$6.59
21
59001-11 Insulator, Plastic Field for CV Series Flex Shaft Concrete Vibrators by Multiquip
$34.80
22
59999-08 Spring, Compression for CV Series Flex Shaft Concrete Vibrators by Multiquip
$5.57
23
90004-03 Shaft Spindle 314V Cv1A for CV Series Flex Shaft Concrete Vibrators by Multiquip
$69.12
24
90004-02 Drive Coupler, Quick Disconnect for CV Series Flex Shaft Concrete Vibrators by Multiquip
$64.90
25
57000-15 Brush Holder for CV Series Flex Shaft Concrete Vibrators by Multiquip
$16.77
26
53051-01 Brush Holder Set Screw #10-32 X .375 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$4.39
27
1000-249 Brush Holder W/ Set Screw for CV Series Flex Shaft Concrete Vibrators by Multiquip
Call for Price call for price call for price
View full details

Frequently asked questions

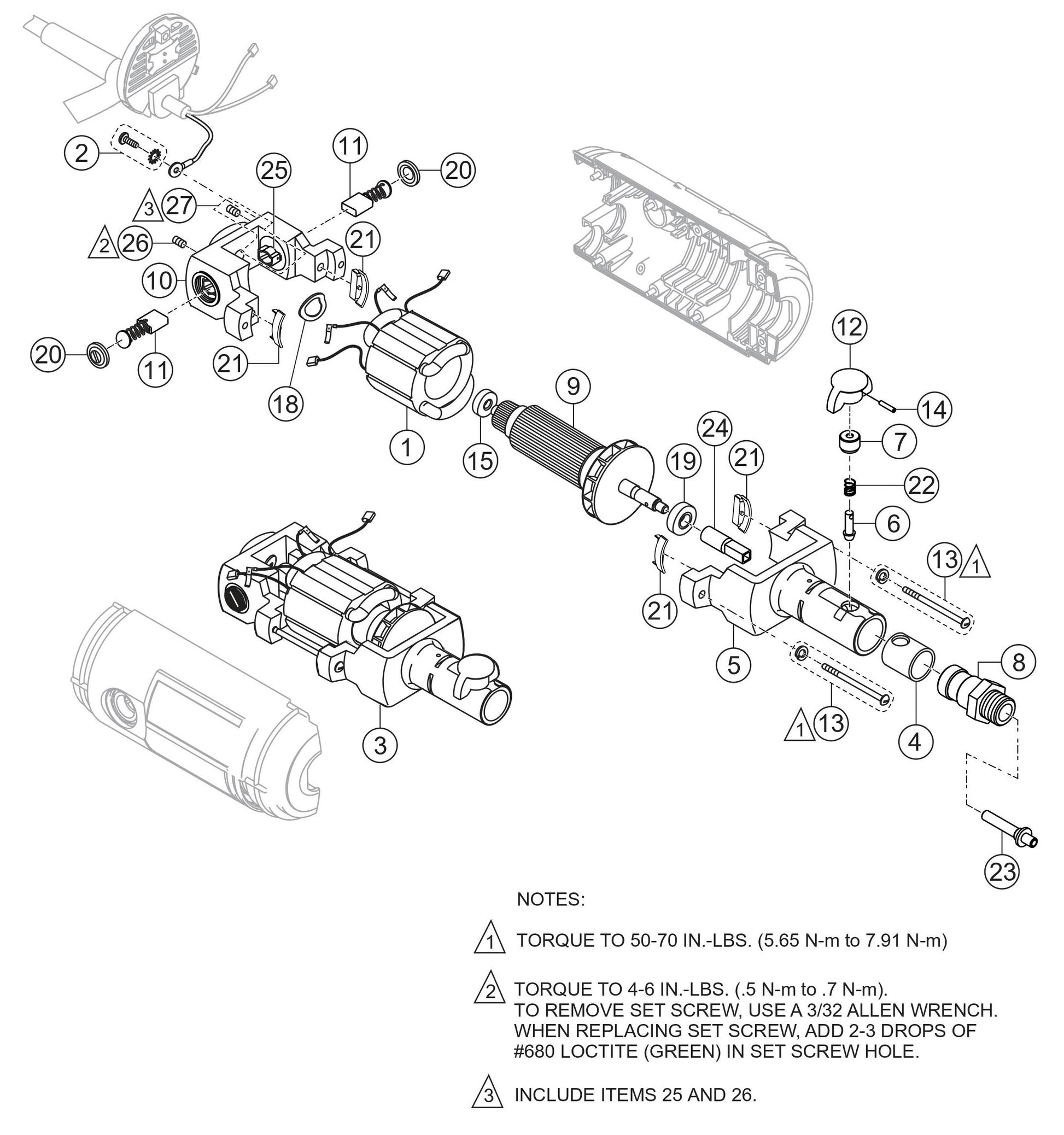

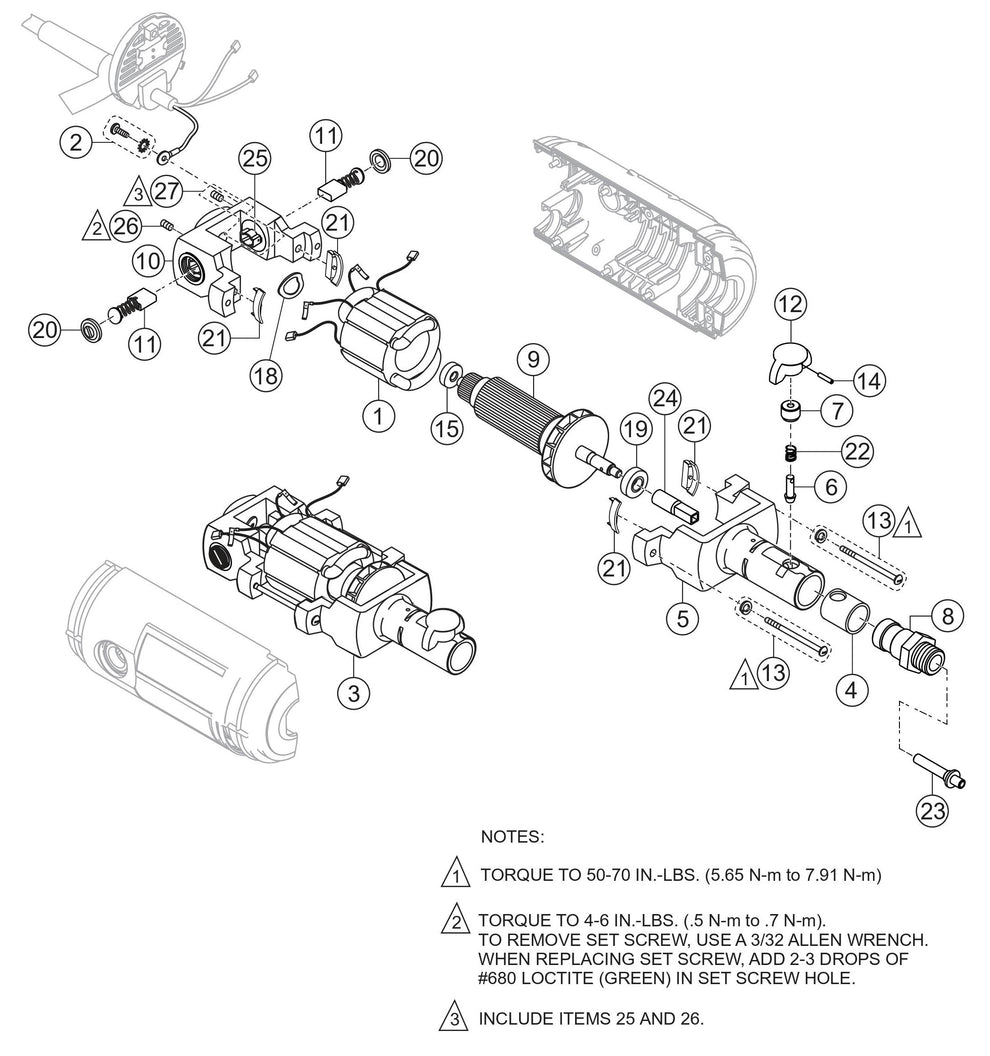

How do I use this diagram?
