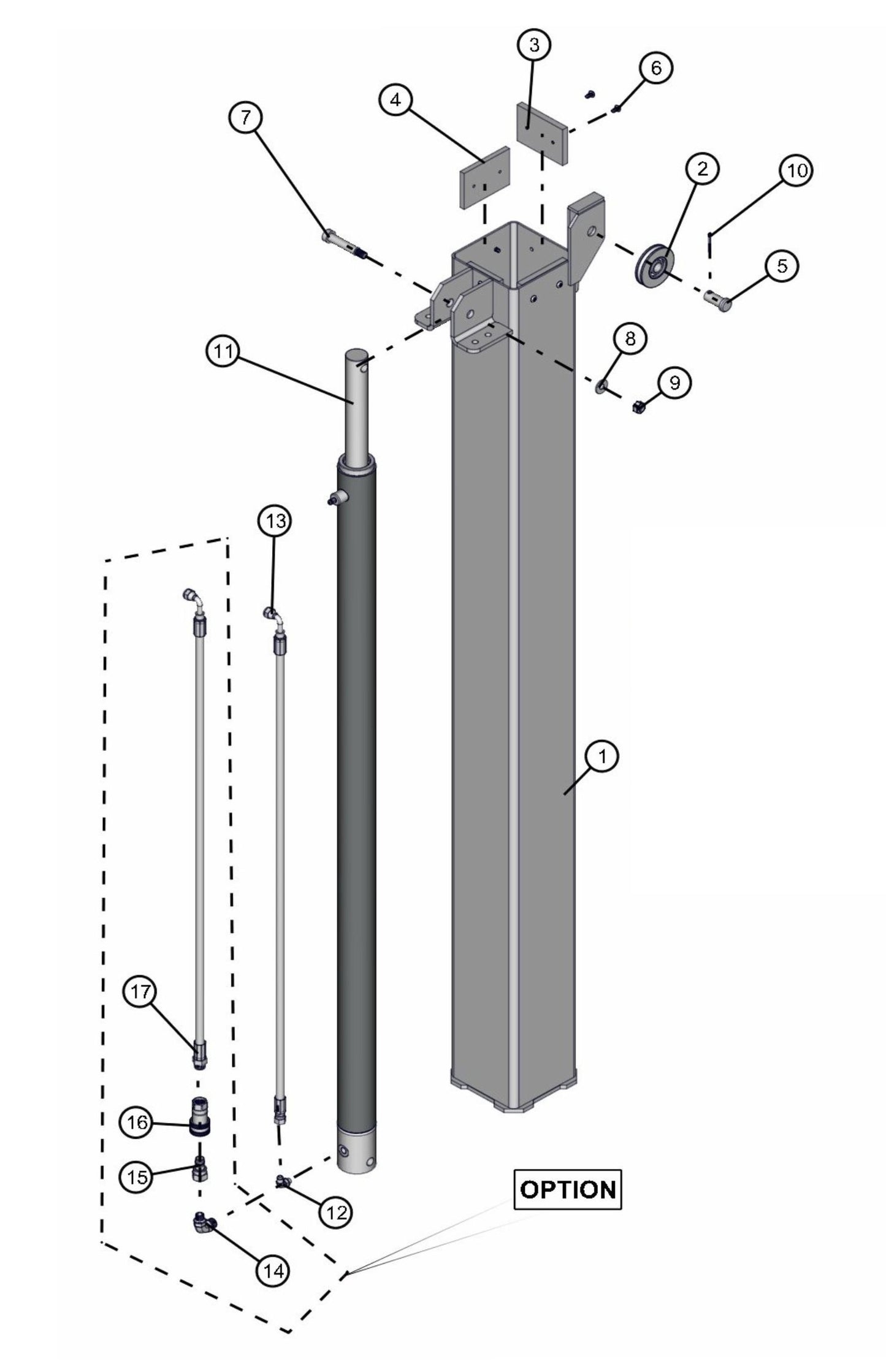

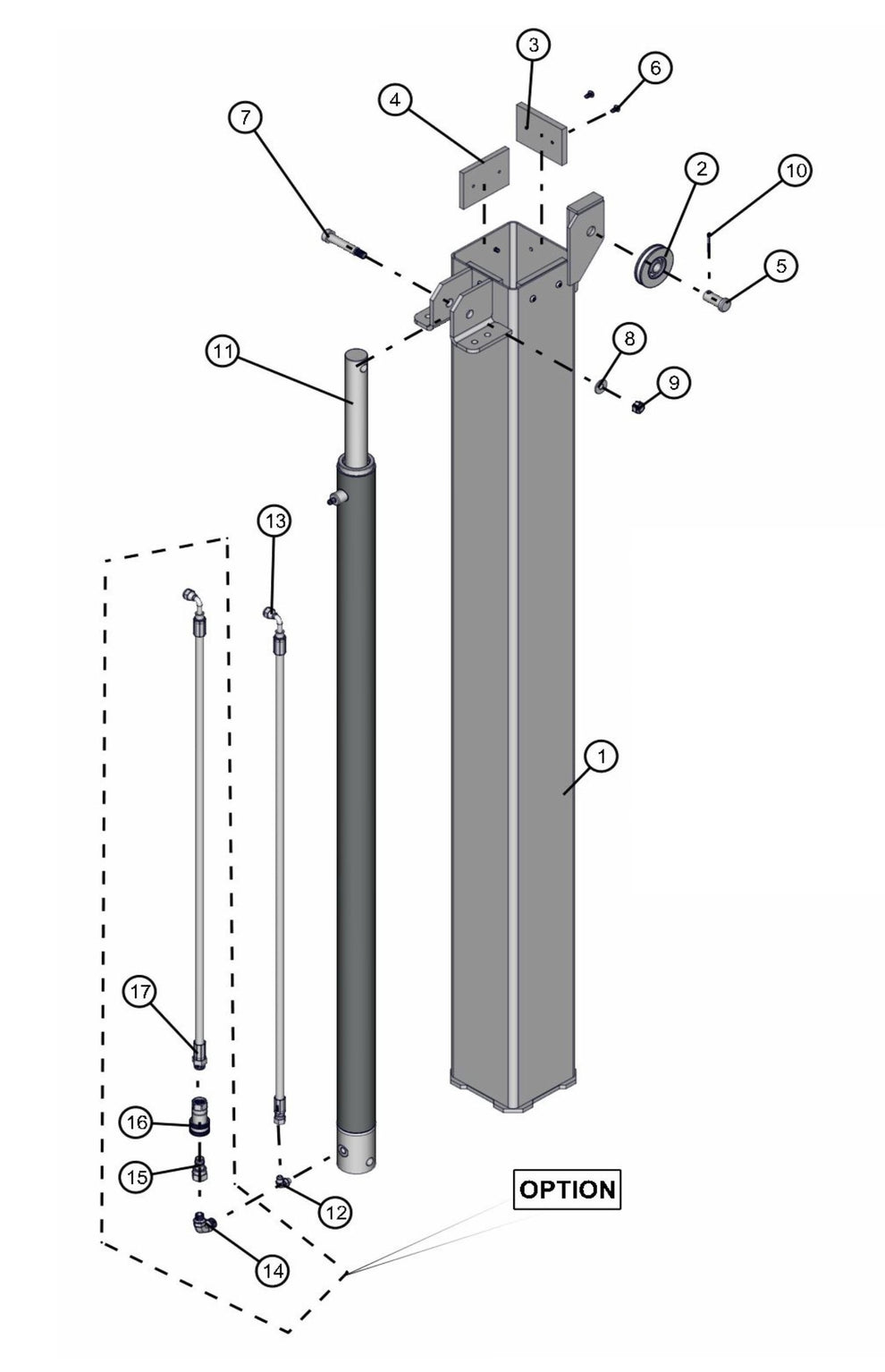

VT2 Section 2 Assembly Parts for FCS Maxi-Lite 15-20KW (0001LV10 to 9999MLV12) by Allmand

VT2 Section 2 Assembly Parts for FCS Maxi-Lite 15-20KW (0001LV10 to 9999MLV12) by Allmand

  • VT2 Section 2 Assembly Parts for FCS Maxi-Lite 15-20KW (0001LV10 to 9999MLV12) by Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
100160 2 1/2 Pulley Ball Bearing for Maxi-Lite Light Towers by Allmand
$67.50
3
650109 .375 Tower Pad for Maxi-Lite Light Towers by Allmand
$7.28
4
650110 Plastic Tower Pad, 5/16 for Maxi-Lite Laydown 15-20Kw Light Towers by Allmand
$7.28
5
102906 5/8 X 1 1/4 Clevis Pin for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$7.28
6
041023 #10 X 3/8 Ph-Round Head Ms Pl for Maxi-Lite Light Towers by Allmand
$2.99
7
101378 1/2 X 2 (3/8-16 X 5/8) Hx-Socket Head Shoulder Bolt for Maxi-Lite Light Towers by Allmand
$4.88
8
047010 5/16 Flat Washer Pl for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$2.99
9
044038 3/8-16 Nylock Hex Nut Pl for Maxi-Lite Light Towers by Allmand
$2.99
10
045045 5/32 X 1 1/2 Cotter Pin for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$2.99
12
920676 90° Hydraulic Fitting for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$17.22
13
101356 Hydraulic Hose for Maxi-Lite Ii Ld-Series (0001Ml212 To 9999Ml216) Light Towers by Allmand
$83.78
14
109604 90' Hyd Fitting for Night-Lite Pro V-Series Ce Light Towers by Allmand
$13.38
15
109602 Quick Coupling Male Quick Disconnect for Night-Lite Pro Ii V-Series Light Towers by Allmand
$29.63
16
109603 Female Quick Coupling for Night-Lite Pro V-Series Ce Light Towers by Allmand
$66.50
17
109605 Hydraulic Hose for Night-Lite Pro V-Series Ce Light Towers by Allmand
Call for Price call for price call for price
1
Call for Price call for price call for price
11
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
