Description
Wacker Hybrid Vibrator Heads with dia from 1 inch to 2 inch Fits Flex Shafts SM1E SM2E SM3E SM4E SM5E SM7E

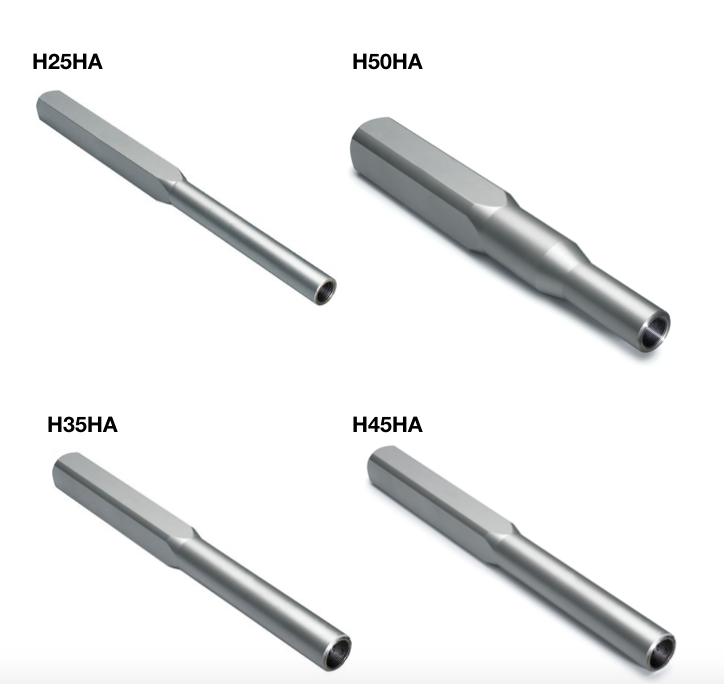

Models :
H 25HA - Hybrid vibrator head, 1 in, 26 mm diameter. length = 15 in, 380 mm
H 35HA - Hybrid vibrator head, 1.4 in, 35 mm diameter. length = 15.9 in, 405 mm.
H 45HA - Hybrid vibrator head,1.8 in, 45 mm diameter. length = 15.4 in, 390 mm.
H 50HA - Hybrid vibrator head, 2 in, 50 mm diameter. length = 15.6 in 395 mm.
Features :
- Complete induction hardened, highly wear resistant steel vibrator head
- Individual parts can be repaired or interchanged
Please note: the modular internal vibrator HMS consists of three components: motor, flexible shaft and vibrator head. You will find possible combinations of motors (M), vibrator heads (H) and flexible shafts (SM) in the table above (see picture).
Specifications:
| OPERATING FLUIDS |
Metric |
| Oil volume |
0,010 l |
| Oil specification |
Klüberoil 4UH1-46N |
| MECHANICAL OUTPUT DETAILS |
Metric |
| Vibrations |
12.000 1/min |
| Vibrations (Hz) |
200 Hz |
| Amplitude at air |
2,13 mm |
| ENVIRONMENT DATA |
Metric |
| Operating temperature range |
-30 - 45 °C |
| Storage temperature range |
-30 - 80 °C |
| MECHANICAL DETAILS |
Metric |
| Head diameter/-diagonal |
26 mm |
| Length Head |
380 mm |
| Weight |
1,27 kg |
| Head design |
square |
| Custom Attributes |
Metric |
| Model serie |
HMS |
| Product line |
Basic |
