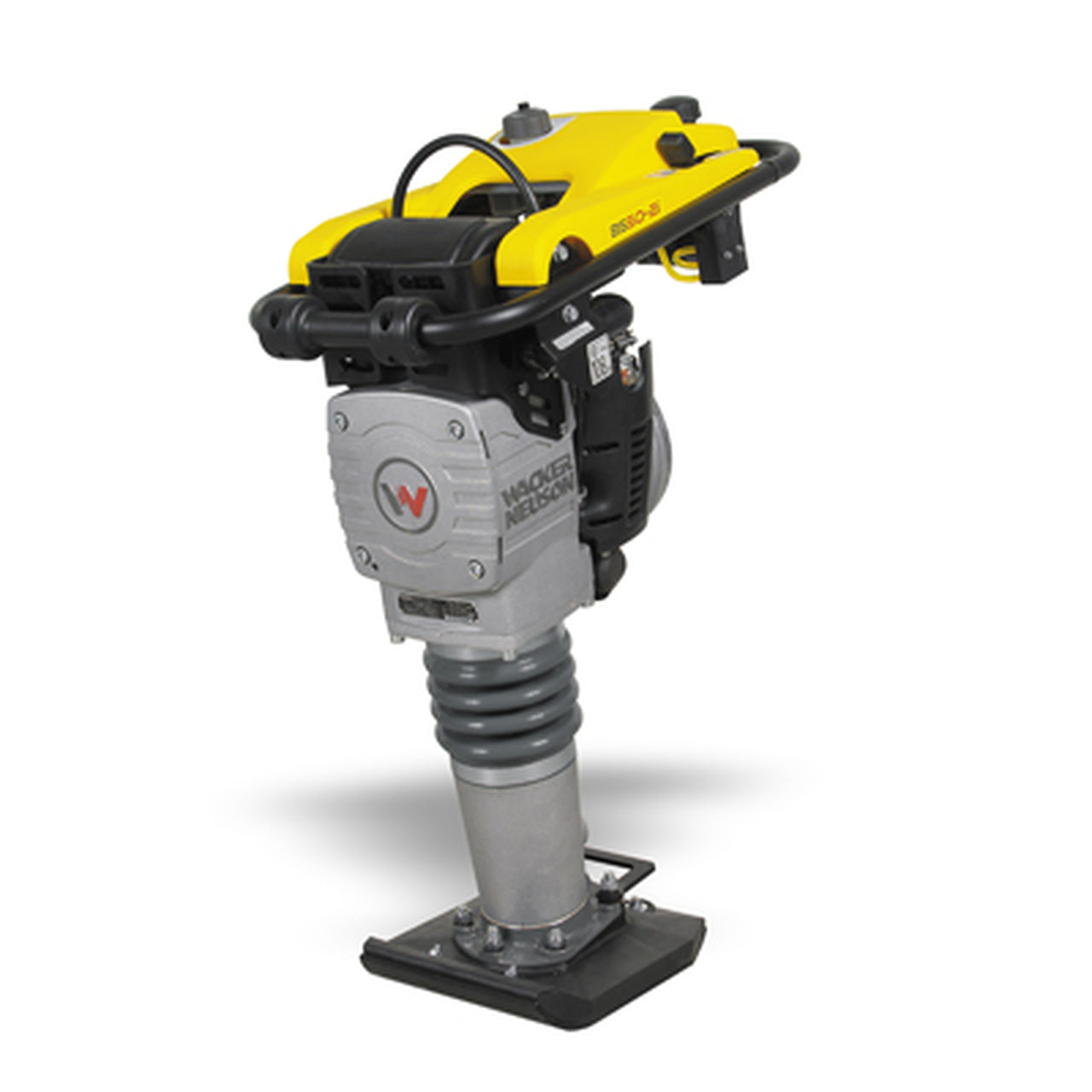

Wacker Neuson BS50-2plus Two-stroke Jumping Jack Rammer with 11" Shoe

Wacker Neuson BS50-2plus Two-stroke Jumping Jack Rammer with 11" Shoe

$2,365.99
$2,365.99
Sale Sold out
  • Wacker Neuson BS50-2plus Two-stroke Jumping Jack Rammer with 11" Shoe
1 1
Wacker Neuson

Wacker Neuson BS50-2plus Two-stroke Jumping Jack Rammer with 11" Shoe

Wacker Neuson BS50-2plus Two-stroke Jumping Jack Rammer with 11" Shoe

Danse #: BS50-2plus
Mfr #: BS50-2plus
$2,365.99
$2,365.99
Sale Sold out
View full details

Description

2 stroke rammer with oil injection and 11-inch (280mm) shoe for soil compaction

  • Driven by the exclusive WM80 2-cycle engine with catalytic converter, which was designed and developed by Wacker Neuson specifically for demanding ramming applications
  • Effortless to start
  • The lowest CO-emissions, significantly below all four-cycle engines
  • Maximum convenience when refuelling and always the right mixing ratio: Two separate tanks for fuel and two-cycle oil. One oil tank refuelling suffices for 120 hours of operation. Lockable oil tank cap available as an accessory.
  • Thanks to the automatic injection, always the optimal combustion and maximum performance
  • Automatic shutdown of the engine after 10 minutes at idle in order to reduce fuel consumption and emissions
  • Specially designed and developed 4-stage air filter system provides for longer operating time and greater durability
  • With operating hours counter
  • Compact dimensions, therefore very manoeuvrable and easy to handle
  • Very good gradeability
  • High performance, maximum jump height and impact force



OPERATING FLUIDS Imperial Metric
Lubrication intervall 250 h 250 h
Oil volume 0,185 gal US 0,700 l
Oil specification SAE 10W-40 SAE 10W-40
Tank capacity 0,8 gal US


ENGINE

 Imperial Metric
Fuel management Carburettor / oil injection Carburettor / oil injection
Engine operating mode two-stroke two-stroke
Operating Engine speed 4.250 1/min 4.250 1/min
Fuel consumption 0,3 GPH US 1,6 lb/h 1,00 L/hr 0,73 kg/h
Idling speed 2.000 1/min 2.000 1/min
Battery Size BCI Group Wacker Neuson Wacker Neuson
Engine speed (max. torque) 2004/26/EC 2004/26/EC
Standard (Power max.) 2,4 hp 1,8 KW
Standard (Effective power) ISO 3046-1 ISO 3046-1
Tank capacity 0,8 gal US 2,90 l
Nominal Engine speed 4.400 1/min 4.400 1/min
Electrode distance 0,020 - 0,032 "
Effective power 2,4 hp 1,8 KW
Cooling air cooling air cooling
Exhaust-gas limit China Stage 2 China Stage 2
Oil specification ISO-L-EGC ISO-L-EGC
Starter type Recoil starter Recoil starter
Operating power 2,4 hp 1,8 KW
Engine type Gasoline engine Gasoline engine
Cylinder 1 1
Engine Manufacturer Wacker Neuson Wacker Neuson
Standard (Operating power) ISO 3046-1 ISO 3046-1
Cylinder capacity 4,9 Inch3 80 cm3
Fuel Alkylate fuel/Oil mixture Alkylate fuel/Oil mixture
Spark plug(s) Champion RL86C Champion RL86C
Fuel mix ratio 1:100 1:100
Oil volume incl. filter change Recoil starter Recoil starter



MECHANICAL - OUTPUT DETAILS

 Imperial Metric
