Description

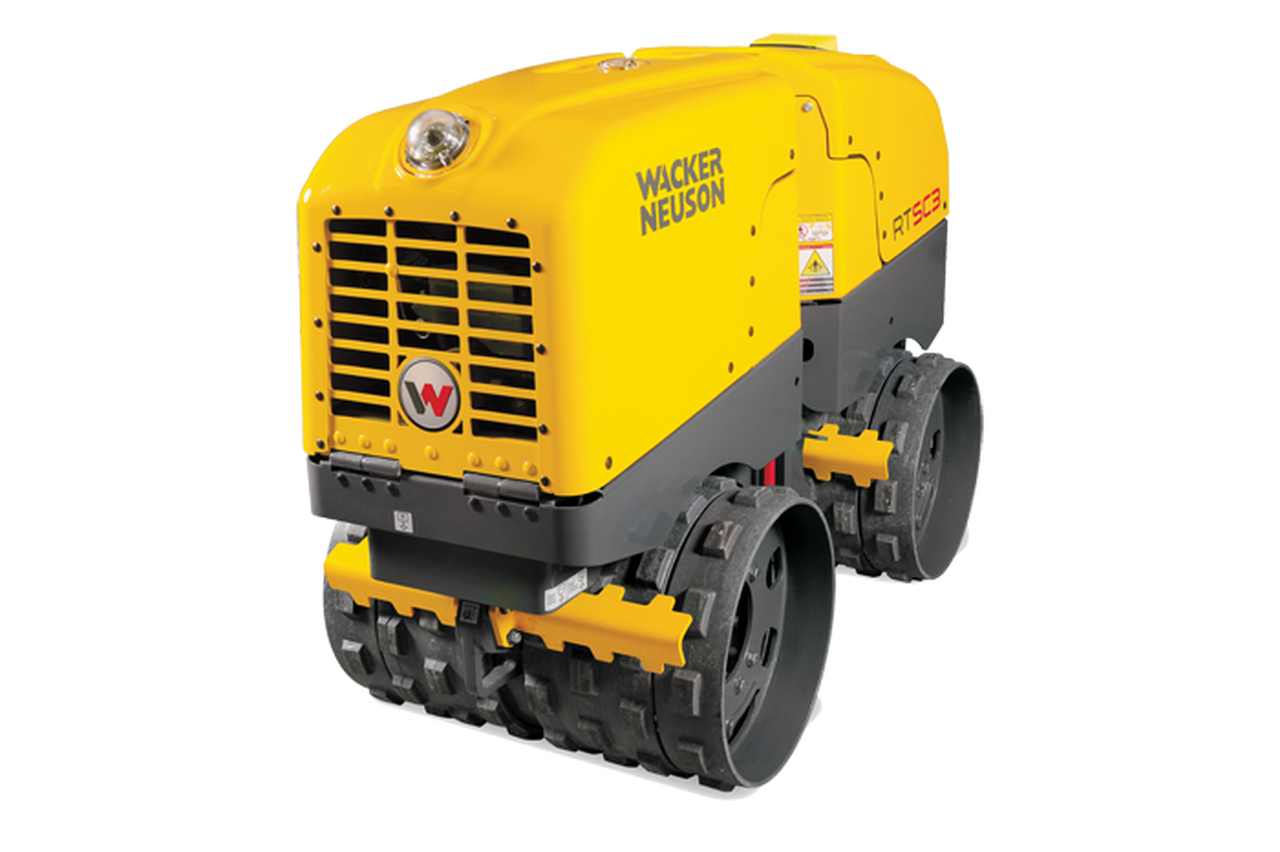

Wacker Neuson RTKX-SC3 Vibratory Trench Roller with Compatec , Remote Controlled, Kohler Engine, Flexible Drum��5100018516
Infrared remote controlled trench roller with flexible drum width for soil compaction, Kohler engine
- Articulated joint increases maneuverability
- Below the axle exciter in each drum improves compaction with Compatec compaction system
- Low center of gravity improves stability
- High and low compaction force
- Flexible drum allows convenient conversion of drum width to fit job needs.
- Maintenance-free lower end
- Engine control module with diagnostic LEDs
Remote Control
- Infrared technology requires operator to maintain line-of-sight
- Patented three receiving eye design eliminates provides uninterrupted operation
- Machine stops moving and vibrating if line of sight is lost or operator comes within one meter of roller's receiving eyes
- 16-channel transmission allows multiple rollers to be operated on job without interference
| GENERATOR |
Imperial |
Metric |
| Nominal speed |
3.600 1/min |
3.600 1/min |
| Output voltage |
12 V |
12 V |
| Output current 1~ |
33,0 A |
33,0 A |
| ENGINE |
Imperial |
Metric |
| Utilizable tank capacity |
SAE 15W-40 |
SAE 15W-40 |
| Power rating max. |
19,8 hp |
14,8 KW |
| Engine operating mode |
four-stroke |
four-stroke |
| Cooling |
water-cooling |
water-cooling |
| Oil specification |
SAE 15W-40 |
SAE 15W-40 |
| Operating Engine speed |
3.000 1/min |
3.000 1/min |
| Starter type |
E-starter |
E-starter |
| Battery Size BCI Group |
Kohler |
Kohler |
| Operating power |
3.000 1/min |
3.000 1/min |
| Oil filling min. |
19,8 hp |
14,8 KW |
| Engine type |
Diesel engine |
Diesel engine |
| Cylinder |
3 |
3 |
| Engine Manufacturer |
Kohler |
Kohler |
| Standard (Operating power) |
ISO 3046-1 |
ISO 3046-1 |
| Cylinder capacity |
62,7 Inch3 |
1.028 cm3 |
| Fuel |
Diesel EN 590 |
Diesel EN 590 |
| Oil volume incl. filter change |
E-starter |
E-starter |
| MECHANICAL - OUTPUT DETAILS |
Imperial |
Metric |
| Gradeability |
45,0 % |
45,0 % |
| Force/Drum��(dyn.) front |
7.644 lbf |
34 kN |
| Linear force��static (front) |
0,0 |
0,0 |
| Centrifugal force max. |
15.376,94 lbf |
68,400 kN |
| Force/Drum��(dyn.) rear |
7.644 lbf |
34 kN |
| Travel speed (reverse) |
0,8 - 1,6 m/H |
1,3 - 2,5 km/h |
| Oscillation Angle |
0 �� |
0 �� |
| Gradeability��max. (without vib |
50,0 % |
50,0 % |
| Linear force dynamic (low) |
0,0 |
0,0 |
| Linear force��static (rear) |
0,0 |
0,0 |
| Vibrations (Hz) |
