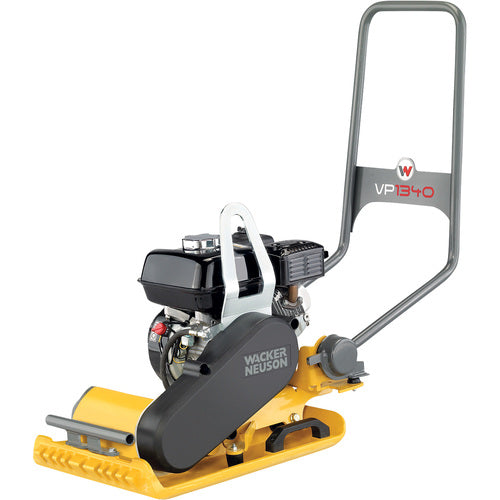

Wacker Neuson VP1340A Plate Compactor with Honda Engine, 15.2" Width, 2,923 lb Compaction Force

Wacker Neuson VP1340A Plate Compactor with Honda Engine, 15.2" Width, 2,923 lb Compaction Force

$2,300.00
$2,300.00
Sale Sold out
  • Wacker Neuson VP1340A Plate Compactor with Honda Engine, 15.2" Width, 2,923 lb Compaction Force
1 1
Wacker Neuson

Wacker Neuson VP1340A Plate Compactor with Honda Engine, 15.2" Width, 2,923 lb Compaction Force

Wacker Neuson VP1340A Plate Compactor with Honda Engine, 15.2" Width, 2,923 lb Compaction Force

Danse #: VP1340A
Mfr #: VP1340A
$2,300.00
$2,300.00
Sale Sold out
View full details

Description

Wacker Neuson VP1340A Plate Compactor with Honda Engine, 15.2" Width, 2,923 lb Compaction Force��

Operating weight 178,6 lb
Centrifugal force 2.923 lbf
Width 15,2 "
Engine Manufacturer Honda

��

Compact single direction vibratory plate, for occasional compaction work

  • Sturdy design for minimal maintenance effort: The V-belt drive with all-round protection provides for a particularly long operating duration of the V-belt. The base plate is made from wear resistant nodular cast iron.
  • A large sturdy lifting eye allows for secure transport. The guide handle that can be folded forward converts the unit into a compact unit in no time.
  • Accessories, paving stone sliding mechanism, wheel set as well as water tank with sprinkler set available here in the shop

��

OPERATING FLUIDS Imperial Metric
Exciter oil volume 0,26 qt US 0,25 l
Tank capacity 1,0 gal US 3,60 l
Exciter oil type 75W-90 API GL-4 75W-90 API GL-4
ENGINE Imperial Metric
Fuel management Carburettor Carburettor
Inclined position max. 20,0 �� 20,0 ��
Engine operating mode four-stroke four-stroke
Operating Engine speed 3.520 1/min 3.520 1/min
Fuel consumption 0,2 GPH US 0,80 L/hr
Standard (Power max.) SAE J1349 SAE J1349
Standard (Effective power) ISO 3046 IFN ISO 3046 IFN
Nominal Engine speed 3.600 1/min 3.600 1/min
Tank capacity 3,60 l
Electrode distance 0,7 - 0,8 mm
Effective power 4,8 hp 3,6 KW
Oil filling max. 0,2 gal US 0,60 l
Battery capacity (nom. value) 0 Ah 0 Ah
Air cleaner dry air filter dry air filter
Power rating max. 4,8 hp 3,6 KW
Cooling air cooling air cooling
Exhaust-gas limit EPA4/08 EPA4/08
Oil specification SAE 10W-30 SAE 10W-30
Starter battery Voltage 0 V 0 V
Engine speed (Power max.) 3.600 1/min 3.600 1/min
Starter type Recoil starter Recoil starter
Operating power 3,9 hp 2,9 KW
Oil filling min. 0,2 gal US 0,60 l
Engine type Gasoline engine Gasoline engine
Cylinder 1 1
Engine Manufacturer Honda Honda
