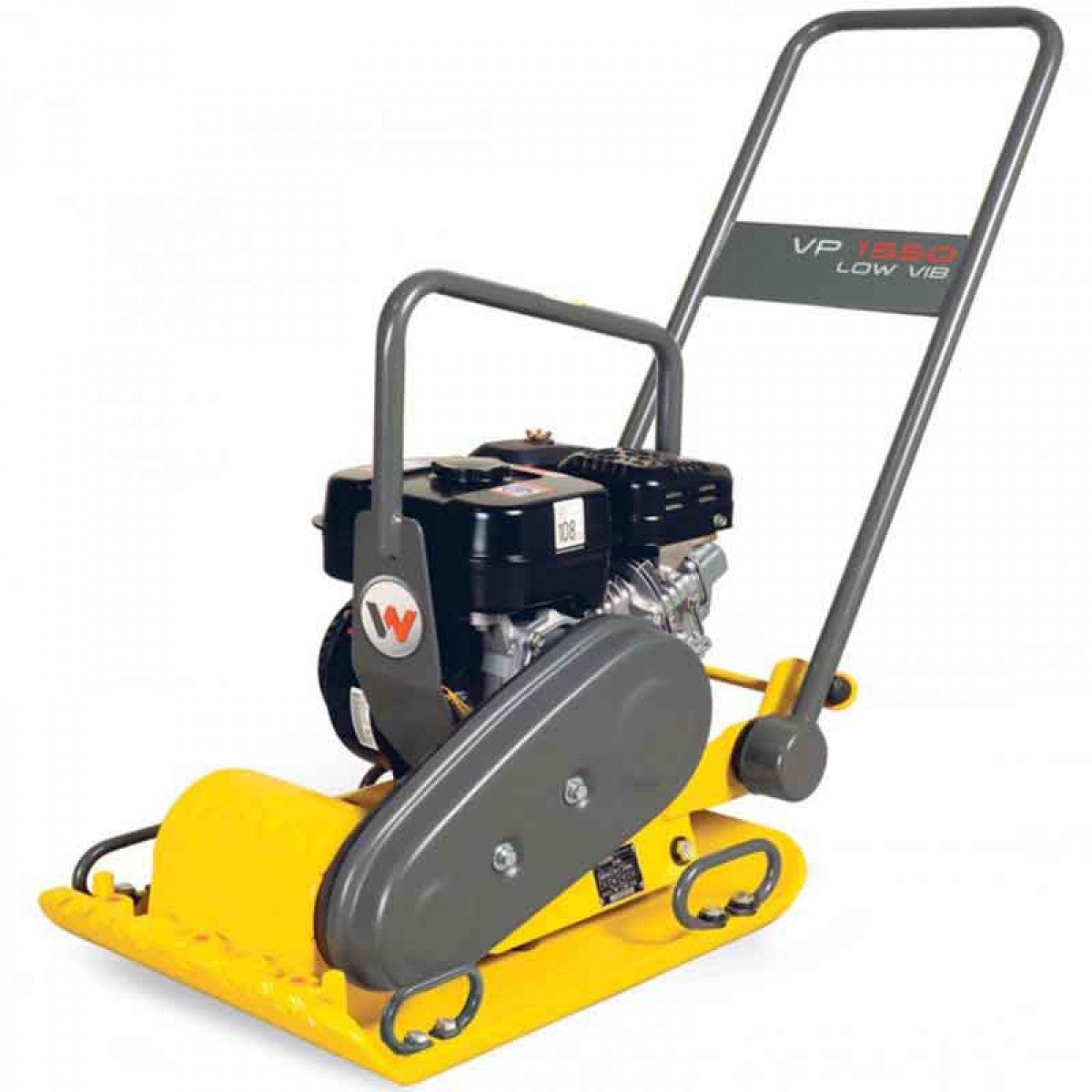

Wacker Neuson VP1550A Plate Compactor with 19.9" Width, 3372 lb Centrifugal Force, Honda Engine, Single Direction
Compact single direction vibratory plate for occasional compaction work.
- Sturdy design for minimum maintenance effort: The V-belt drive with all-round protection ensures a particularly long service life of the V-belt. The base plate is manufactured from wear-resistant nodular cast iron.
- A large heavy-duty lifting eye allows for safe transport. The front-folding guide handle converts the unit into a compact unit in no time.
- Optional paving stone sliding mechanism and wheel set available here in the shop
Features :
| OPERATING FLUIDS |
Metric |
| Tank capacity |
3,60 l |
| Exciter oil volume |
0,25 l |
| Exciter oil type |
75W-90 API GL-4 |
| ENGINE |
Metric |
| Inclined position max. |
20,0 ° |
| Fuel management |
Carburettor |
| Engine operating mode |
four-stroke |
| Operating Engine speed |
3.520 1/min |
| Fuel consumption |
0,80 L/Std |
| Standard (Power max.) |
SAE J1349 |
| Standard (Effective power) |
ISO 3046 IFN |
| Nominal Engine speed |
3.600 1/min |
| Electrode distance |
0,7 - 0,8 mm |
| Effective power |
3,6 kW |
| Oil filling max. |
0,60 l |
| Battery capacity (nom. value) |
0 Ah |
| Air cleaner |
dry air filter |
| Power rating max. |
3,6 kW |
| Cooling |
air cooling |
| Exhaust-gas limit |
EPA4/08 |
| Oil specification |
SAE 10W-30 |
| Starter battery Voltage |
0 V |
| Engine speed (Power max.) |
3.600 1/min |
| Starter type |
Recoil starter |
| Oil filling min. |
0,60 l |
| Operating power |
2,9 kW |
| Engine type |
Gasoline engine |
| Cylinder |
1 |
| Engine Manufacturer |
Honda |
| Standard (Operating power) |
ISO 3046 IFN |
| Cylinder capacity |
163 cm3 |
| Fuel |
Gasoline |
| Spark plug(s) |
NGK BP-6 ES |
| Oil volume incl. filter change |
