Description

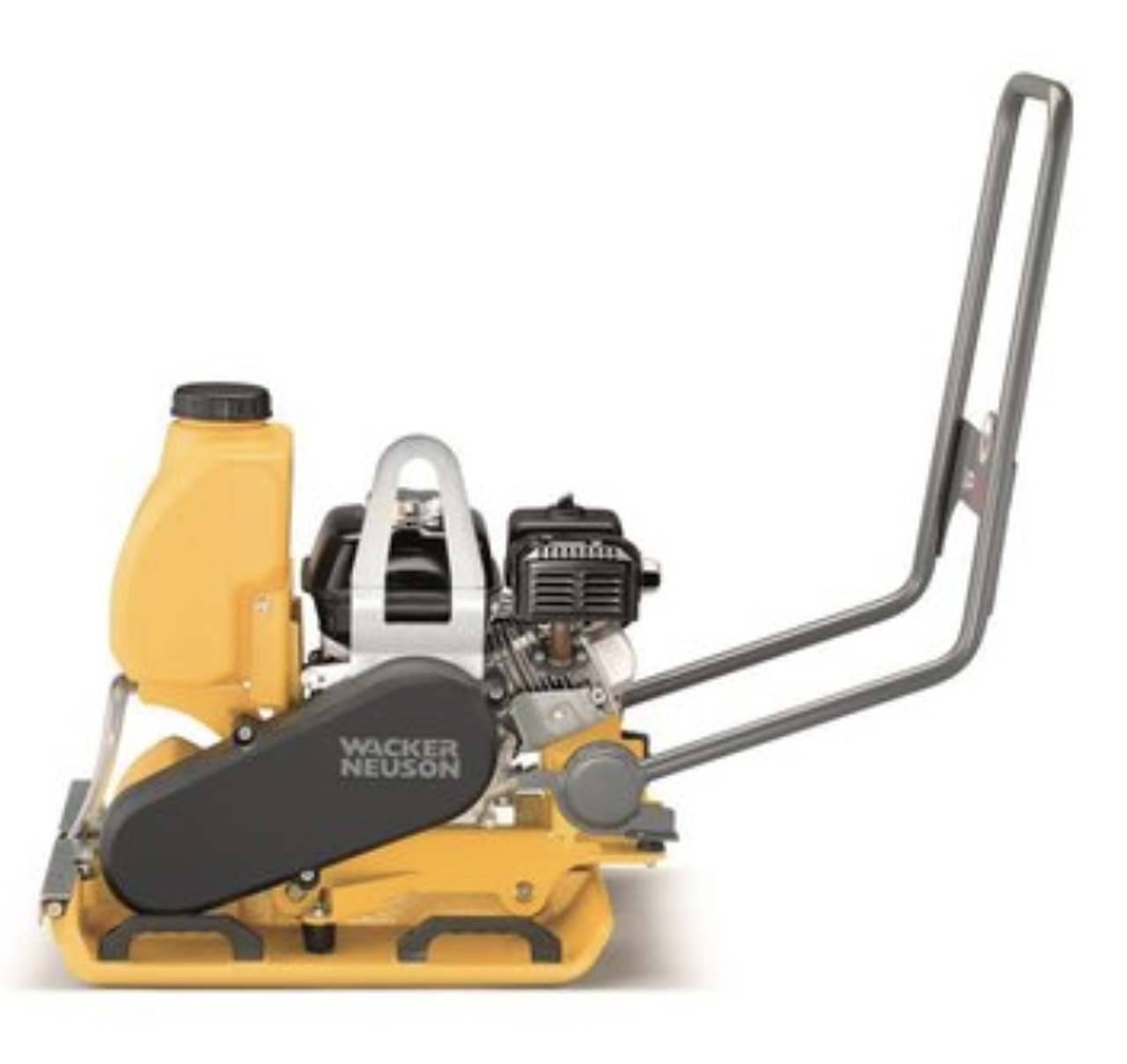

Wacker Neuson VP1550AW Single-Direction Plate Compactor with 15.2" wide plate, 3.372 lb force, Honda Engine & Water Tank 5100029054
| Operating weight |
224,9 lb |
| Centrifugal force |
3.372 lbf |
| Width |
15,2 " |
| Engine Manufacturer |
Honda |
Compact single direction vibratory plate, for occasional asphalt and compaction work.
- Flawless asphalt compaction: The chamfered edges of the base plate minimise the formation of stress edges when the vibratory plate turns.
- Sturdy design for minimal maintenance effort: The V-belt drive with all-round protection provides for a particularly long operating duration of the V-belt. The base plate is made from wear resistant nodular cast iron.
- A large sturdy lifting eye allows for secure transport. The guide handle that can be folded forward converts the unit into a compact unit in no time.
- Accessories, paving stone sliding mechanism and wheel set available here in the shop
| OPERATING FLUIDS |
Imperial |
Metric |
| Exciter oil volume |
0,26 qt US |
0,25 l |
| Tank capacity |
1,0 gal US |
3,60 l |
| Exciter oil type |
75W-90 API GL-4 |
75W-90 API GL-4 |
| ENGINE |
Imperial |
Metric |
| Fuel management |
Carburettor |
Carburettor |
| Inclined position max. |
20,0 ° |
20,0 ° |
| Engine operating mode |
four-stroke |
four-stroke |
| Operating Engine speed |
3.520 1/min |
3.520 1/min |
| Fuel consumption |
0,2 GPH US |
0,80 L/hr |
| Standard (Power max.) |
SAE J1349 |
SAE J1349 |
| Standard (Effective power) |
ISO 3046 IFN |
ISO 3046 IFN |
| Nominal Engine speed |
3.600 1/min |
3.600 1/min |
| Tank capacity |
3,60 l |
| Electrode distance |
0,7 - 0,8 mm |
| Effective power |
4,8 hp |
3,6 KW |
| Oil filling max. |
0,2 gal US |
0,60 l |
| Battery capacity (nom. value) |
0 Ah |
0 Ah |
| Air cleaner |
dry air filter |
dry air filter |
| Power rating max. |
4,8 hp |
3,6 KW |
| Cooling |
air cooling |
air cooling |
| Exhaust-gas limit |
EPA4/08 |
EPA4/08 |
| Oil specification |
SAE 10W-30 |
SAE 10W-30 |
| Starter battery Voltage |
0 V |
0 V |
