Description

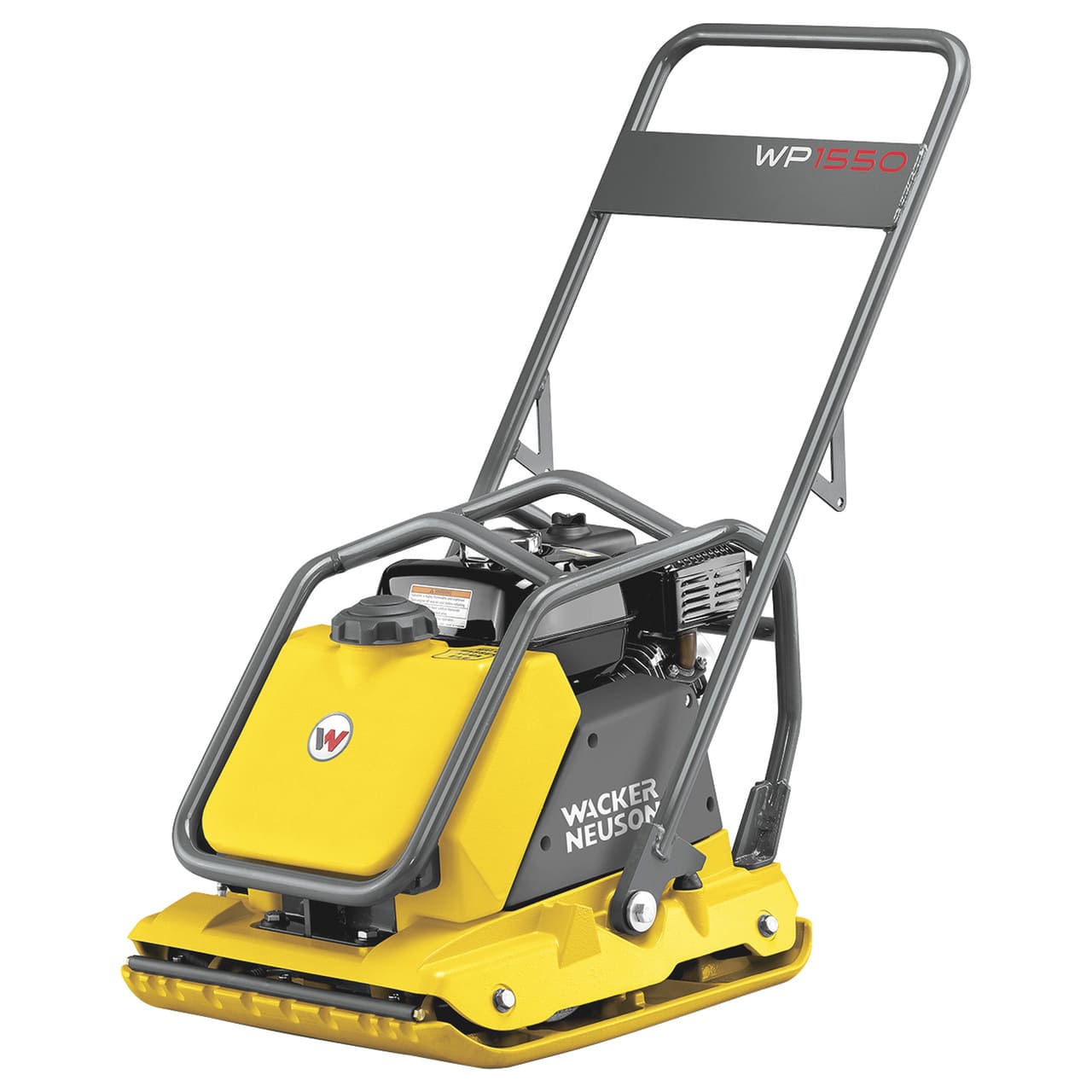

Wacker Neuson WP1550AW Single-Direction Plate Compactor with 19.6" wide plate, 3372 lb compaction force, Honda Engine & Water Tank. 5100018324
| Operating weight |
211,6 lb |
| Centrifugal force |
3.372 lbf |
| Width |
19,6 " |
| Engine Manufacturer |
Honda |
��
Compact single-direction vibratory plate that reliably compacts on any job site
- Flawless asphalt compaction: The beveled edges of the base plate minimize the formation of stressed edges when turning the vibratory plate
- The control handle allows for effortless rotating and turning
- Sturdy design for minimum maintenance effort: The V-belt drive with all-round protection ensures a particularly long service life of the V-belt. The base plate is manufactured from wear-resistant nodular cast iron
- A sturdy pipe frame reliably protects the engine and water tank
- Suspension points in the protective frame allow for safe transport. The front-folding guide handle converts the unit into a compact unit in no time
- Optional paving stone sliding mechanism, wheel set as well as water tank with sprinkling set available here in the shop
��
| OPERATING FLUIDS |
Imperial |
Metric |
| Exciter oil volume |
0,16 qt US |
0,15 l |
| Tank capacity |
1,0 gal US |
3,60 l |
| Exciter oil type |
75W-90 API GL-4 |
75W-90 API GL-4 |
|
ENGINE
|
Imperial |
Metric |
| Fuel management |
Carburettor |
Carburettor |
| Inclined position max. |
20,0 �� |
20,0 �� |
| Engine operating mode |
four-stroke |
four-stroke |
| Operating Engine speed |
3.520 1/min |
3.520 1/min |
| Fuel consumption |
0,2 GPH US |
0,80 L/hr |
| Standard (Power max.) |
SAE J1349 |
SAE J1349 |
| Standard (Effective power) |
ISO 3046 IFN |
ISO 3046 IFN |
| Tank capacity |
1,0 gal US |
3,60 l |
| Nominal Engine speed |
3.600 1/min |
3.600 1/min |
| Electrode distance |
0,028 - 0,032 " |
0,7 - 0,8 mm |
| Effective power |
4,8 hp |
3,6 KW |
| Oil filling max. |
0,2 gal US |
0,60 l |
| Battery capacity (nom. value) |
0 Ah |
0 Ah |
| Air cleaner |
Cyclone air filter |
Cyclone air filter |
| Power rating max. |
4,8 hp |
3,6 KW |
| Cooling |
air cooling |
air cooling |
| Exhaust-gas limit |
EPA4/08 |
EPA4/08 |
| Oil specification |
SAE 10W-30 |
