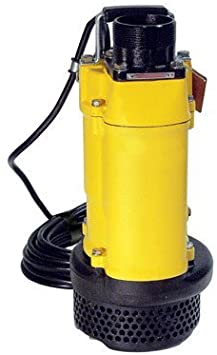

Wacker PS3 2203 3 inch Submersible Pump 3 HP 203.4 GPM
Portable, Three phase submersible pumps are designed to handle water and solids. Built for the demands of construction, mining, municipality and farm applications.
Features :
- Compact slim line design in a rugged cast iron case
- Top discharge, flow-through design enables operation at low water levels for extended periods
- Durable high chrome impeller with ductile iron wear plate reduces wear when pumping abrasive materials
- Heavy-duty power cord with strain relief resists pullout and abrasion reducing costly repairs
- Insulation on all conductors of the power cable are protected by a water block system to prevent wicking of water into the motor
- Silicon carbide double mechanical seals run in an oil-filled cavity allowing for seal lubrication, cooling and overall motor protection
- Additional lip seal protects mechanical seal from abrasive wear due to suspended debris in pumping fluid
- High efficiency, continuous duty motor with built-in thermal and over current motor protection increases motor life
Specifications:
Dimensions
L x W x H in : 9.25 x 8.50 x
19.61
Diameter Discharge in : 3 Inch
Operating weight lb : 71 lbs
Cable length ft : 50
Cable Size AWG : 16
Operating data
Total head ft : 66.93
Discharge capacity US gpm : 203.4
Solids diameter in : 0.334
Engine / Motor type : 60 Hz 3~
Operating voltage V : 220 / 440
Current Full Load A : 9.3 / 4.7
Current Start A : 73 / 36
at rpm rpm : 3,435
Refer to the attached sheet for in depth specifications
