WEKA DK11 Core Drill Parts By Core Bore Diamond Products

WEKA DK11 Core Drill Parts By Core Bore Diamond Products

  • WEKA DK11 Core Drill Parts By Core Bore Diamond Products
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
8
2706530 Armature w- fan + bearing110 V for DK11 WEKA Core Cut by Diamond Products
$544.80
5
2707773 Rear switch handle for DK11 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
10
2701335 Field 230 V for DK11 WEKA Core Cut by Diamond Products
$250.80
10
2700656 Field 110 V for DK11 WEKA Core Cut by Diamond Products
$244.80
65
2707784 Motor switch230V/110V for DK11 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
59
2707785 Motor strand1,52x240 for DK11 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
38
2700825 Hex socker head ssrewM5x45 for DK11 WEKA Core Cut by Diamond Products
$3.99
105
2700693 Clamp Ring for DK11 WEKA Core Cut by Diamond Products
$85.88
115
2704123 Drill Spindle M33x3,5/3 for DK11 WEKA Core Cut by Diamond Products
$223.20
145
2700704 Pressure Disk for DK11 WEKA Core Cut by Diamond Products
$22.22
155
2704689 Locking Sleeve for DK11 WEKA Core Cut by Diamond Products
$44.47
160
2704690 Locking Knob for DK11 WEKA Core Cut by Diamond Products
$32.47
165
2704688 Locking Pin for DK11 WEKA Core Cut by Diamond Products
$30.88
175
2702595 Junction Hose5/8x110 for DK11 WEKA Core Cut by Diamond Products
$4.99
185
2702594 Quick Connect NippleG1/4"/8 for DK11 WEKA Core Cut by Diamond Products
$23.33
205
2700709 Needle BushHK1010 for DK11 WEKA Core Cut by Diamond Products
$18.62
210
2700710 O-RingRDR78x2 for DK11 WEKA Core Cut by Diamond Products
$6.99
220
2704692 O-RingRDR7x1,5 for DK11 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
225
2704693 O-RingRDR3,5x1,2 for DK11 WEKA Core Cut by Diamond Products
$2.99
240
2700715 Ball Valve G1/4"i/i for DK13 WEKA Core Cut by Diamond Products
$40.05
245
2700717 Sealing Ring G 1/4" for DK52 WEKA Core Cut by Diamond Products
$3.99
250
2700718 Disk Spring28x14,2x1,5 for DK11 WEKA Core Cut by Diamond Products
$15.22
255
2704691 Pressure Spring0,8x5x12 for DK11 WEKA Core Cut by Diamond Products
$6.99
260
2700811 BallRB-5 for DK11 WEKA Core Cut by Diamond Products
$3.99
265
2700722 Parallel Pin 4m6x10 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
270
2700726 Retaining Ring AV14 for DK12/DK16 WEKA Core Cut by Diamond Products
$4.99
290
2702506 Hexagon Socket ScrewM5x70 for DK11 WEKA Core Cut by Diamond Products
$4.99
295
2700732 Hex. Soc. Hd Screw M5x50 for DK13 WEKA Core Cut by Diamond Products
$3.99
300
2700734 Wing Screw M6x40 for DK12/DK16 WEKA Core Cut by Diamond Products
$6.99
310
2700735 Locking Washer for DK22 WEKA Core Cut by Diamond Products
$2.99
315
2700736 Medium Washer A 6 for DK12/DK16 WEKA Core Cut by Diamond Products
$2.99
315
2701483 Carrying Case for DK11 WEKA Core Cut by Diamond Products
$172.26
44
2700676 Pan Head Tap Screw3,9x19 for DK11 WEKA Core Cut by Diamond Products
$2.99
170
2700706 Quick Connect Nipple for DK11 WEKA Core Cut by Diamond Products
$29.42
215
2700712 O-RingRDR11x2,5 for DK11 WEKA Core Cut by Diamond Products
$3.99
190
2700707 Handle for DK11 WEKA Core Cut by Diamond Products
$44.83
View full details

Frequently asked questions

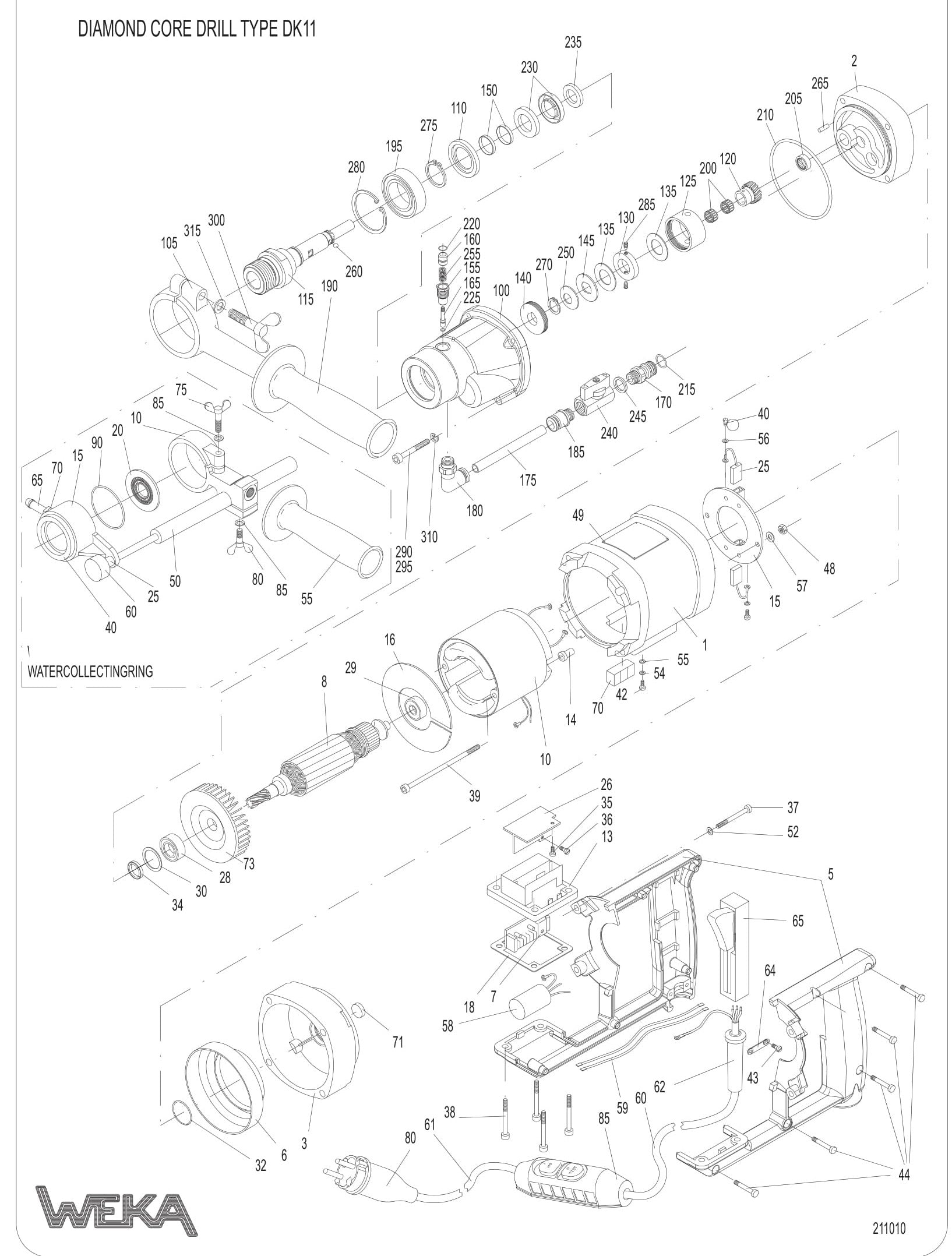

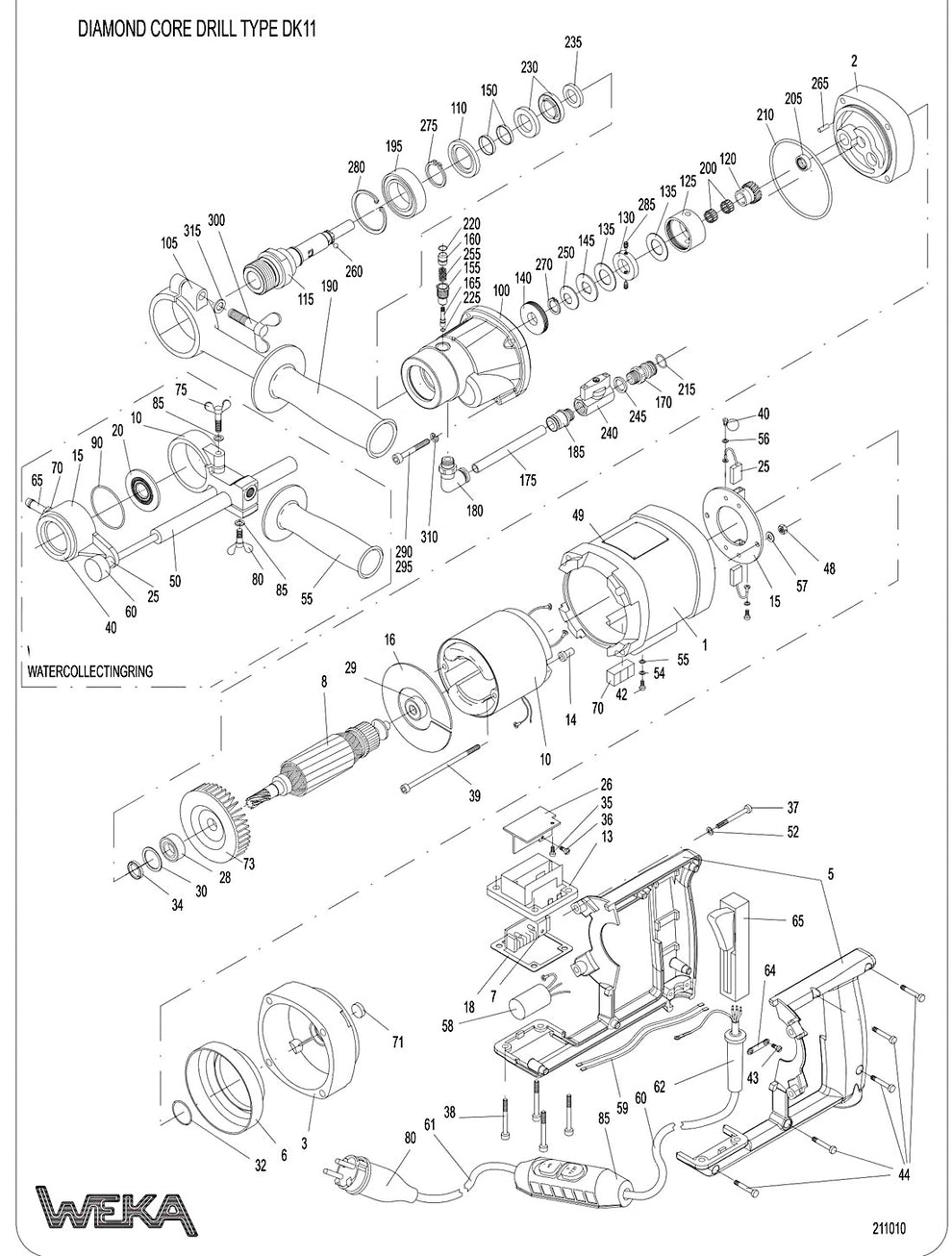

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
