WEKA DK12, WEKA DK16 Core Drill Parts By Core Bore Diamond Products

WEKA DK12, WEKA DK16 Core Drill Parts By Core Bore Diamond Products

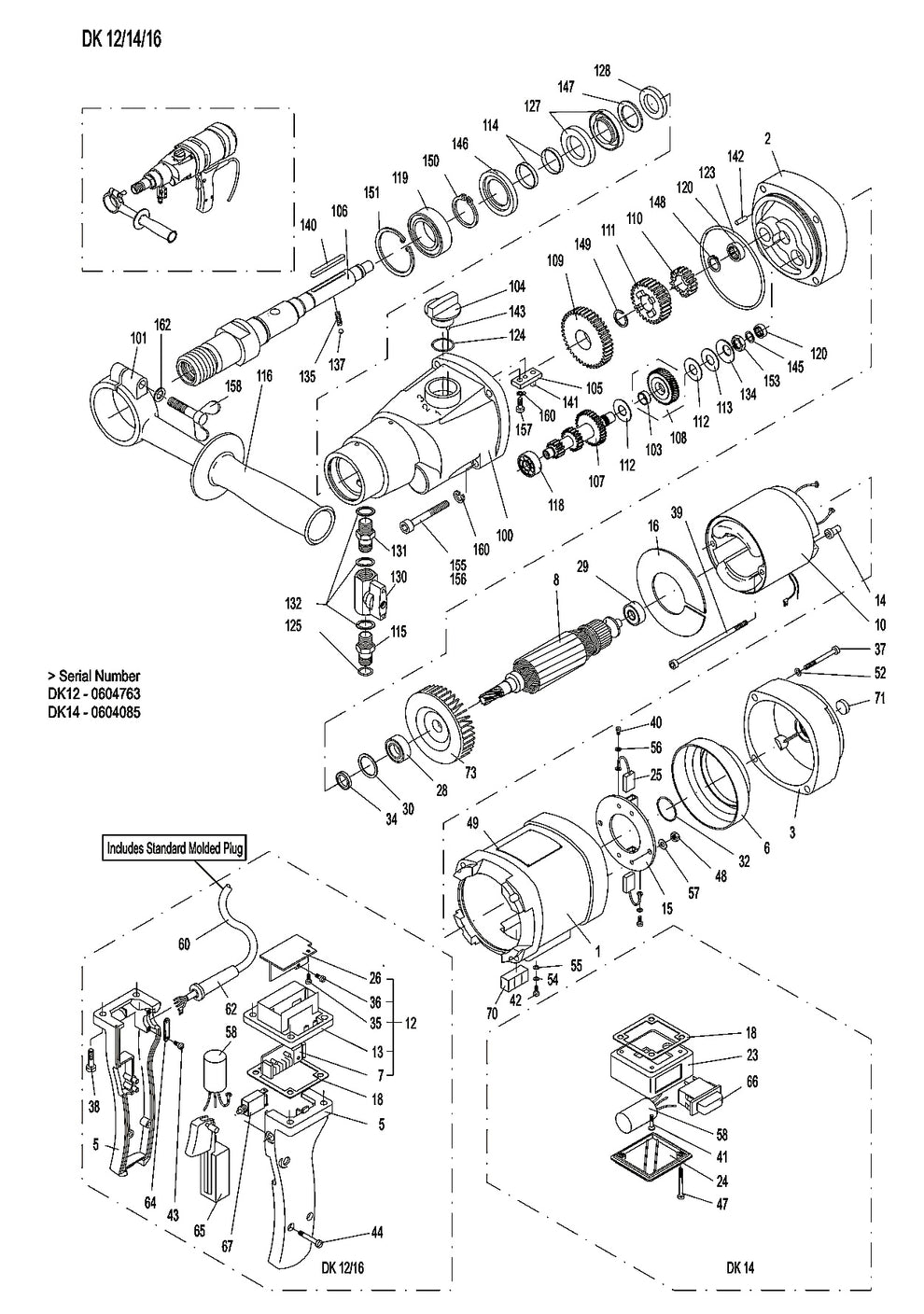

  • WEKA DK12 Core Drill Parts By Core Bore Diamond Products
1 1
100% genuine product
Authorised dealer

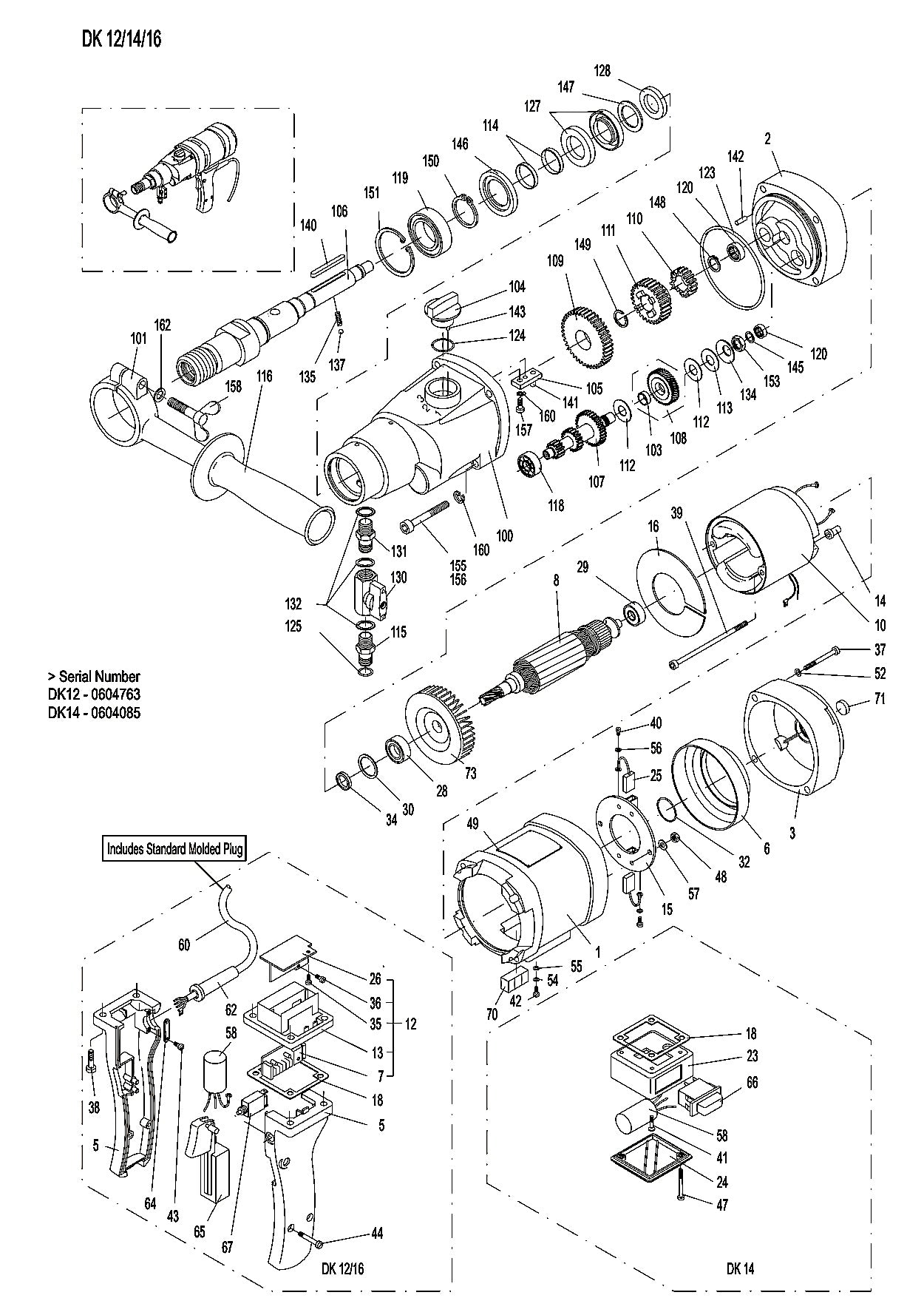

Ref. Product details Price Qty Action
1
2700650 Motor case for DK12/DK16 WEKA Core Cut by Diamond Products
$232.80
2
2703238 Intermediate Flange for DK12/DK16 WEKA Core Cut by Diamond Products
$132.00
3
2700652 Motor Top Hood w. Insulation Ring for DK12/DK16 WEKA Core Cut by Diamond Products
$126.00
5
2701453 Switch Handle 230 V for DK12/DK16 WEKA Core Cut by Diamond Products
$70.45
5
2701452 Switch handle 110 V for DK12/DK16 WEKA Core Cut by Diamond Products
$88.00
6
2701197 Insulation Ring for DK12/DK16 WEKA Core Cut by Diamond Products
$29.70
7
2701383 Electronic Module 230V for DK12/DK16 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
7
2703455 Electronic Module 230V for DK12/DK16 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
7
2704187 Electronic Module 110V for DK12/DK16 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
8
2703239 Armature with Fan and Bearings 230V for DK12/DK16 WEKA Core Cut by Diamond Products
$438.00
8
2703240 Armature with Fan and Bearings 110V for DK12/DK16 WEKA Core Cut by Diamond Products
$440.40
8
2705205 Armature with Fan and bearings 230V for DK12/DK16 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
8
2705206 Armature with Fan and bearings 110V for DK12/DK16 WEKA Core Cut by Diamond Products
$463.20
10
2701335 Field 230V for DK12/DK16 WEKA Core Cut by Diamond Products
$250.80
10
2700656 Field 110V for DK12/DK16 WEKA Core Cut by Diamond Products
$244.80
10
2705207 Field 230V for DK12/DK16 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
10
2705208 Field 110V for DK12/DK16 WEKA Core Cut by Diamond Products
$248.40
10
2703242 Exchange Seal Bush for DK12/DK16 WEKA Core Cut by Diamond Products
$34.27
12
2705209 Electronic module completely sealed 230V for DK12/DK16 WEKA Core Cut by Diamond Products
$142.80
12
2705210 Electronic module completely sealed 110V for DK12/DK16 WEKA Core Cut by Diamond Products
$162.00
12
2705211 Electronic module completely sealed 230V for DK12/DK16 WEKA Core Cut by Diamond Products
$150.00
12
2705212 Electronic module completely sealed 110V for DK12/DK16 WEKA Core Cut by Diamond Products
$145.20
13
2701354 Electronic Case 230V for DK12/DK16 WEKA Core Cut by Diamond Products
$40.48
14
2700659 Field screw insulating sleeve for DK12/DK16 WEKA Core Cut by Diamond Products
$10.69
15
2700660 Brush Holder Disc 110V for DK12/DK16 WEKA Core Cut by Diamond Products
$60.23
16
2700662 Air Conducting Disc for DK12/DK16 WEKA Core Cut by Diamond Products
$10.28
18
2701567 Terminal Case Packing for DK12/DK16 WEKA Core Cut by Diamond Products
$6.99
23
2702244 Terminal Case for DK12/DK16 WEKA Core Cut by Diamond Products
$55.70
24
2702241 Terminal Case Cover for DK12/DK16 WEKA Core Cut by Diamond Products
$37.22
25
2701336 Carbon Brush 230 V for DK12/DK16 WEKA Core Cut by Diamond Products
$15.61
25
2700663 Carbon Brush 110 V for DK12/DK16 WEKA Core Cut by Diamond Products
$18.05
26
2701385 Cooling Profile for DK12/DK16 WEKA Core Cut by Diamond Products
$17.46
28
2700664 Ball Bearing for DK12/DK16 WEKA Core Cut by Diamond Products
$23.39
29
2700665 Ball Bearing for DK12/DK16 WEKA Core Cut by Diamond Products
$23.87
30
2700666 Compensation Washer for DK12/DK16 WEKA Core Cut by Diamond Products
$4.99
32
2700667 O-Ring RDR26x25 for DK12/DK16 WEKA Core Cut by Diamond Products
$4.99
34
2703241 Rotary Shaft Seal RWD12x24x7 for DK12/DK16 WEKA Core Cut by Diamond Products
$23.22
35
2706217 Th. Roll. Cheese Head Screw M4x8 for DK12/DK16 WEKA Core Cut by Diamond Products
$2.99
36
2701386 Th. Roll. Cheese Head Screw M4x6 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
37
2700670 Hex. Soc. Head Screw M5x35 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
38
2701203 Hex. Soc. Head Screw M5x25 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
39
2700672 Fill. Head Screw M4x100 for DK12/DK16 WEKA Core Cut by Diamond Products
$6.99
40
2700673 Fill. Head Screw M3x5 for DK12/DK16 WEKA Core Cut by Diamond Products
$2.99
42
2700674 Sl. Pan Head Screw M4x6 for DK12/DK16 WEKA Core Cut by Diamond Products
$2.99
43
2702986 Pan Head Tapping Screw 39x13 for DK12/DK16 WEKA Core Cut by Diamond Products
$2.99
44
2700676 Pan Head Tapping Screw 39x19 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
47
2702243 Raised Cheese Head Screw M5x50 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
48
2700677 Hexagon Nut M4 for DK12/DK16 WEKA Core Cut by Diamond Products
$2.99
49
2701399 Round Head grooved Pin 23x4 for DK12/DK16 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
52
2700735 Locking Washer SM5 for DK12/DK16 WEKA Core Cut by Diamond Products
$2.99
160
2700735 Locking Washer SM5 for DK12/DK16 WEKA Core Cut by Diamond Products
$2.99
54
2700680 Curved Spring Washer A4 for DK12/DK16 WEKA Core Cut by Diamond Products
$2.99
55
2700681 Medium Washer 43x8x05 Ms for DK12/DK16 WEKA Core Cut by Diamond Products
$2.99
56
2700682 Medium Washer 32x6x05 Ms for DK12/DK16 WEKA Core Cut by Diamond Products
$2.99
57
2703456 Medium Washer 43x9x1 Ms for DK12/DK16 WEKA Core Cut by Diamond Products
$2.99
58
2700683 Interference Suppression Capacitor for DK12/DK16 WEKA Core Cut by Diamond Products
$16.26
60
2707774 Cord 3AWG14x4 -w/molded plug for USA for DK12/DK16 WEKA Core Cut by Diamond Products
$60.26
62
2700685 Cord Sleeve for DK12/DK16 WEKA Core Cut by Diamond Products
$9.80
63
2701451 Cord Gland for DK12/DK16 WEKA Core Cut by Diamond Products
$12.55
64
2700686 Cord Clamping Piece for DK12/DK16 WEKA Core Cut by Diamond Products
$10.30
65
2701454 Motor Switch for DK12/DK16 WEKA Core Cut by Diamond Products
$72.27
66
2701979 Motor Switch 110 V for DK12/DK16 WEKA Core Cut by Diamond Products
$118.00
67
2700688 Motor Protective Switch 110 V for DK12/DK16 WEKA Core Cut by Diamond Products
$63.37
70
2700690 Tube Water-Level for DK12/DK16 WEKA Core Cut by Diamond Products
$11.44
71
2700691 Tin Water-Level for DK12/DK16 WEKA Core Cut by Diamond Products
$12.82
73
2700692 Fan for DK12/DK16 WEKA Core Cut by Diamond Products
$31.36
100
2700936 Gear Box for DK12/DK16 WEKA Core Cut by Diamond Products
$252.00
101
2700693 Clamp Ring incl. wing screw for DK12/DK16 WEKA Core Cut by Diamond Products
$85.88
103
2700699 Bearing Socket for DK12/DK16 WEKA Core Cut by Diamond Products
$16.46
104
2700694 Gear Change Grip for DK12/DK16 WEKA Core Cut by Diamond Products
$55.07
105
2700695 Gear Change Lever for DK12/DK16 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
105
2701925 Gear Change Lever for DK12/DK16 WEKA Core Cut by Diamond Products
$31.61
106
2700696 Drilling Spindle cpl. with Pos. 114,135,137 for DK12/DK16 WEKA Core Cut by Diamond Products
$168.00
106
2701395 Tool Thread 1 1/4 + G 1/2 for DK12/DK16 WEKA Core Cut by Diamond Products
$218.40
107
2700697 Pinion Shaft for DK12/DK16 WEKA Core Cut by Diamond Products
$158.40
107
2703451 Pinion Shaft for DK12/DK16 WEKA Core Cut by Diamond Products
$169.20
108
2700698 Clutch Wheel for DK12/DK16 WEKA Core Cut by Diamond Products
$88.58
109
2700700 Gear Wheel 1 for DK12/DK16 WEKA Core Cut by Diamond Products
$118.38
109
2703452 Gear Wheel 1 for DK12/DK16 WEKA Core Cut by Diamond Products
$128.40
110
2700701 Gear Wheel 3 for DK12/DK16 WEKA Core Cut by Diamond Products
$87.16
110
2703453 Gear Wheel 3 for DK12/DK16 WEKA Core Cut by Diamond Products
$103.79
111
2700702 Slide Gear Wheel for DK12/DK16 WEKA Core Cut by Diamond Products
$152.40
111
2703454 Slide Gear Wheel for DK12/DK16 WEKA Core Cut by Diamond Products
$164.40
112
2700703 Brake Disk for DK12/DK16 WEKA Core Cut by Diamond Products
$15.40
113
2700704 Pressure Disk for DK12/DK16 WEKA Core Cut by Diamond Products
$22.22
114
2700643 Protective Sleeve for DK12/DK16 WEKA Core Cut by Diamond Products
$19.38
115
2700706 Quick Connect Nipple for DK12/DK16 WEKA Core Cut by Diamond Products
$29.42
116
2700707 Handle for DK12/DK16 WEKA Core Cut by Diamond Products
$44.83
118
2700948 Ball Bearing 629 for DK12/DK16 WEKA Core Cut by Diamond Products
$19.01
119
2700708 Ball Bearing 6005 2RS for DK12/DK16 WEKA Core Cut by Diamond Products
$13.29
120
2700709 Needle Bush HK1010 for DK12/DK16 WEKA Core Cut by Diamond Products
$18.62
123
2700710 O-Ring RDR78x2 for DK12/DK16 WEKA Core Cut by Diamond Products
$6.99
124
2700711 O-Ring RDR20x3 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
125
2700712 O-Ring RDR11x25 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
127
2700713 Rotary Shaft Seal AD24x40x7 for DK12/DK16 WEKA Core Cut by Diamond Products
$18.58
128
2700714 Rotary Shaft Seal AD22x35x7 for DK12/DK16 WEKA Core Cut by Diamond Products
$15.00
130
2700715 Ball Valve G1/4i/i for DK12/DK16 WEKA Core Cut by Diamond Products
$40.05
130
2700925 Grip for Ball Valve for DK12/DK16 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
131
2700716 Douple Nipple G1/4a for DK12/DK16 WEKA Core Cut by Diamond Products
$13.81
132
2700717 Sealing Ring G1/4 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
134
2700718 Disk Spring for DK12/DK16 WEKA Core Cut by Diamond Products
$15.22
135
2700719 Pressure Spring 05x32x16 for DK12/DK16 WEKA Core Cut by Diamond Products
$7.06
137
2700720 Ball RB-4 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
140
2701087 Parallel Key A5x5x40 for DK12/DK16 WEKA Core Cut by Diamond Products
$4.99
141
2701065 Parallel Pin 5m6x15 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
142
2700722 Parallel Pin 4m6x10 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
143
2700723 Parallel Pin 3m6x16 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
145
2700724 Shim Ring PS10x16x1 for DK12/DK16 WEKA Core Cut by Diamond Products
$2.99
146
2700992 Supporting Ring for DK12/DK16 WEKA Core Cut by Diamond Products
$15.56
147
2701088 Shim Ring PS25x40x03 for DK12/DK16 WEKA Core Cut by Diamond Products
$10.08
148
2700726 Retaining Ring AV14 for DK12/DK16 WEKA Core Cut by Diamond Products
$4.99
149
2700727 Retaining Ring SW18 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
150
2700728 Retaining Ring 25x12 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
151
2700729 Retaining Ring 47x175 for DK12/DK16 WEKA Core Cut by Diamond Products
$6.99
153
2700730 Hexagon Nut BM12x15 for DK12/DK16 WEKA Core Cut by Diamond Products
$4.99
155
2700731 Hex. Soc. Head Screw M5x80 for DK12/DK16 WEKA Core Cut by Diamond Products
$6.99
156
2700732 Hex. Soc. Head Screw M5x50 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
157
2700733 Hex. Soc. Head Screw M5x12 for DK12/DK16 WEKA Core Cut by Diamond Products
$2.99
158
2700734 Wing Screw M6x40 for DK12/DK16 WEKA Core Cut by Diamond Products
$6.99
162
2700736 Medium Washer A 6 for DK12/DK16 WEKA Core Cut by Diamond Products
$2.99
162
2700737 Pointing Sticker for DK12/DK16 WEKA Core Cut by Diamond Products
$9.37
162
2700738 Gear Oil 160 ml for DK12/DK16 WEKA Core Cut by Diamond Products
$10.45
162
2701483 Carrying Case for DK12/DK16 WEKA Core Cut by Diamond Products
$172.26
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
