WEKA DK13 Core Drill Parts By Core Bore Diamond Products

WEKA DK13 Core Drill Parts By Core Bore Diamond Products

  • WEKA DK13 Core Drill Parts By Core Bore Diamond Products
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2700650 Motorcase for DK13 WEKA Core Cut by Diamond Products
$232.80
2
2703238 Intermediate Flange for DK13 WEKA Core Cut by Diamond Products
$132.00
3
2700652 Motor Top Hood for DK13 WEKA Core Cut by Diamond Products
$126.00
5
2701453 Switch Handle 230V for DK13 WEKA Core Cut by Diamond Products
$70.45
5
2701452 Switch handle 110V for DK13 WEKA Core Cut by Diamond Products
$89.00
6
2701197 Insulation Ring for DK13 WEKA Core Cut by Diamond Products
$29.70
8
2703239 Armature w-Fan/Bearings 230V for DK13 WEKA Core Cut by Diamond Products
$438.00
8
2703240 Armature w-Fan/Bearings 110V for DK13 WEKA Core Cut by Diamond Products
$440.40
10
2701335 Field 230V for DK13 WEKA Core Cut by Diamond Products
$250.80
10
2700656 Field 110V for DK13 WEKA Core Cut by Diamond Products
$244.80
10
2703242 Exchange Seal Bush for DK13 WEKA Core Cut by Diamond Products
$34.27
12
2705209 Electronic module comp 230V for DK13 WEKA Core Cut by Diamond Products
$142.80
12
2705210 Electronic module comp 110V for DK13 WEKA Core Cut by Diamond Products
$162.00
13
2701354 Eletronic Case for DK13 WEKA Core Cut by Diamond Products
$40.48
14
2700659 Fieldscrew Insulating Sleeve for DK13 WEKA Core Cut by Diamond Products
$10.69
15
2707857 Brush Holder Disk 230 V for DK13 WEKA Core Cut by Diamond Products
$69.46
15
2700660 Brush Holder Disk 110 V for DK13 WEKA Core Cut by Diamond Products
$60.23
16
2700662 Air Conducting Disk for DK13 WEKA Core Cut by Diamond Products
$10.28
18
2701567 Terminal Case Packing for DK13 WEKA Core Cut by Diamond Products
$6.99
25
2701336 Carbon Brush 230 V for DK13 WEKA Core Cut by Diamond Products
$15.61
25
2700663 Carbon Brush 110 V for DK13 WEKA Core Cut by Diamond Products
$18.05
26
2701385 Cooling Profile 230 V for DK13 WEKA Core Cut by Diamond Products
$17.46
28
2700664 Ball Bearing for DK13 WEKA Core Cut by Diamond Products
$23.39
29
2700665 Ball Bearing for DK13 WEKA Core Cut by Diamond Products
$23.87
30
2700666 Compensation Washer for DK13 WEKA Core Cut by Diamond Products
$4.99
32
2700667 O-Ring RDR26x2,5 for DK13 WEKA Core Cut by Diamond Products
$4.99
34
2703241 Rotary Shaft Seal RWD12x24x7 for DK13 WEKA Core Cut by Diamond Products
$23.22
35
2706217 Screw M4x8 for DK13 WEKA Core Cut by Diamond Products
$2.99
36
2701386 Screw M4x6 for DK13 WEKA Core Cut by Diamond Products
$3.99
37
2700670 Hex. Soc. Head Screw M5x35 for DK13 WEKA Core Cut by Diamond Products
$3.99
38
2701203 Hex. Soc. Head Screw M5x25 for DK13 WEKA Core Cut by Diamond Products
$3.99
39
2700672 Fill. Head Screw M4x100 for DK13 WEKA Core Cut by Diamond Products
$6.99
40
2700673 Fill. Head Screw M3x5 for DK13 WEKA Core Cut by Diamond Products
$2.99
42
2700674 Sl. Pan Head Screw M4x6 for DK13 WEKA Core Cut by Diamond Products
$2.99
43
2700675 Pan Head Tapping Screw for DK13 WEKA Core Cut by Diamond Products
$2.99
44
2700676 Pan Head Tapping Screw for DK13 WEKA Core Cut by Diamond Products
$3.99
48
2700677 Hexagon Locking Nut M4 for DK13 WEKA Core Cut by Diamond Products
$2.99
49
2701399 Round Head grooved Pin 2,3x4 for DK13 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
52
2700735 Locking Washer SM5 for DK13 WEKA Core Cut by Diamond Products
$2.99
216
2700735 Locking Washer SM5 for DK13 WEKA Core Cut by Diamond Products
$2.99
54
2700680 Curved Spring Washer A4 for DK13 WEKA Core Cut by Diamond Products
$2.99
55
2700681 Medium Washer 4,3x8x0,5 Ms for DK13 WEKA Core Cut by Diamond Products
$2.99
56
2700682 Medium Washer 3,2x6x0,5 Ms for DK13 WEKA Core Cut by Diamond Products
$2.99
57
2703457 Medium Washer 4,3x12x1 Ms for DK13 WEKA Core Cut by Diamond Products
$2.99
58
2700683 Int. Suppr. Capacitor for DK13 WEKA Core Cut by Diamond Products
$16.26
60
2707774 Cord 3AWG14x4 w-molded plug for DK13 WEKA Core Cut by Diamond Products
$60.26
62
2700685 Cord Sleeve for DK13 WEKA Core Cut by Diamond Products
$9.80
64
2700686 Cord Clamping Piece for DK13 WEKA Core Cut by Diamond Products
$10.30
65
2701454 Motor Switch for DK13 WEKA Core Cut by Diamond Products
$62.27
67
2700688 Motor Protective Switch 110 V for DK13 WEKA Core Cut by Diamond Products
$63.37
70
2700690 Tube Water-Level for DK13 WEKA Core Cut by Diamond Products
$11.44
71
2700691 Tin Water-Level for DK13 WEKA Core Cut by Diamond Products
$12.82
73
2700692 Fan for DK13 WEKA Core Cut by Diamond Products
$31.36
73
2700737 Adhesive Sticker for DK13 WEKA Core Cut by Diamond Products
$9.37
73
2701483 Carrying Case for DK13 WEKA Core Cut by Diamond Products
$172.26
100
2701849 Gear Box for DK13 WEKA Core Cut by Diamond Products
$271.20
102
2700693 Clamp Ring incl. wing screw for DK13 WEKA Core Cut by Diamond Products
$85.88
104
2700699 Bearing Socket for DK13 WEKA Core Cut by Diamond Products
$16.46
106
2700694 Gear Change Grip for DK13 WEKA Core Cut by Diamond Products
$55.07
108
2700695 Gear Change Lever DK13 for DK13 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
110
2701850 Spindle cpl. W-126,180,182 for DK13 WEKA Core Cut by Diamond Products
$249.60
112
2700697 Pinion Shaft DK13 for DK13 WEKA Core Cut by Diamond Products
$158.40
114
2700698 Clutch Wheel for DK13 WEKA Core Cut by Diamond Products
$88.58
116
2700700 Gear Wheel 1 DK13 for DK13 WEKA Core Cut by Diamond Products
$118.38
118
2700701 Gear Wheel 3 DK13 for DK13 WEKA Core Cut by Diamond Products
$94.12
120
2700702 Slide Gear Wheel DK13 for DK13 WEKA Core Cut by Diamond Products
$152.40
122
2700703 Brake Disc for DK13 WEKA Core Cut by Diamond Products
$15.40
124
2700704 Pressure Disk for DK13 WEKA Core Cut by Diamond Products
$22.22
126
2701851 Protective Sleeve for DK13 WEKA Core Cut by Diamond Products
$21.90
128
2701852 Protective Disc L for DK13 WEKA Core Cut by Diamond Products
$64.36
130
2701853 Protective Disc R for DK13 WEKA Core Cut by Diamond Products
$64.81
132
2701854 Protective Bush for DK13 WEKA Core Cut by Diamond Products
$47.39
150
2700948 Ball Bearing 629 for DK13 WEKA Core Cut by Diamond Products
$19.01
152
2701855 Ball Bearing 6005 2RS for DK13 WEKA Core Cut by Diamond Products
$60.00
154
2700709 Needle Bush HK1010 for DK13 WEKA Core Cut by Diamond Products
$18.62
156
2700710 O-Ring RDR78x2 for DK13 WEKA Core Cut by Diamond Products
$6.99
158
2700711 O-Ring RDR20x3 for DK13 WEKA Core Cut by Diamond Products
$3.99
164
2701856 Rotary Shaft Seal 28x47x7 for DK13 WEKA Core Cut by Diamond Products
$24.14
166
2700714 Rotary Shaft Seal 22x35x7 for DK13 WEKA Core Cut by Diamond Products
$15.00
168
2700715 Ball Valve G1/4"i/i for DK13 WEKA Core Cut by Diamond Products
$40.05
168
2700925 Grip for Ball Valve for DK13 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
170
2701857 Douple Nipple G3/4" for DK13 WEKA Core Cut by Diamond Products
$44.45
172
2700717 Sealing Ring G1/4 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
173
2701858 O-Ring RDR24x2,5 for DK13 WEKA Core Cut by Diamond Products
$4.99
174
2701859 Hose Coupling 32 for DK13 WEKA Core Cut by Diamond Products
$42.44
174
2701860 Hose Coupling 38 for DK13 WEKA Core Cut by Diamond Products
$40.62
176
2701861 Thread Coupling G3/4" for DK13 WEKA Core Cut by Diamond Products
$29.93
178
2701862 Thread Coupling G1/4" for DK13 WEKA Core Cut by Diamond Products
$39.48
180
2700718 Disk Spring for DK13 WEKA Core Cut by Diamond Products
$15.22
182
2700719 Pressure Spring 0,5x3,2x16 for DK13 WEKA Core Cut by Diamond Products
$7.06
184
2700720 Ball RB-4 for DK13 WEKA Core Cut by Diamond Products
$3.99
186
2701087 Parallel Key A5x5x40 for DK13 WEKA Core Cut by Diamond Products
$4.99
188
2701065 Parallel Pin 5m6x15 for DK13 WEKA Core Cut by Diamond Products
$3.99
190
2700722 Parallel Pin 4m6x10 for DK13 WEKA Core Cut by Diamond Products
$3.99
192
2700723 Parallel Pin 3m6x16 for DK13 WEKA Core Cut by Diamond Products
$3.99
194
2700724 Shim Ring PS10x16x1 for DK13 WEKA Core Cut by Diamond Products
$2.99
196
2700726 Retaining Ring AV14 for DK13 WEKA Core Cut by Diamond Products
$4.99
198
2700727 Retaining Ring SW18 for DK13 WEKA Core Cut by Diamond Products
$3.99
200
2701863 Retaining Ring 28x1,5 for DK13 WEKA Core Cut by Diamond Products
$4.99
202
2700729 Retaining Ring 47x1,75 for DK13 WEKA Core Cut by Diamond Products
$6.99
204
2701864 Retaining Ring 52x2 for DK13 WEKA Core Cut by Diamond Products
$6.99
206
2700730 Hexagon Nut BM12x1,5 for DK13 WEKA Core Cut by Diamond Products
$4.99
208
2700731 Hex. Soc. Hd Screw M5x80 for DK13 WEKA Core Cut by Diamond Products
$6.99
210
2700732 Hex. Soc. Hd Screw M5x50 for DK13 WEKA Core Cut by Diamond Products
$3.99
212
2702985 Hex. Soc. Hd Screw M5x12 for DK13 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
214
2700734 Wing Screw M6x40 for DK13 WEKA Core Cut by Diamond Products
$6.99
218
2700736 Medium Washer A 6 for DK13 WEKA Core Cut by Diamond Products
$2.99
230
2701865 Adapter Sleeve for DK13 WEKA Core Cut by Diamond Products
$89.36
250
2705402 AF-Element for DK13 WEKA Core Cut by Diamond Products
$128.40
262
2701866 O-Ring 32x1,5 for DK13 WEKA Core Cut by Diamond Products
$3.99
262
2700738 Gear Oil 160 ml for DK13 WEKA Core Cut by Diamond Products
$10.45
136
2700706 Quick Connect Nipple for DK13 WEKA Core Cut by Diamond Products
$29.42
138
2700707 Handle for DK13 WEKA Core Cut by Diamond Products
$44.83
160
2700712 O-Ring RDR11x2,5 for DK13 WEKA Core Cut by Diamond Products
$3.99
View full details

Frequently asked questions

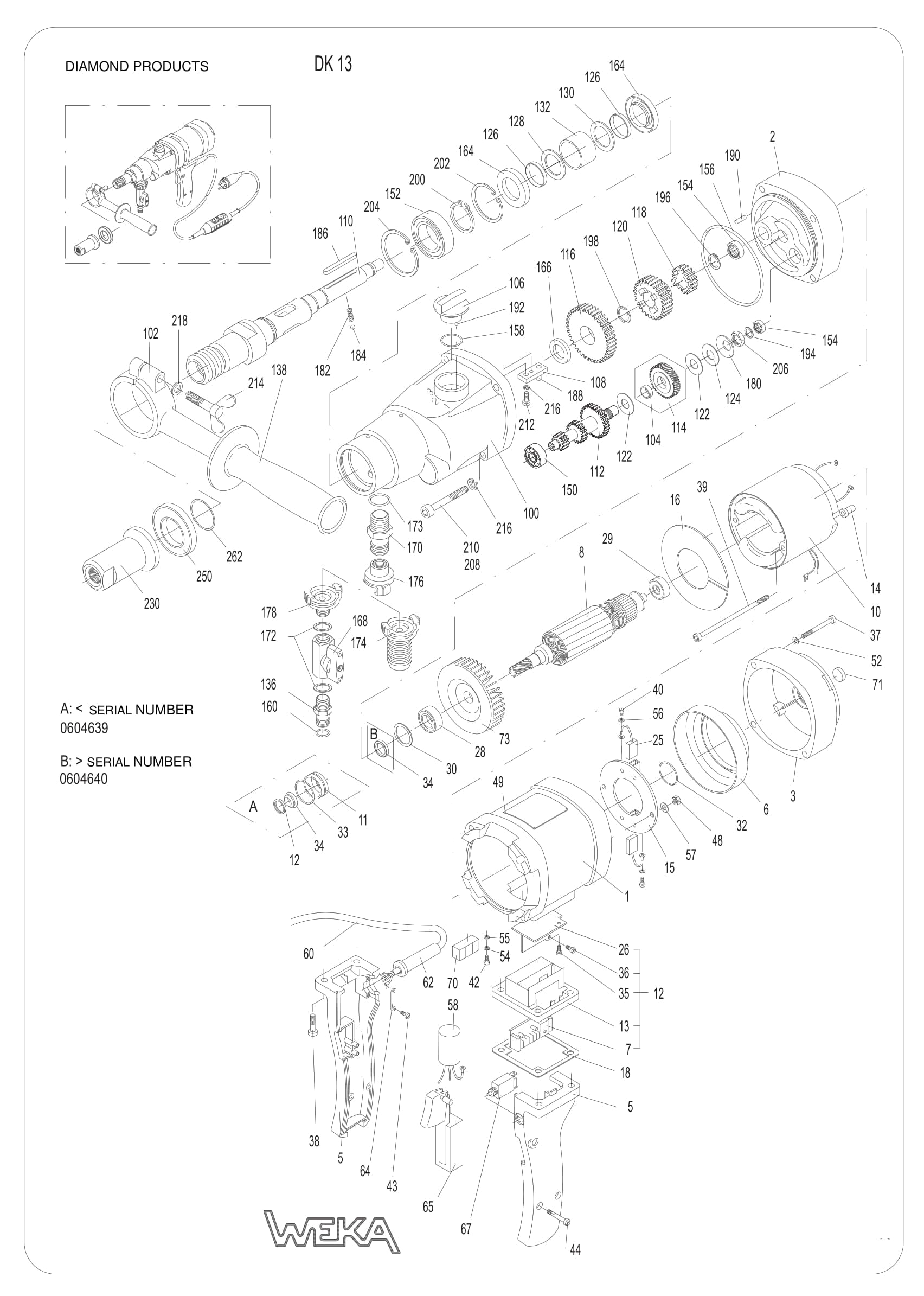

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
