WEKA DK32

WEKA DK32

  • WEKA DK32
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
2700831 Motor Case for DK22 WEKA Core Cut by Diamond Products
$290.40
2
2703255 Intermediate Flange for DK22 WEKA Core Cut by Diamond Products
$152.40
3
2700833 Motor Top Hood for DK22 WEKA Core Cut by Diamond Products
$114.78
4
2700834 Terminal Case Cover for DK22 WEKA Core Cut by Diamond Products
$32.36
7
2703260100 AIR CLEANER ASS'Y., EW310TR BY MAKITA
$53.13
8
2703261 Cooling Profile for DK22 WEKA Core Cut by Diamond Products
$32.29
8
2703250 Exchange Seal Bush for DK22 WEKA Core Cut by Diamond Products
$27.11
11
2701584 Switch Sealing for DK22 WEKA Core Cut by Diamond Products
$9.74
12
2700839 Field Screw Insulating Sleeve for DK22 WEKA Core Cut by Diamond Products
$11.41
13
2700840 Brush Holder Disk for DK22 WEKA Core Cut by Diamond Products
$81.78
14
2700841 Air Conducting Disc for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$10.27
15
2701080 Terminal Case Sealing for DK22 WEKA Core Cut by Diamond Products
$6.36
16
2703262 Terminal Case / electronic for DK22 WEKA Core Cut by Diamond Products
$50.18
16
2701396 Terminal Case / thermal for DK22 WEKA Core Cut by Diamond Products
$48.35
17
2701532 Carbon Brush (230V) for DK22 WEKA Core Cut by Diamond Products
$19.52
17
2700845 Carbon Brush (110V) for DK22 WEKA Core Cut by Diamond Products
$23.30
19
2704245 Carrying Handle for DK22 WEKA Core Cut by Diamond Products
$22.01
20
2700846 Ball Bearing 6201 2Z for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$28.51
21
2700773 Ball Bearing 6002 Z for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$29.62
22
2700848 Compensation Washer for DK22 WEKA Core Cut by Diamond Products
$6.99
23
2700849 O-Ring RDR 32x3 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$4.99
25
2703241 Rotary Shaft Seal RWD12x24x7 for DK12/DK16 WEKA Core Cut by Diamond Products
$29.22
26
2700852 Hex. Socket Head Screw M6x35 for DK22 WEKA Core Cut by Diamond Products
$3.99
27
2700853 Hex. Socket Head Screw M5x120 for DK22 WEKA Core Cut by Diamond Products
$11.11
28
2700854 Fill. Head Screw M4x40 for DK22 WEKA Core Cut by Diamond Products
$3.99
29
2700855 Fill. Head Screw M4x6 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
30
2700856 Slot. Count. Head Screw M4x6 for DK22 WEKA Core Cut by Diamond Products
$2.99
31
2700674 Slot. Pan Head Screw M4x6 for DK22 WEKA Core Cut by Diamond Products
$2.99
32
2700675 Pan Head Tapping Screw 3,9x9,5 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$2.99
33
2700858 Hexagon Nut M5 for DK22 WEKA Core Cut by Diamond Products
$2.99
34
2701399 Round Head grooved Pin 2,3x4 for DK13 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
35
2701386 Th. Roll. Cheese Hd Screw M4x6 for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$3.99
36
2700826 Locking Washer SM6 for DK42B WEKA Core Cut by Diamond Products
$2.99
164
2700826 Locking Washer SM6 for DK42B WEKA Core Cut by Diamond Products
$2.99
37
2700861 Curved Spring Washer for DK22 WEKA Core Cut by Diamond Products
$2.99
38
2700680 Curved Spring Washer A4 for DK52 WEKA Core Cut by Diamond Products
$2.99
39
2700681 Medium Washer 4.3 for DK42B WEKA Core Cut by Diamond Products
$2.99
40
2702566 Slot. Set Screw M6x5 for DK22 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
48
2706625 Int. Suppr. Capacitor for DK22 WEKA Core Cut by Diamond Products
$21.52
51
2701541 Cord AWG 16 230V for DK22 WEKA Core Cut by Diamond Products
$75.50
54
2701451 Cord Gland 230V for DK42B WEKA Core Cut by Diamond Products
$12.55
54
2701451 Cord Gland 230V for DK42B WEKA Core Cut by Diamond Products
$12.55
56
2700886 Motor Switch for DK22 WEKA Core Cut by Diamond Products
$76.45
58
2701919 Thermal Overload 115V for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$120.78
62
2700692 Fan for DK12/DK16 WEKA Core Cut by Diamond Products
$40.31
85
2700737 Pointing Sticker for DK12/DK16 WEKA Core Cut by Diamond Products
$11.12
90
2701924 Gear Box for DK42B WEKA Core Cut by Diamond Products
$409.20
91
2700871 Water Supply Bush for DK22 WEKA Core Cut by Diamond Products
$94.47
92
2700872 Gear Change Grip for DK22 WEKA Core Cut by Diamond Products
$65.69
93
2701925 Gear Change Lever for DK12/DK16 WEKA Core Cut by Diamond Products
$31.61
94
2701926 Spindle cpl. w- fig. 106+142 for DK52 WEKA Core Cut by Diamond Products
$295.20
95
2700875 Gear Change Shaft S for DK52 WEKA Core Cut by Diamond Products
$172.26
96
2701928 Pinion Shaft for DK42B WEKA Core Cut by Diamond Products
$250.80
98
2701930 Gear Wheel 1 for DK42B WEKA Core Cut by Diamond Products
$147.60
99
2701931 Gear Wheel 3 for DK42B WEKA Core Cut by Diamond Products
$112.22
100
2701932 Slide Gear Wheel for DK52 WEKA Core Cut by Diamond Products
$176.40
101
2702146 Spindle Wheel S for DK52 WEKA Core Cut by Diamond Products
$159.60
103
2701083 Supporting Disk for DK42B WEKA Core Cut by Diamond Products
$21.11
104
2701934 Brake Disk A for DK52 WEKA Core Cut by Diamond Products
$23.99
105
2701935 Pressure Disk for DK42B WEKA Core Cut by Diamond Products
$27.08
106
2701064 Protective Sleeve for DK42B WEKA Core Cut by Diamond Products
$17.08
107
2701941 Brake Disk B for DK42B WEKA Core Cut by Diamond Products
$30.88
115
2701938 Needle Cage for DK42B WEKA Core Cut by Diamond Products
$31.48
120
2700791 Ball Bearing 6302 for DK42B WEKA Core Cut by Diamond Products
$31.84
121
2700792 Ball Bearing 6201 for DK42B WEKA Core Cut by Diamond Products
$34.51
122
2700793 Needle Bearing for DK22 WEKA Core Cut by Diamond Products
$86.51
123
2700794 Needle Bush for DK22 WEKA Core Cut by Diamond Products
$25.90
124
2700795 Needle Bush for DK22 WEKA Core Cut by Diamond Products
$31.03
125
2700796 Thrust Ball Bearing for DK22 WEKA Core Cut by Diamond Products
$71.20
126
2700797 Thrust Needle Cage for DK42B WEKA Core Cut by Diamond Products
$19.37
127
2700798 Thrust Bearing Washer for DK22 WEKA Core Cut by Diamond Products
$8.74
128
2700799 O-Ring RDR102x3 for DK42B WEKA Core Cut by Diamond Products
$6.11
129
2700711 O-Ring RDR20x3 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
131
2700802 Rotary Shaft Seal 40x52x7 for DK42B WEKA Core Cut by Diamond Products
$27.44
132
2700803 Rotary Shaft Seal 38x50x7 for DK42B WEKA Core Cut by Diamond Products
$22.22
133
2700804 Rotary Shaft Seal 40x52x7S for DK42B WEKA Core Cut by Diamond Products
$27.38
134
2701939 Hose Piece cpl. with nipples for HDS60/GDS60 EDS60-115V-230V Concrete Saw Core Cut by Diamond Products
$45.70
135
2700715 Ball Valve for DK22 WEKA Core Cut by Diamond Products
$40.05
135
2700925 Grip for Ball Valve for DK12/DK16 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
137
2700717 Sealing Ring for DK22 WEKA Core Cut by Diamond Products
$3.99
140
2700809 Disc Spring for DK52 WEKA Core Cut by Diamond Products
$6.07
141
2700810 Pressure Spring for DK22 WEKA Core Cut by Diamond Products
$7.65
142
2700811 Ball 5 for DK42B WEKA Core Cut by Diamond Products
$3.99
143
2700720 Ball 4 for DK42B WEKA Core Cut by Diamond Products
$3.99
144
2700813 Parallel Key A6x6x45 for DK42B WEKA Core Cut by Diamond Products
$4.99
146
2700815 Parallel Key A4x4x10 for DK42B WEKA Core Cut by Diamond Products
$3.99
147
2700816 Parallel Pin 6m6x10 for DK42B WEKA Core Cut by Diamond Products
$3.99
148
2701065 Parallel Pin 5m6x15 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
149
2700723 Parallel Pin 3m6x16 for DK12/DK16 WEKA Core Cut by Diamond Products
$3.99
150
2700819 Shim Ring PS14x20x1 for DK42B WEKA Core Cut by Diamond Products
$3.99
151
2700820 Retaining Ring 16x1 for DK42B WEKA Core Cut by Diamond Products
$3.99
152
2700821 Retaining Ring SW20 for DK42B WEKA Core Cut by Diamond Products
$3.99
160
2700822 Hexagon Nut M22x1,5 for DK42B WEKA Core Cut by Diamond Products
$16.26
161
2700823 Hex. Soc. Head Screw M6x50 for DK22 WEKA Core Cut by Diamond Products
$3.99
162
2700733 Hex. Soc. Head Screw M5x12 for DK12/DK16 WEKA Core Cut by Diamond Products
$2.99
163
2700825 Hex. Soc. Head Screw M5x45 for DK22 WEKA Core Cut by Diamond Products
$3.99
165
2700735 Locking Washer SM5 for DK12/DK16 WEKA Core Cut by Diamond Products
$2.99
165
2700829 Gear Oil (300 ml) for DK22 WEKA Core Cut by Diamond Products
$17.41
175
2705402 Antifriction-Element for DK42B WEKA Core Cut by Diamond Products
$128.40
176
2701866 O-Ring 32x1,5 for DK42B WEKA Core Cut by Diamond Products
$3.99
110
2700706 Quick Connect Nipple for DK11 WEKA Core Cut by Diamond Products
$29.42
130
2700712 O-Ring RDR11x2,5 for DK13 WEKA Core Cut by Diamond Products
$3.99
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

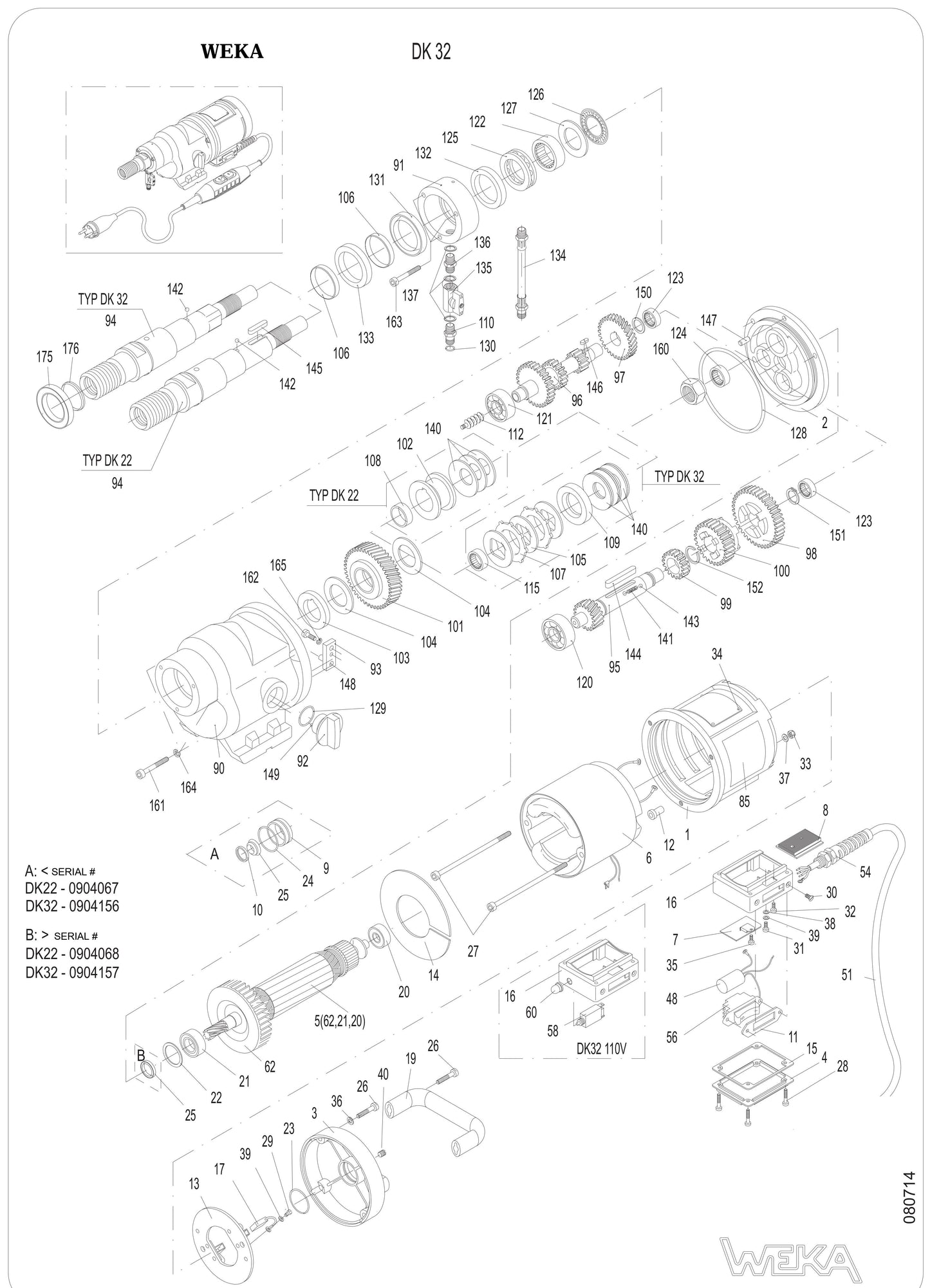

How do I use this diagram?
