WEKA DK42B Core Drill Parts By Core Bore Diamond Products

WEKA DK42B Core Drill Parts By Core Bore Diamond Products

  • WEKA DK42B Core Drill Parts By Core Bore Diamond Products
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2701033 Motor case for DK42B WEKA Core Cut by Diamond Products
$356.40
2
2702041 Intermediate Flange for DK42B WEKA Core Cut by Diamond Products
$164.40
3
2701377 Motor Top Hood for DK42B WEKA Core Cut by Diamond Products
$179.19
4
2701036 Case Sleeve for DK42B WEKA Core Cut by Diamond Products
$214.80
5
2700834 Terminal Case Cover for DK42B WEKA Core Cut by Diamond Products
$32.36
6
2707786 Rotor with Bearings / DK42B for DK42B WEKA Core Cut by Diamond Products
$447.60
7
2701376 Stator 230V/60Hz USA for DK42B WEKA Core Cut by Diamond Products
$645.60
7
2701375 Stator 460V/60Hz USA for DK42B WEKA Core Cut by Diamond Products
$692.40
13
2701071 Cord Angle with O-Ring for DK42B WEKA Core Cut by Diamond Products
$42.89
15
2701040 Terminal Case Insulation for DK42B WEKA Core Cut by Diamond Products
$9.46
16
2704245 Carrying Handle for DK42B WEKA Core Cut by Diamond Products
$22.01
17
2701041 Rotary Shaft Seal 20x32x7 for DK42B WEKA Core Cut by Diamond Products
$17.06
18
2701080 Terminal Case Sealing for DK42B WEKA Core Cut by Diamond Products
$6.36
20
2701043 Ball Bearing 6202 ZZ for DK42B WEKA Core Cut by Diamond Products
$23.67
21
2701044 Ball Bearing 6004 ZZ for DK42B WEKA Core Cut by Diamond Products
$26.90
22
2701045 Compensation Washer for DK42B WEKA Core Cut by Diamond Products
$6.02
23
2701046 O-Ring RDR 135x2 for DK42B WEKA Core Cut by Diamond Products
$7.43
24
2701047 O-Ring RDR 127x4 for DK42B WEKA Core Cut by Diamond Products
$6.59
25
2701048 O-Ring RDR 11x2,5 for DK42B WEKA Core Cut by Diamond Products
Call for Price call for price call for price
26
2701049 Hex. Soc. Head Screw M6x20 for DK42B WEKA Core Cut by Diamond Products
$3.99
27
2700852 Hex. Soc. Head Screw M6x35 for DK42B WEKA Core Cut by Diamond Products
$3.99
161
2700852 Hex. Soc. Head Screw M6x35 for DK42B WEKA Core Cut by Diamond Products
$3.99
28
2701388 Fill. Head Screw M4x12 for DK42B WEKA Core Cut by Diamond Products
$2.99
76
2701388 Fill. Head Screw M4x12 for DK42B WEKA Core Cut by Diamond Products
$2.99
31
2700674 Slot. Pan Head Screw M4x6 for DK42B WEKA Core Cut by Diamond Products
$2.99
34
2701399 Round Head Groov. Pin 2,3x4 for DK42B WEKA Core Cut by Diamond Products
Call for Price call for price call for price
36
2702372 Sealing Washer 6 for DK42B WEKA Core Cut by Diamond Products
$2.99
38
2700680 Curved Spring Washer A4 for DK42B WEKA Core Cut by Diamond Products
$2.99
39
2700681 Medium Washer 4.3 for DK42B WEKA Core Cut by Diamond Products
$2.99
44
2701568 O-Ring 18x2 for DK42B WEKA Core Cut by Diamond Products
$3.99
45
2701451 Cord Gland 230V for DK42B WEKA Core Cut by Diamond Products
$12.55
45
2701451 Cord Gland 230V for DK42B WEKA Core Cut by Diamond Products
$12.55
83
2701451 Cord Gland 230V for DK42B WEKA Core Cut by Diamond Products
$12.55
83
2701451 Cord Gland 230V for DK42B WEKA Core Cut by Diamond Products
$12.55
46
2701074 Hexagon Nut M20x1,5 for DK42B WEKA Core Cut by Diamond Products
$8.33
47
2706091 Terminal for DK42B WEKA Core Cut by Diamond Products
$21.58
49
2706088 Double Press Key for DK42B WEKA Core Cut by Diamond Products
$97.93
50
2706089 Switch Element for DK42B WEKA Core Cut by Diamond Products
$71.60
50
2702051 Cord AWG 18/7 400-480V for DK42B WEKA Core Cut by Diamond Products
$90.34
50
2701381 Cord AWG 16/7 230V for DK42B WEKA Core Cut by Diamond Products
$92.74
52
2706090 Key Diaphragm for DK42B WEKA Core Cut by Diamond Products
$30.25
55
2700715 Ball Valve for DK42B WEKA Core Cut by Diamond Products
$40.05
56
2700925 Grip for Ball Valve for DK42B WEKA Core Cut by Diamond Products
Call for Price call for price call for price
58
2701077 Angle Screwing for DK42B WEKA Core Cut by Diamond Products
$29.05
59
2700717 Sealing Ring G 1/4" for DK42B WEKA Core Cut by Diamond Products
$3.99
60
2700716 Double Nipple G 1/4" for DK42B WEKA Core Cut by Diamond Products
$13.81
62
2701060 Flexible Hose for DK42B WEKA Core Cut by Diamond Products
$6.59
65
2701094 Angle Screwing G 1/4" for DK42B WEKA Core Cut by Diamond Products
$22.91
67
2800162 Plug USA (not pictured) for DK42B WEKA Core Cut by Diamond Products
$40.34
75
2701401 Cable case cpl. w- Fig.83, 85 w/o Fig. 79, 80 for DK42B WEKA Core Cut by Diamond Products
$163.20
77
2700677 Hexagon Nut M4 for DK42B WEKA Core Cut by Diamond Products
$2.99
79
2701403 Contactor for DK42B WEKA Core Cut by Diamond Products
$191.07
80
2701579 Print Plate without Contactor 460V for DK42B WEKA Core Cut by Diamond Products
$162.00
80
2701580 Print Plate without Contactor 230V for DK42B WEKA Core Cut by Diamond Products
$160.80
85
2701405 Tapping Screw 4,8x32 for DK42B WEKA Core Cut by Diamond Products
$3.99
86
2701581 Fuse 32 mA mT for DK42B WEKA Core Cut by Diamond Products
$6.99
87
2707169 Cord 4G1,5x0,5 for DK42B WEKA Core Cut by Diamond Products
$33.32
90
2701924 Gear Box for DK42B WEKA Core Cut by Diamond Products
$409.20
91
2700871 Water Supply Bush for DK42B WEKA Core Cut by Diamond Products
$94.47
92
2700872 Gear Change Grip for DK42B WEKA Core Cut by Diamond Products
$65.69
93
2701925 Gear Change Lever for DK42B WEKA Core Cut by Diamond Products
$31.61
94
2701926 Drill Spindle cpl. w- fig. 106+142 for DK42B WEKA Core Cut by Diamond Products
$295.20
95
2700875 Gear Change Shaft for DK42B WEKA Core Cut by Diamond Products
$172.26
95
2701082 Gear Change Shaft / Type S for DK42B WEKA Core Cut by Diamond Products
$200.40
95
2702052 Gear Change Shaft / Type L for DK42B WEKA Core Cut by Diamond Products
$194.40
96
2701928 Pinion Shaft for DK42B WEKA Core Cut by Diamond Products
$250.80
97
2702053 Spur Wheel for DK42B WEKA Core Cut by Diamond Products
$86.63
98
2701930 Gear Wheel 1 for DK42B WEKA Core Cut by Diamond Products
$147.60
99
2701931 Gear Wheel 3 for DK42B WEKA Core Cut by Diamond Products
$112.22
100
2701932 Slide Gear Wheel for DK42B WEKA Core Cut by Diamond Products
$176.40
101
2702146 Spindle Wheel for DK42B WEKA Core Cut by Diamond Products
$159.60
101
2702145 Spindle Wheel / Type L for DK42B WEKA Core Cut by Diamond Products
$151.20
101
2707788 Spindle Wheel / Type S for DK42B WEKA Core Cut by Diamond Products
$152.40
103
2701083 Supporting Disk for DK42B WEKA Core Cut by Diamond Products
$21.11
104
2701934 Brake Disk for DK42B WEKA Core Cut by Diamond Products
$23.99
105
2701935 Pressure Disk for DK42B WEKA Core Cut by Diamond Products
$27.08
106
2701064 Protective Sleeve for DK42B WEKA Core Cut by Diamond Products
$17.08
107
2701941 Brake Disk B for DK42B WEKA Core Cut by Diamond Products
$30.88
109
2702054 Pressure Ring for DK42B WEKA Core Cut by Diamond Products
$17.26
112
2706123 Feed Worm for DK42B WEKA Core Cut by Diamond Products
$31.99
115
2701938 Needle Cage for DK42B WEKA Core Cut by Diamond Products
$31.48
119
2701370 Needle Bearing for DK42B WEKA Core Cut by Diamond Products
$48.42
120
2700791 Ball Bearing 6302 for DK42B WEKA Core Cut by Diamond Products
$31.84
121
2700792 Ball Bearing 6201 for DK42B WEKA Core Cut by Diamond Products
$34.51
122
2700793 Needle Bearing for DK42B WEKA Core Cut by Diamond Products
$86.51
123
2700794 Needle Bush for DK42B WEKA Core Cut by Diamond Products
$25.90
124
2700795 Needle Bush for DK42B WEKA Core Cut by Diamond Products
$31.03
125
2700796 Thrust Ball Bearing for DK42B WEKA Core Cut by Diamond Products
$71.20
126
2700797 Thrust Needle Cage for DK42B WEKA Core Cut by Diamond Products
$19.37
127
2700798 Thrust Bearing Washer for DK42B WEKA Core Cut by Diamond Products
$8.74
128
2700799 O-Ring RDR102x3 for DK42B WEKA Core Cut by Diamond Products
$6.11
129
2700711 O-Ring RDR20x3 for DK42B WEKA Core Cut by Diamond Products
$3.99
131
2700802 Rotary Shaft Seal 40x52x7 for DK42B WEKA Core Cut by Diamond Products
$27.44
132
2700803 Rotary Shaft Seal 38x50x7 for DK42B WEKA Core Cut by Diamond Products
$22.22
133
2700804 Rotary Shaft Seal 40x52x7S for DK42B WEKA Core Cut by Diamond Products
$27.38
140
2700809 Disk Spring for DK42B WEKA Core Cut by Diamond Products
$6.07
141
2700810 Pressure Spring for DK42B WEKA Core Cut by Diamond Products
$7.65
142
2700811 Ball 5 for DK42B WEKA Core Cut by Diamond Products
$3.99
143
2700720 Ball 4 for DK42B WEKA Core Cut by Diamond Products
$3.99
144
2700813 Parallel Key A6x6x45 for DK42B WEKA Core Cut by Diamond Products
$4.99
146
2700815 Parallel Key A4x4x10 for DK42B WEKA Core Cut by Diamond Products
$3.99
147
2700816 Parallel Pin 6m6x10 for DK42B WEKA Core Cut by Diamond Products
$3.99
148
2701065 Parallel Pin 5m6x15 for DK42B WEKA Core Cut by Diamond Products
$3.99
149
2700723 Parallel Pin 3m6x16 for DK42B WEKA Core Cut by Diamond Products
$3.99
150
2700819 Shim Ring PS14x20x1 for DK42B WEKA Core Cut by Diamond Products
$3.99
151
2700820 Retaining Ring 16x1 for DK42B WEKA Core Cut by Diamond Products
$3.99
152
2700821 Retaining Ring SW20 for DK42B WEKA Core Cut by Diamond Products
$3.99
160
2700822 Hexagon Nut M22x1,5 for DK42B WEKA Core Cut by Diamond Products
$16.26
162
2702985 Hex. Soc. Head Screw M5x12 for DK42B WEKA Core Cut by Diamond Products
Call for Price call for price call for price
163
2700825 Hex. Soc. Head Screw M5x45 for DK42B WEKA Core Cut by Diamond Products
$3.99
164
2700826 Locking Washer SM6 for DK42B WEKA Core Cut by Diamond Products
$2.99
165
2700735 Locking Washer SM5 for DK42B WEKA Core Cut by Diamond Products
$2.99
165
2701067 Gear Oil 400 ml for DK42B WEKA Core Cut by Diamond Products
$23.15
175
2705402 Antifriction-Element for DK42B WEKA Core Cut by Diamond Products
$128.40
176
2701866 O-Ring 32x1,5 for DK42B WEKA Core Cut by Diamond Products
$3.99
57
2700706 Quick Connect Nipple for DK42B WEKA Core Cut by Diamond Products
$29.42
View full details

Frequently asked questions

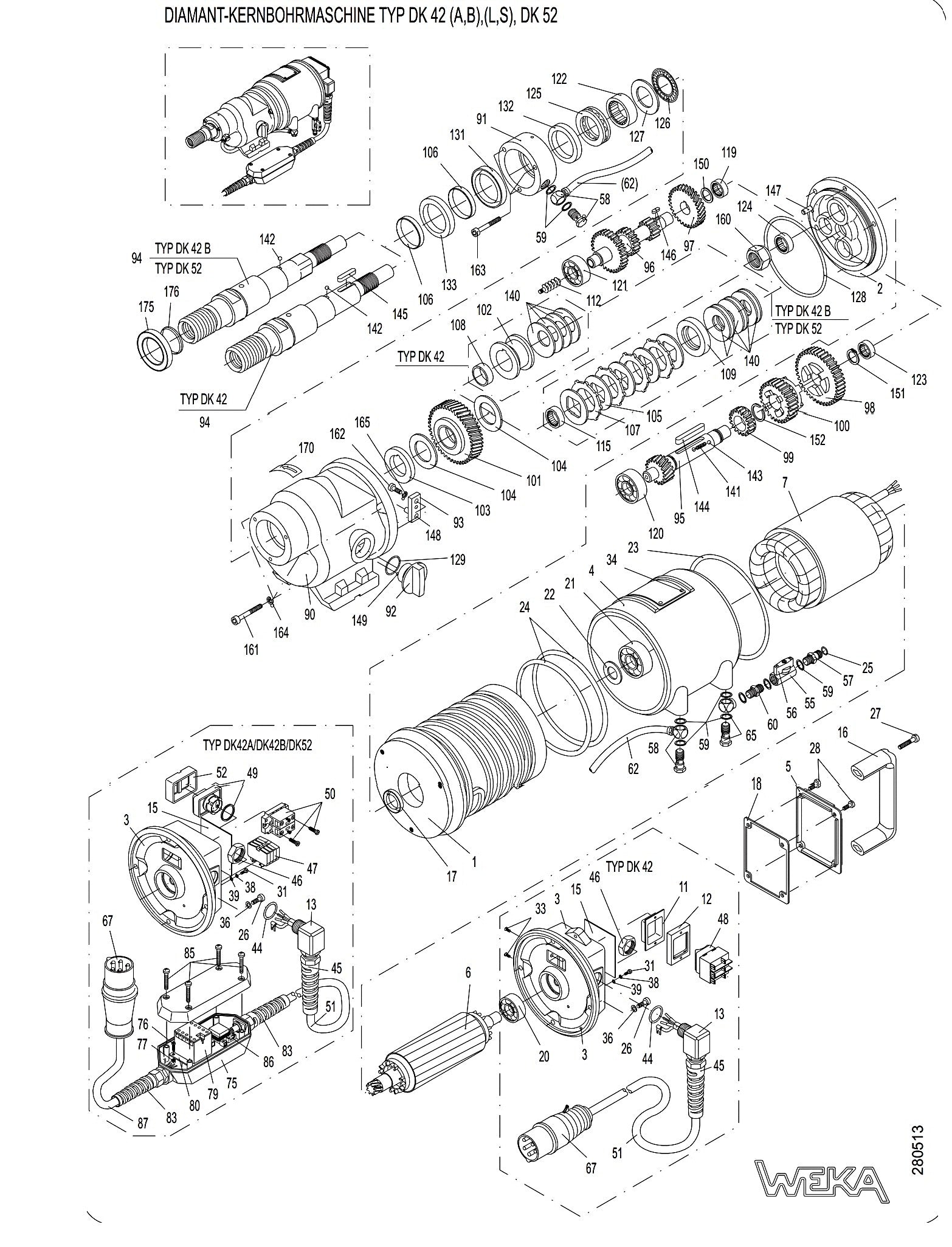

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
