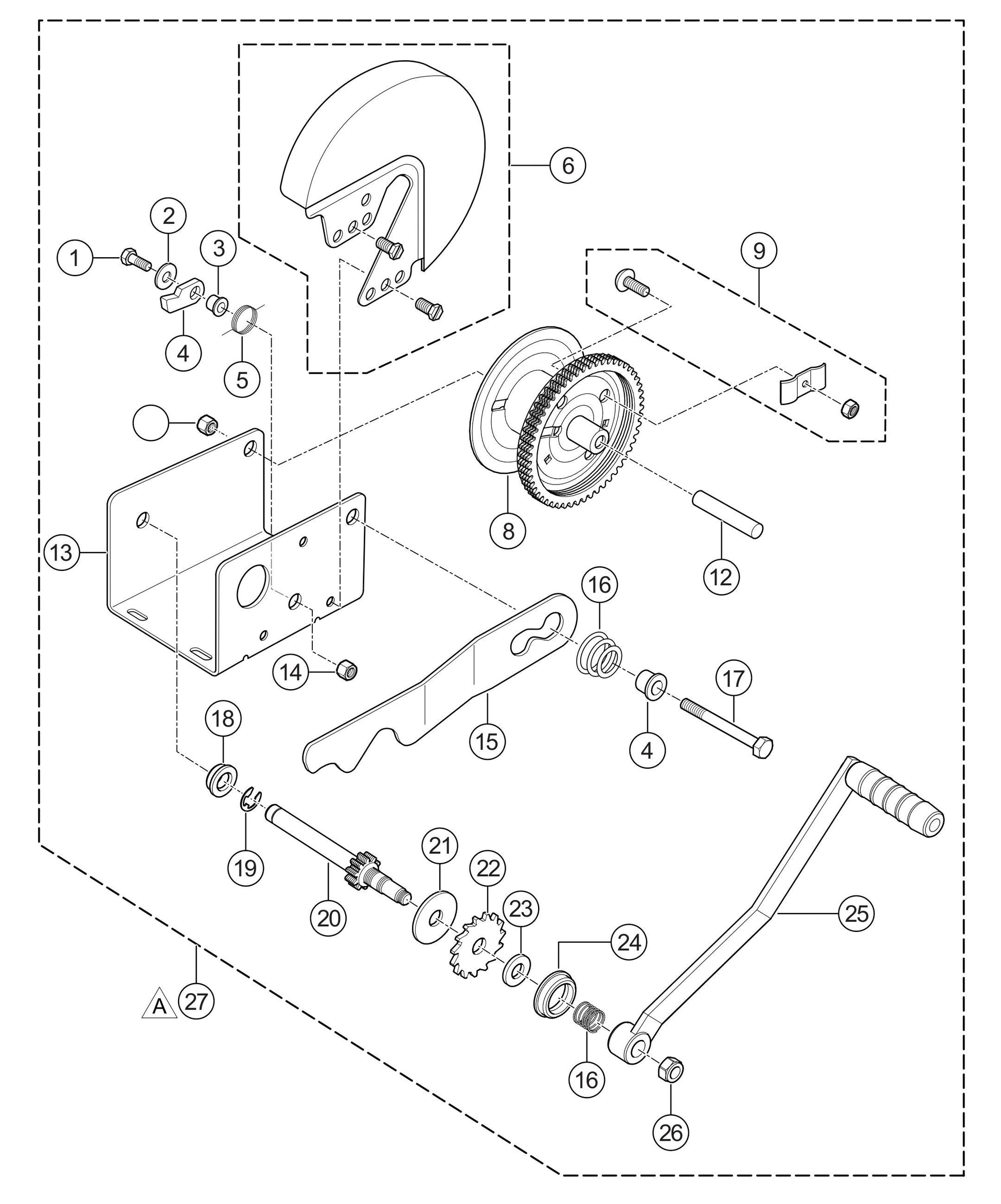

MLT25 Winch Assembly (Dutton-Lainson) Parts By Multiquip

MLT25 Winch Assembly (Dutton-Lainson) Parts By Multiquip

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
DL205167 Bolt for MLT25 Light Towers by Multiquip
$2.25
2
DL205055 Washer for MLT25 Light Towers by Multiquip
$4.39
3
DL404409 Pawl for MLT25 Light Towers by Multiquip
$8.10
4
DL404166 Spacer for MLT25 Light Towers by Multiquip
$5.08
5
DL204363 Spring for MLT25 Light Towers by Multiquip
$3.67
6
DL5240387 Gear Cover, Painted Bronze for MLT25 Light Towers by Multiquip
$29.24
6
DL5240403 Gear Cover, Plated for MLT25 Light Towers by Multiquip
$34.08
8
DL304755 Reel for MLT25 Light Towers by Multiquip
$89.44
9
DL304221 Rope Clamp Kit for MLT25 Light Towers by Multiquip
$3.29
12
DL204808 Reel Spacer for MLT25 Light Towers by Multiquip
$2.53
13
DL404891 Base for MLT25 Light Towers by Multiquip
$18.90
14
DL204803 Nut for MLT25 Light Towers by Multiquip
$1.40
15
DL404579 Lockout Lever for MLT25 Light Towers by Multiquip
$2.17
16
DL204364 Spring for MLT25 Light Towers by Multiquip
$1.40
17
DL205127 Bolt for MLT25 Light Towers by Multiquip
$4.84
20
DL304760 Drive Shaft for MLT25 Light Towers by Multiquip
$30.75
21
DL204362 Pressure Plate for MLT25 Light Towers by Multiquip
$5.98
22
DL404164 Ratchet Wheel for MLT25 Light Towers by Multiquip
$6.70
23
DL404163 Pressure Washer for MLT25 Light Towers by Multiquip
$5.08
24
DL206328 Bushing for MLT25 Light Towers by Multiquip
$4.36
25
29793 Handle for MLT25 Light Towers by Multiquip
$19.18
26
DL205033 Nut for MLT25 Light Towers by Multiquip
$1.71
27
29790 Winch Assembly 1500A D-L for MLT25 Light Towers by Multiquip
$204.37
18
DL204009 Bushing for MLT25 Light Towers by Multiquip
$2.53
19
DL205116 E-Ring for MLT25 Light Towers by Multiquip
$1.20
