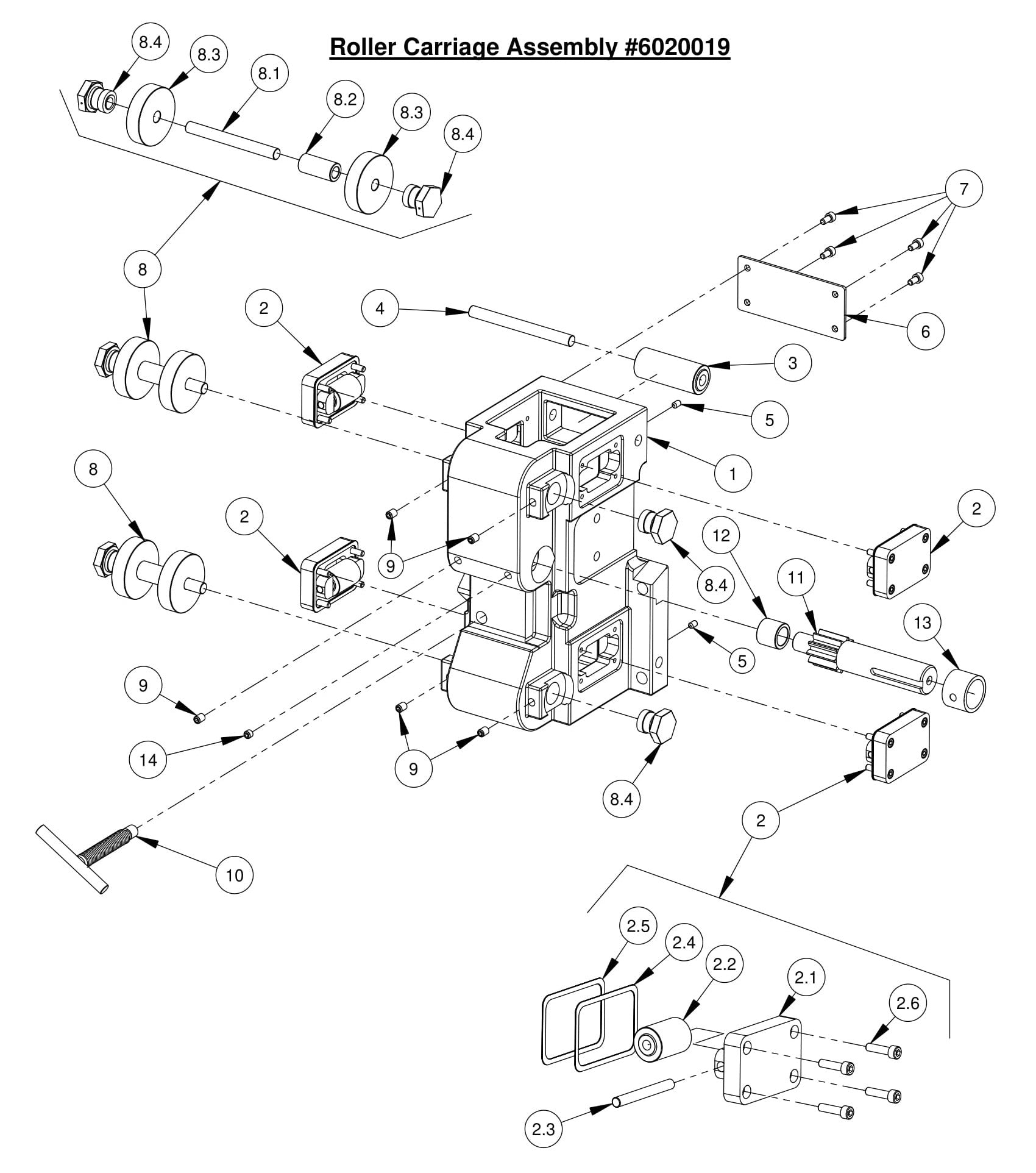

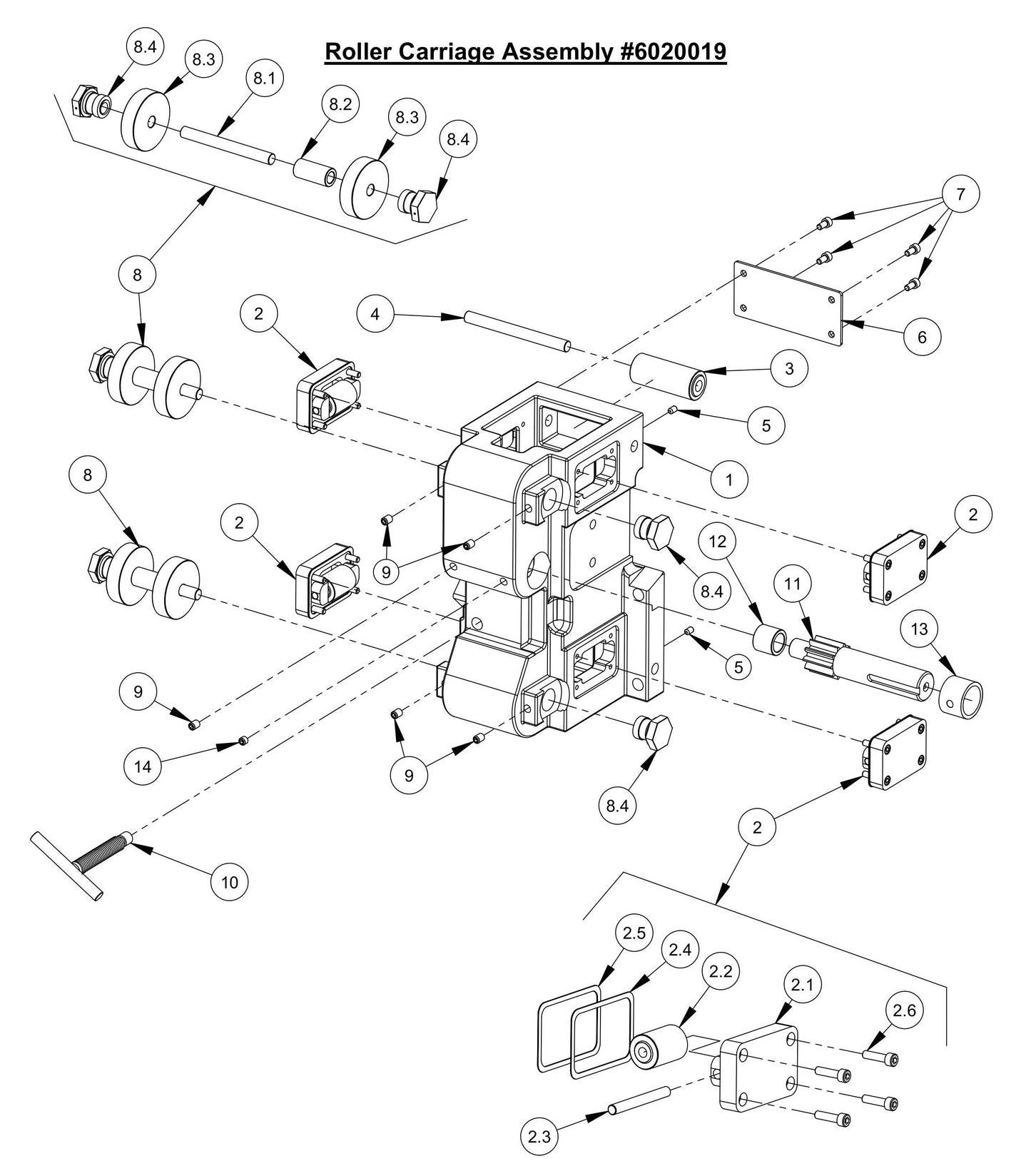

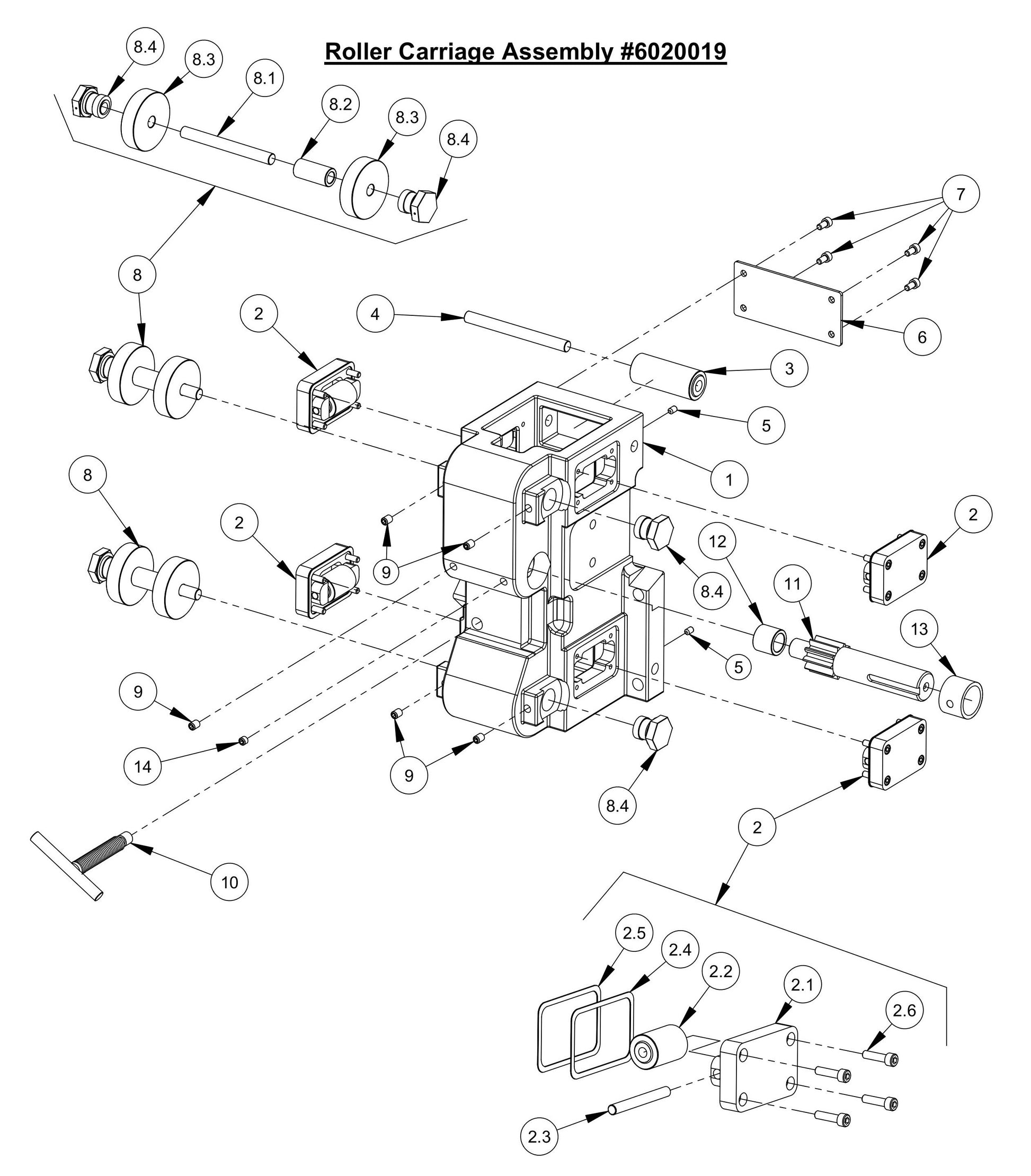

WS25 Roller Carriage Assembly Parts

WS25 Roller Carriage Assembly Parts

  • WS25 Roller Carriage Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
6020014 Wire Saw Roller Carriage for WS25 Wire Saw Core Cut by Diamond Products
$379.17
2
4647107 Side Roller Assembly (Plastic 7/8" Roller) for WS25 Wire Saw Core Cut by Diamond Products
$84.12
2.1
4647102 Side Roller Housing for WS25 Wire Saw Core Cut by Diamond Products
$37.04
2.2
4647113 Side Roller, Plastic for WS25 Wire Saw Core Cut by Diamond Products
$32.10
2.3
4647106 Side Roller Shaft for WS25 Wire Saw Core Cut by Diamond Products
$3.99
2.4
2400011 Aluminum Gasket Shim, .005" for WS25 Wire Saw Core Cut by Diamond Products
$6.99
2.5
2400054 Aluminum Gasket Shim, .003" for WS25 Wire Saw Core Cut by Diamond Products
$6.99
2.6
2900116 Cap Screw, Soc. Hd., #10-24 x 3/4" for WS25 Wire Saw Core Cut by Diamond Products
$2.99
3
4647114 Lower Roller (plastic) for WS25 Wire Saw Core Cut by Diamond Products
$38.36
4
4647112 Lower Roller Shaft for WS25 Wire Saw Core Cut by Diamond Products
$11.15
5
2900118 Set Screw, Soc. Hd., #10-24 x 5/16" for WS25 Wire Saw Core Cut by Diamond Products
$2.99
6
2400009 Aluminum Cover Plate for WS25 Wire Saw Core Cut by Diamond Products
$10.84
7
2900117 Cap Screw, Soc. Hd., #10-24 x 3/8" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
8
4647108 Adjustable Roller Assembly for WS25 Wire Saw Core Cut by Diamond Products
$107.00
8.1
4647120 Shaft, Adjustable Roller for WS25 Wire Saw Core Cut by Diamond Products
$10.92
8.2
4647121 Spacer, Adjustable Roller for WS25 Wire Saw Core Cut by Diamond Products
$10.76
8.3
4647115 Plastic Roller for WS25 Wire Saw Core Cut by Diamond Products
$22.46
8.4
4647122 Roller Adjuster for WS25 Wire Saw Core Cut by Diamond Products
$29.35
9
2900101 Set Screw, Soc. Hd., 1/4-20 x 3/8" for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
10
4647123 Carriage Lock (M-2 Roller Carriage) for WS25 Wire Saw Core Cut by Diamond Products
$51.54
11
6020016 Pinion Gear for WS25 Wire Saw Core Cut by Diamond Products
$73.31
12
2400005 Bearing - 5/8" X 7/8" x 3/4" for WS25 Wire Saw Core Cut by Diamond Products
$19.37
13
4645026 Bushing, 1" x 1-1/4" x 7/8" for WS25 Wire Saw Core Cut by Diamond Products
$41.97
14
2900056 Socket Head Set Screw 1/4-20 x 1/4" for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
