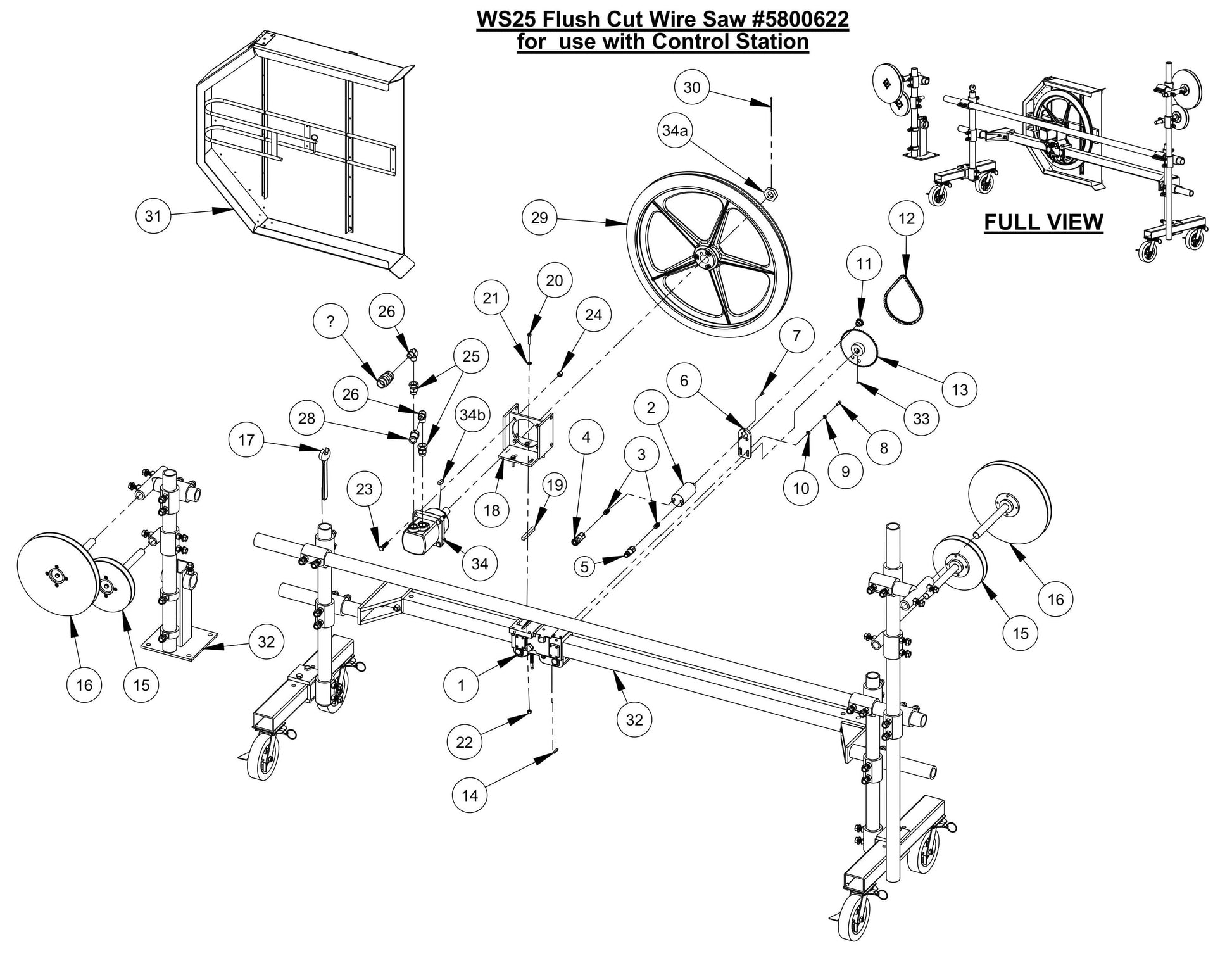

WS25 Flush Cut Wire Saw for use with Control Station Assembly Parts

WS25 Flush Cut Wire Saw for use with Control Station Assembly Parts

  • WS25 Flush Cut Wire Saw for use with Control Station Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
6020019 Wire Saw Roller Carriage Assembly for WS25 Wire Saw Core Cut by Diamond Products
$1,203.84
2
2600083 Hydraulic Motor, Danfoss OMM32 for WS25 Wire Saw Core Cut by Diamond Products
$937.53
3
3200109 Adapter, 3/8" O-Ring to 3/8" M. Pipe for WS25 Wire Saw Core Cut by Diamond Products
$6.99
6
6020013 Motor Support Plate for WS25 Wire Saw Core Cut by Diamond Products
$75.18
7
2900506 Cap Screw, Flat Head, 1/4-28 x 3/4" for WS25 Wire Saw Core Cut by Diamond Products
$4.99
8
2900630 Cap Screw, Soc. Hd., 5/16-18 X 7/8" for WS25 Wire Saw Core Cut by Diamond Products
$4.99
9
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900022 Flat Washer 5/16" SAE 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
11
2500249 Sprocket, #35,10 Tooth for WS25 Wire Saw Core Cut by Diamond Products
$35.51
12
6020018 Chain, #35,68 Pitch Length for WS25 Wire Saw Core Cut by Diamond Products
$20.88
13
6020017 Sprocket-35BS60 - 3/8" Pitch for WS25 Wire Saw Core Cut by Diamond Products
$130.80
14
6010169 Key, 1/4" Sq. x 1-1/4" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
15
6020035 10" Idler Wheel Assembly for WS25 Wire Saw Core Cut by Diamond Products
$664.29
16
6020025 16" Idler Wheel Assembly for WS25 Wire Saw Core Cut by Diamond Products
$965.25
17
2500211 Wrench, 15/16" Open End for WS25 Wire Saw Core Cut by Diamond Products
$111.00
18
6020005 Drive Wheel Motor Mount for WS25 Wire Saw Core Cut by Diamond Products
$434.61
19
4641010 Key, 1/2" Sq. x 4" Long for WS25 Wire Saw Core Cut by Diamond Products
$8.12
20
2900047 3/8-16 x 1.75 Hex Cap Screw for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$3.99
21
2900014 3/8" SAE Flat Washer for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
22
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
23
2900106 Cap Screw, Hex Hd., 1/2-13 x 2" for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
24
2900026 Lock Nut 1/2-13 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
25
3200094 Adapter, 3/4" O-Ring to 3/4" F. Pipe for WS25 Wire Saw Core Cut by Diamond Products
$16.20
26
3200036 Elbow, 3/4" Male Pipe for WS25 Wire Saw Core Cut by Diamond Products
$32.28
27
3200100 Coupler, 3/4" Quick Disconnect for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$324.72
28
3200101 Nipple, 3/4" Quick Disconnect for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$129.69
29
6020052 32" Wire Drive Wheel Assembly for WS25 Wire Saw Core Cut by Diamond Products
$5,063.85
30
2900227 Cotter Pin, 1/8" x 2-1/2" for WS25 Wire Saw Core Cut by Diamond Products
$2.99
31
6020042 36" Wheel Guard Assembly for WS25 Wire Saw Core Cut by Diamond Products
$1,386.99
33
2900073 Set Screw, Soc. Hd., 5/16-18 x 5/16" for WS25 Wire Saw Core Cut by Diamond Products
$6.99
34
2600084 Char-Lynn #110-1083-006 for WS25 Wire Saw Core Cut by Diamond Products
$3,662.01
34a
2700604 Slotted Hex Nut (Char-Lynn Motor) for WS25 Wire Saw Core Cut by Diamond Products
$157.41
36b
2700603 Key 7/16" x 1-1/4" (Char-Lynn Motor) for WS25 Wire Saw Core Cut by Diamond Products
$23.67
4
3200104 Coupler, 1/2" Q.D. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$102.89
5
3200105 Nipple, 1/2" Q.D. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$59.14
32
Call for Price call for price call for price
