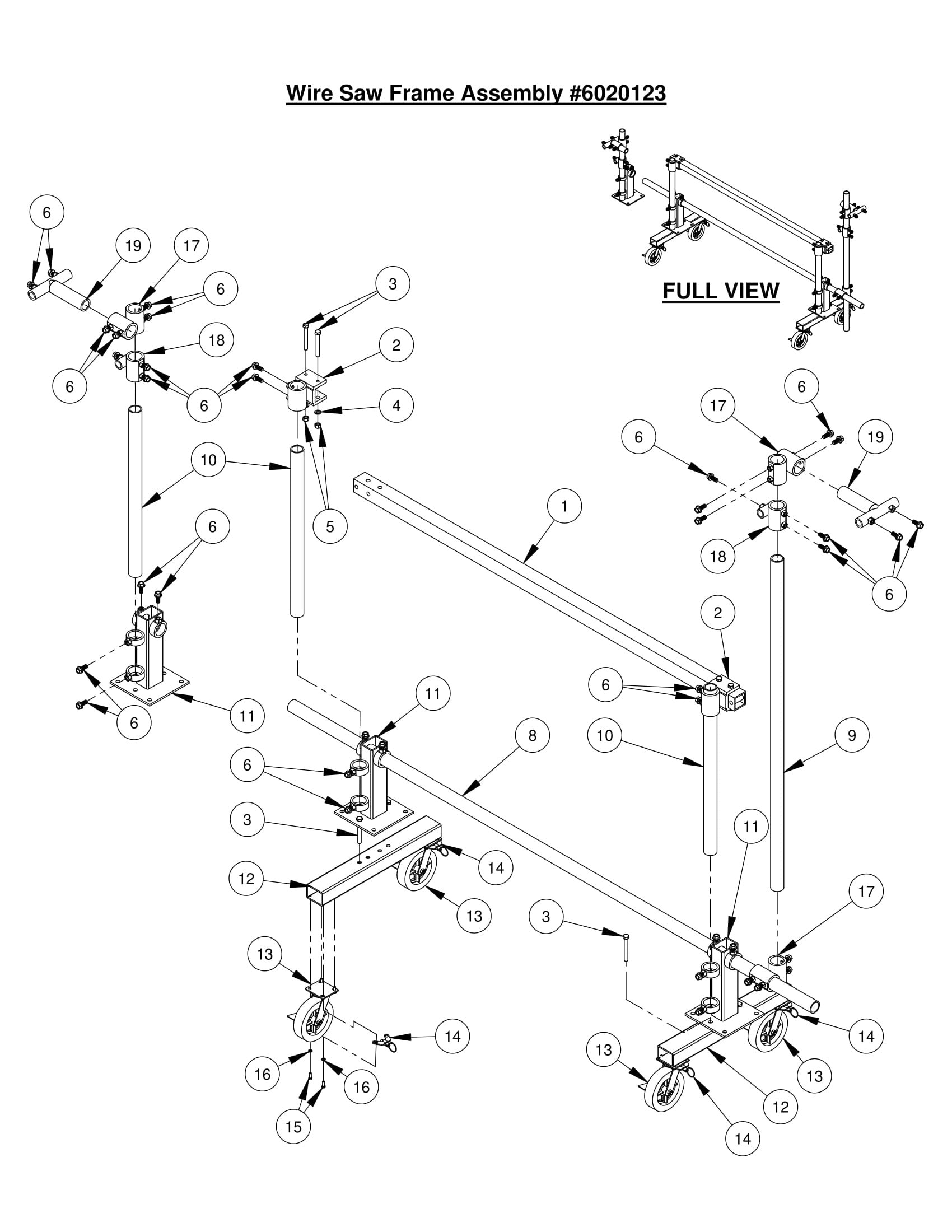

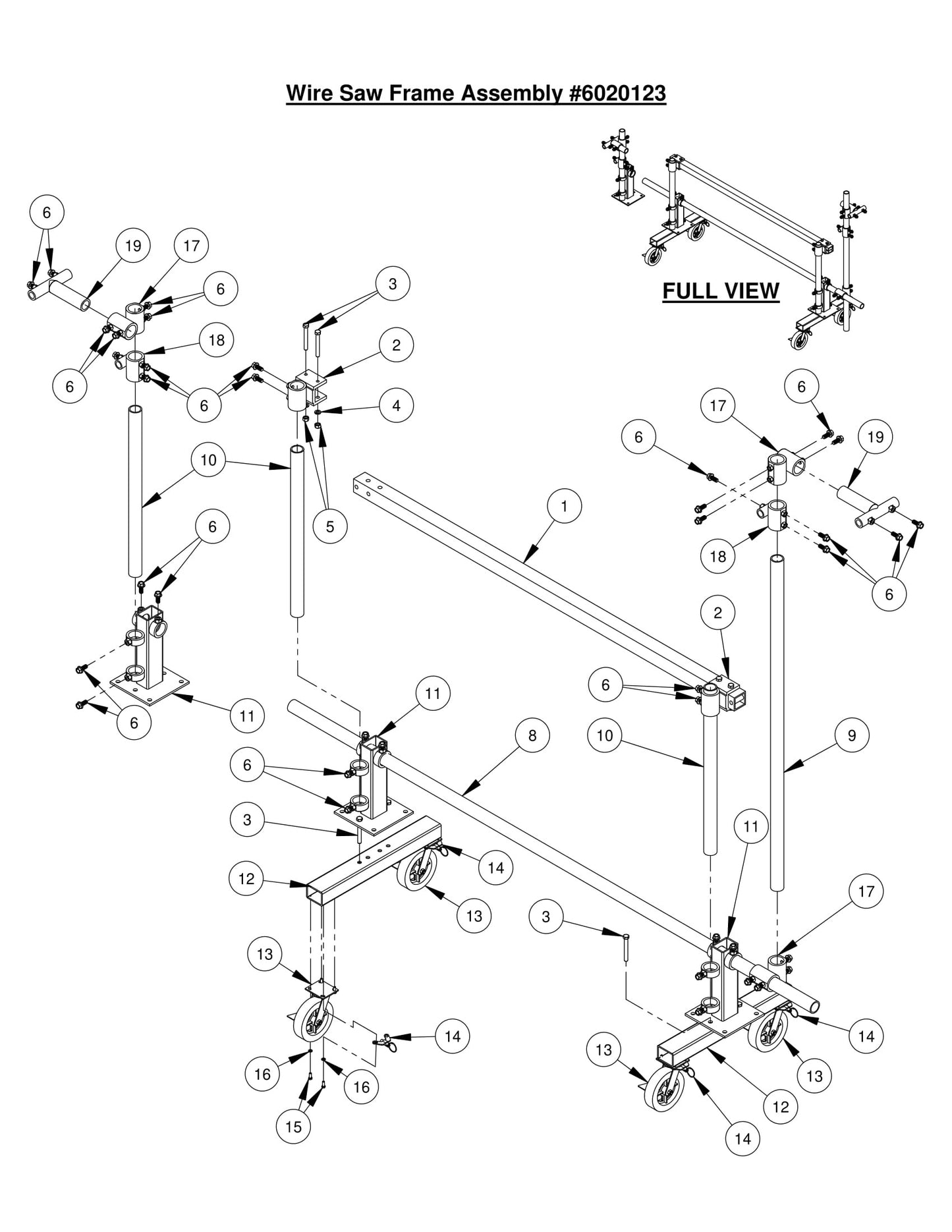

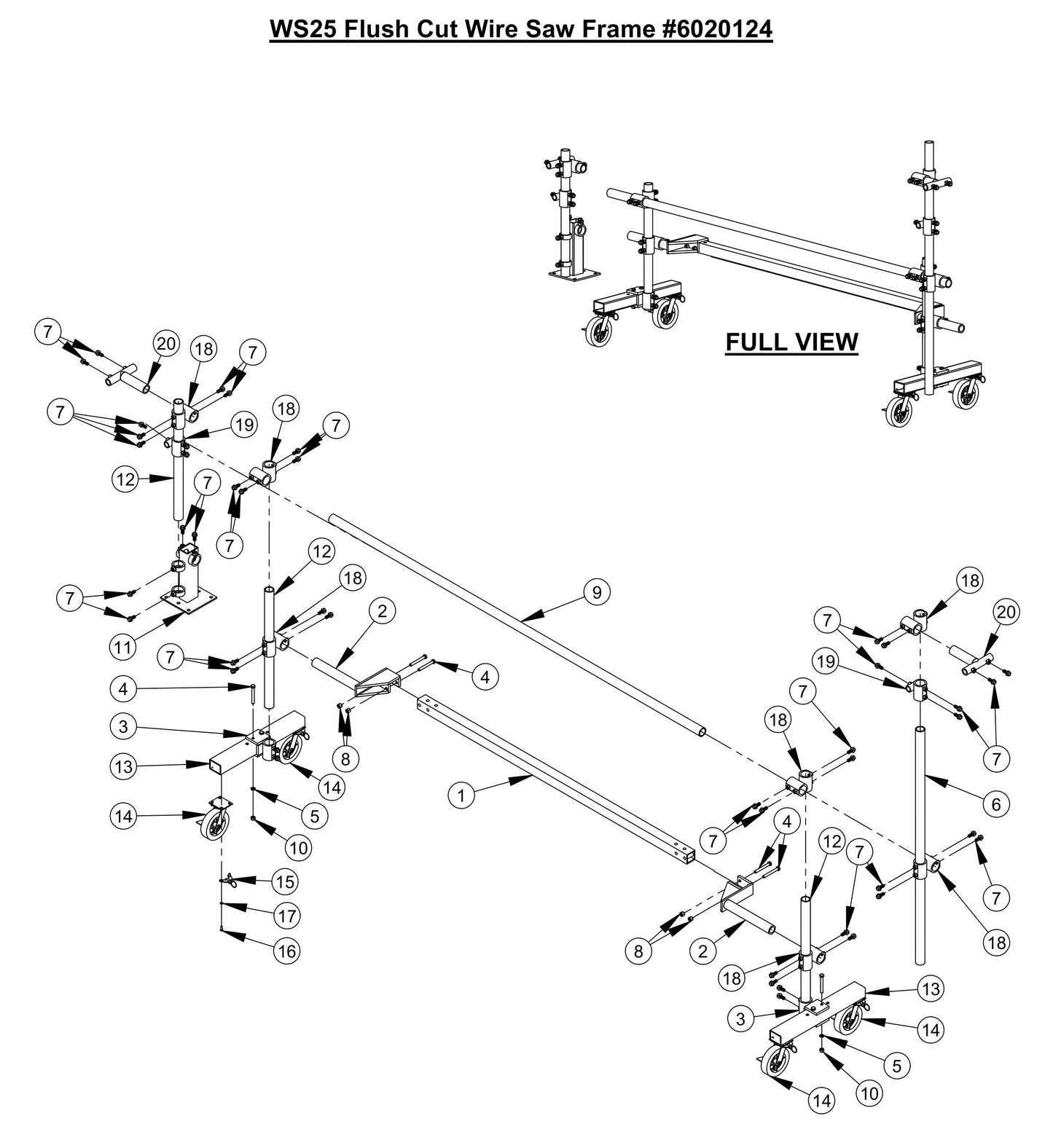

WS25 Flush Cut Wire Saw Frame Assembly Parts

WS25 Flush Cut Wire Saw Frame Assembly Parts

  • WS25 Flush Cut Wire Saw Frame Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
6020006 Wire Saw Mast for WS25 Wire Saw Core Cut by Diamond Products
$1,501.83
4
2900502 Cap Screw, Hex Hd., 5/8-11 x 5" for WS25 Wire Saw Core Cut by Diamond Products
$10.76
5
2900113 Lock Washer 5/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
6
2900112 Hex Nut, 5/8-11 for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
7
2900164 Cap Screw, Flange Hd., 5/8-11 x 1-1/2" for WS25 Wire Saw Core Cut by Diamond Products
$6.99
8
2900135 Lock Nut, 5/8-11 Nylon for CC6540E CONCRETE SAW Core Cut by Diamond Products
$3.99
9
6020111 2" Schedule 80 Pipe x 11' for WS25 Wire Saw Core Cut by Diamond Products
$569.25
10
6020112 2" Schedule 80 Pipe x 6' for WS25 Wire Saw Core Cut by Diamond Products
$335.61
11
6020000 Pipe Mounting Base for WS25 Wire Saw Core Cut by Diamond Products
$411.84
12
6020113 2" Schedule 80 Pipe x 3' for WS25 Wire Saw Core Cut by Diamond Products
$181.17
13
6020021 Wheel Brace for WS25 Wire Saw Core Cut by Diamond Products
$303.93
14
2500263 8" Caster for WS25 Wire Saw Core Cut by Diamond Products
$207.90
15
2502148 Wheel Lock for WS25 Wire Saw Core Cut by Diamond Products
$46.98
17
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
18
6020002 Universal Knuckle for WS25 Wire Saw Core Cut by Diamond Products
$308.88
19
6020003 Saw Clamp for WS25 Wire Saw Core Cut by Diamond Products
$214.83
20
6020004 Universal Tee for WS25 Wire Saw Core Cut by Diamond Products
$193.05
2
Diamond Products OFFSET BRACKET WS-25 6048961
$338.75
3
Diamond Products WIRE SAW ADAPTOR WS-25 6020061
$268.29
16
2900005 Cap Screw, Hex Hd., 3/8-16 x 1" for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
