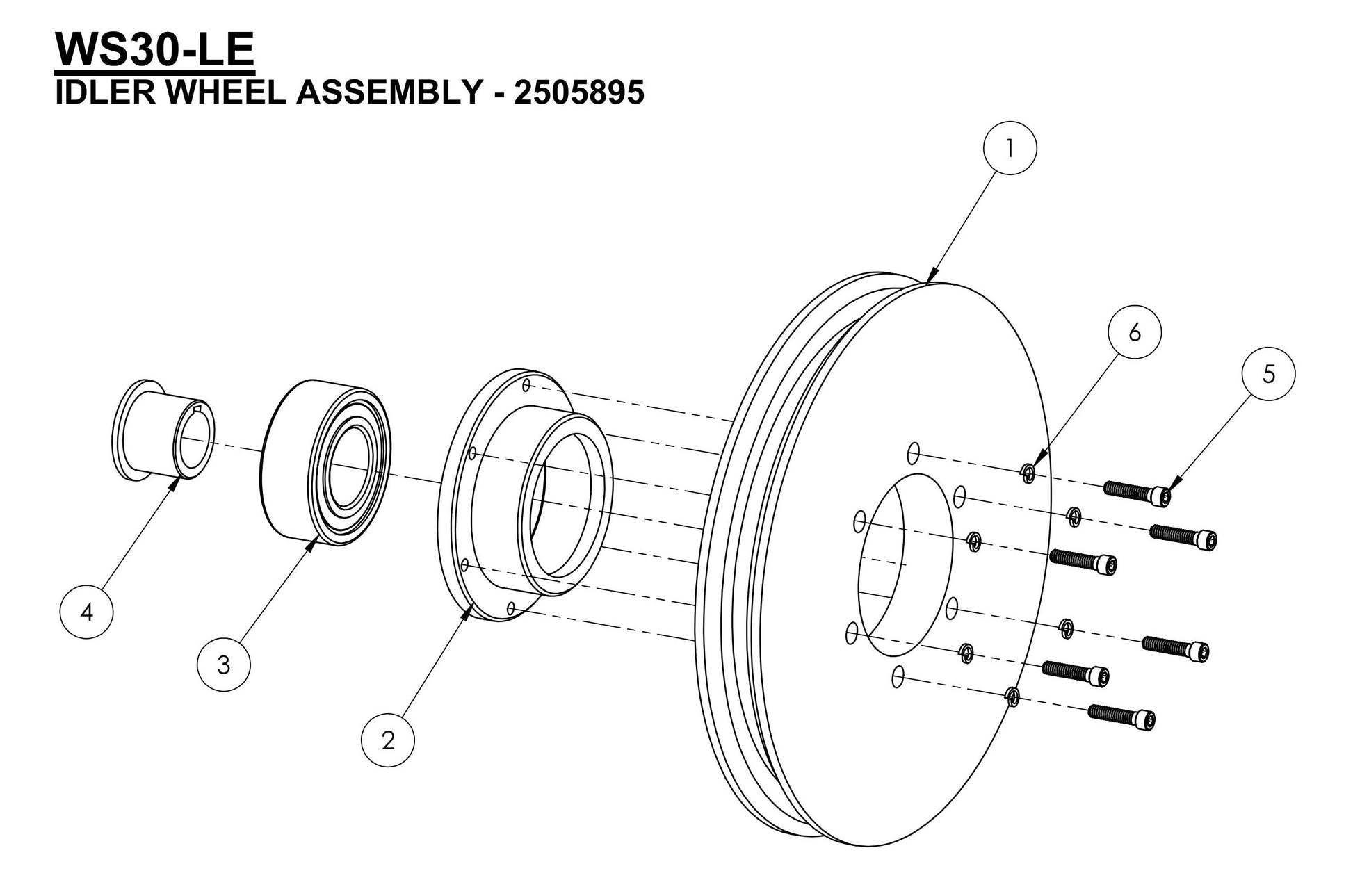

WS30-LE Idler Wheel Assembly-1 Parts

WS30-LE Idler Wheel Assembly-1 Parts

  • WS30-LE Idler Wheel Assembly-1 Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
Diamond Products WS-50-XLE IDLER WHEEL 6072508
$253.75
2
Diamond Products BEARING FLANGE, 80MM 6070269
$337.59
3
Diamond Products BEARING 40 X 80 X 1.1875" 5208-2RS DOUBLE ROW DOUBLE SEAL 2503953
$50.48
4
Diamond Products KEYED BUSHING 6070268
$81.30
5
Diamond Products 1/4-20 X 1.125 SHCS ZINC PLATED 2902026
$4.99
6
2900404 Lock Washer, 1/4" Split High Collar for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details
