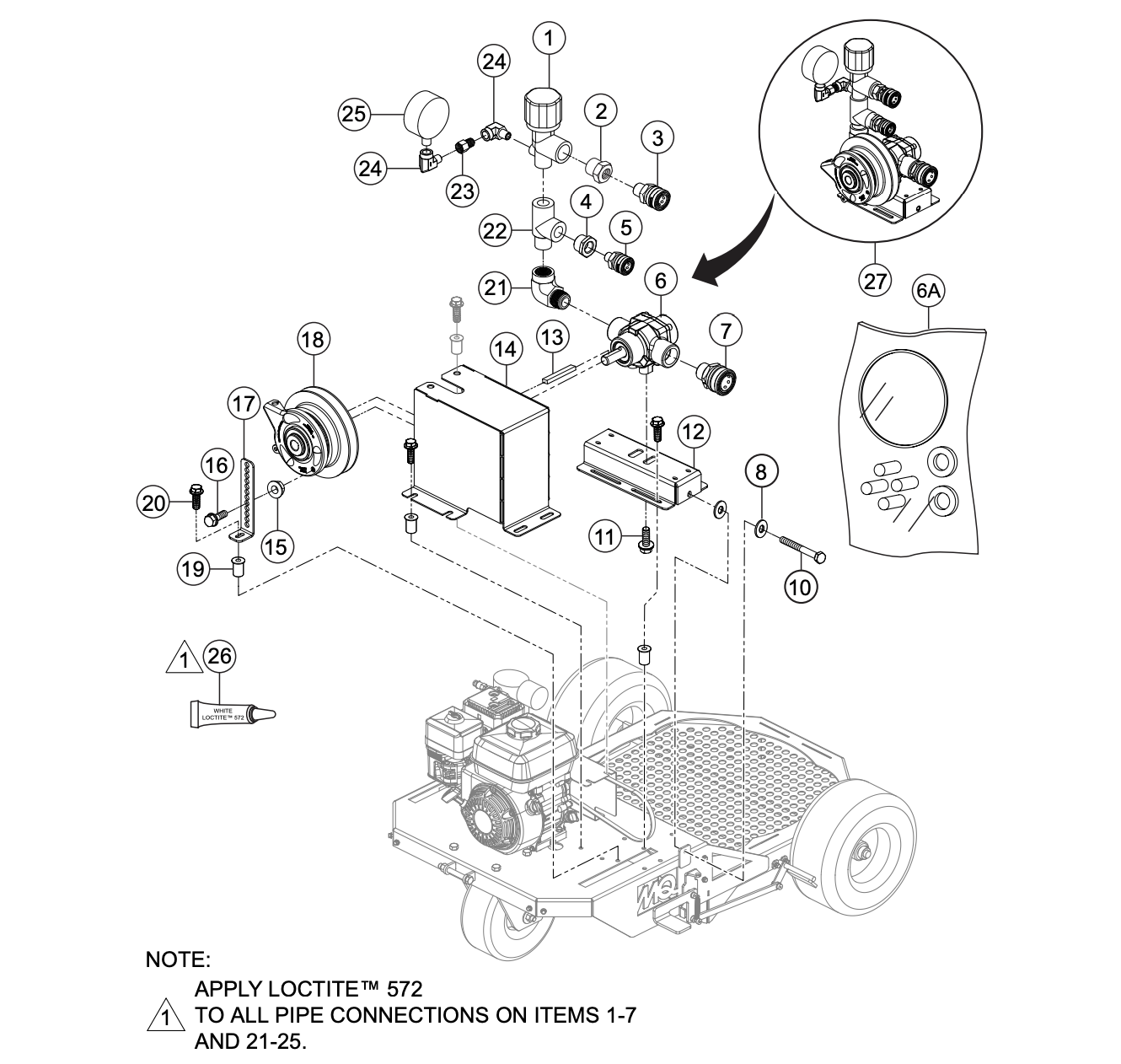

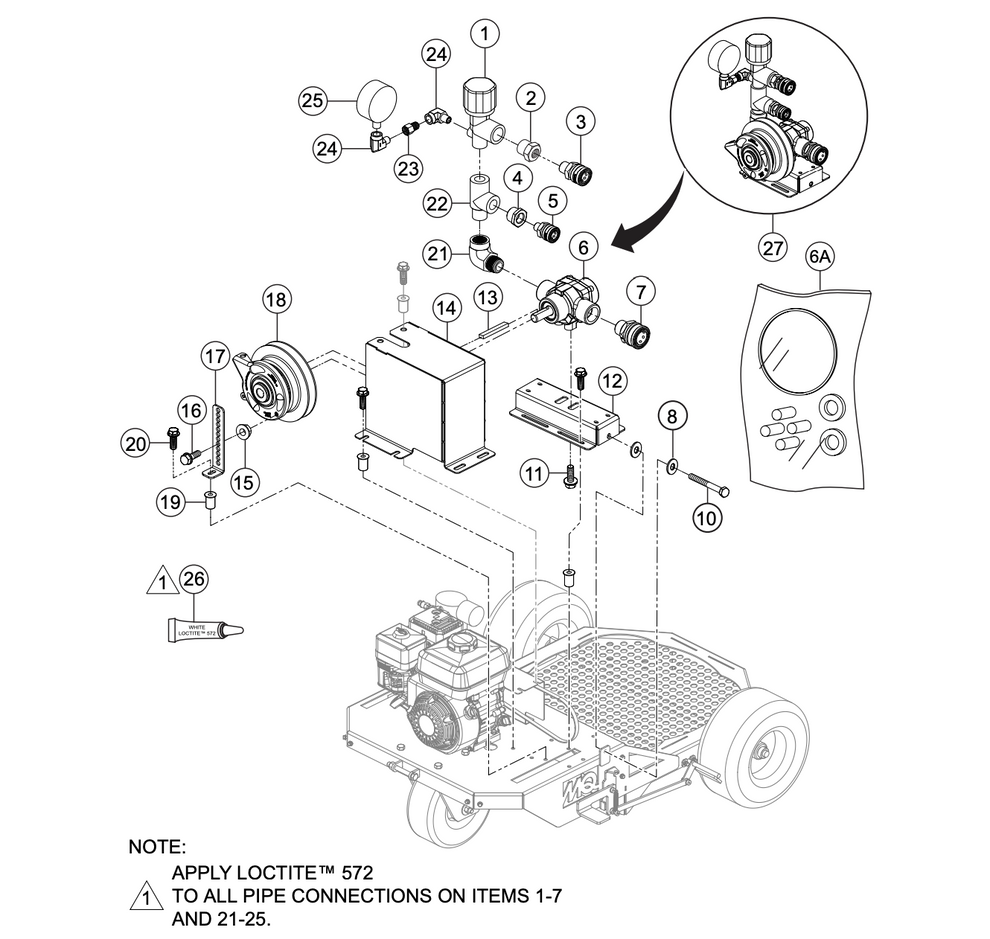

WSC55 Series Pump Assembly Parts

WSC55 Series Pump Assembly Parts

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
16585 FITTING, BUSH 1/2FP-3/4MP STEEL/YEL ZINC by Multiquip
$8.11
3
49327 FITTING 1/2 MNPT FEMALE QUICK by Multiquip
$83.30
4
49333 FITTING, BRASS 3/4 MNPT - 3/8 FNPT by Multiquip
$22.02
5
49328 FITTING 3/8 MNPT FEMALE QUICK by Multiquip
$38.89
6
49261 PUMP 4 ROLLER 5/8 SHAFT REWORK by Multiquip
$1,266.65
6A
49285 KIT REBUILD 4 ROLLER WSC55/ BM by Multiquip
$123.96
7
49326 FITTING 3/4 MNPT FEMALE QUICK by Multiquip
$78.86
8
0948 Washer, Flat 1/4 Sae for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
10
49347 SCREW HHC 1/4-20 x 3.5 FULL THRD by Multiquip
$3.29
11
34002 SCREW HFS 5/16-18 x 1/2 GR 5 by Multiquip
$4.39
12
49263 W/A BRACKET PUMP WSC55 by Multiquip
$56.29
13
584013 KEY 3/16 SQ x 1.0 | Genuine Multiquip OEM Parts
$3.99
14
49352 W/A GUARD RIGHT | Genuine Multiquip OEM Parts
$63.25
15
49071 NUT, HFS, 5/16-18 | Genuine Multiquip OEM Parts
$4.39
16
9091 SCREW HFS 5/16-18 X 1 GR5 by Multiquip
$4.39
17
49314 BRACKET IDLER | Genuine Multiquip OEM Parts
$32.15
18
49290 CLUTCH PUMP MECHANICAL by Multiquip
$338.73
19
19266 Blind Nut for HHN31V Mechanical ride on power trowels by Multiquip Whiteman
$4.39
20
49048 SCREW HFS 1/4-20 x 3/4 GR5 by Multiquip
$4.39
21
49335 FITTING 90 3/4 FP X 3/4 MP, STL by Multiquip
$25.96
22
59156 FITTING, RUN TEE 12MP-12FP-12FP by Multiquip
$35.73
23
30384 FITTING, 1/4 MNPT X 1/4 FNPT by Multiquip
$4.39
24
8053 FITTING, 90 1/4FP - 1/4MP by Multiquip
$11.02
25
49310 GAUGE 300PSI LIQUID | Genuine Multiquip OEM Parts
$83.30
26
60096 Loctite, White #572 Ar for BH90C BH11C BS90C Walk Behind Trowels by Multiquip Whiteman
Call for Price call for price call for price
27
49339 ASM PUMP CHEM CART | Genuine Multiquip OEM Parts
$2,328.74
