WSE1621 Assembly-4 Parts

WSE1621 Assembly-4 Parts

Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
14
Diamond Products ALLEN HEAD SCREW M4X16 WSE1217 3403666
$4.99
16
3401858 Cap Screw, Socket Head, M5 x 0.8 x 12mm for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$4.99
27
3401858 Cap Screw, Socket Head, M5 x 0.8 x 12mm for M-5 Pro Core Bore Drilling Machine Core Cut by Diamond Products
$4.99
29
Diamond Products COUNTERSUNK-HEAD SCREW 3402111
$3.99
41
Diamond Products O-RING 7X2.5MM 3401037
$4.99
47
Diamond Products SEAL 3400375
$28.00
66
Diamond Products CIRCLIP INT 022 WSE2226 3403272
$4.99
67
Diamond Products SLEEVE,DOUBLE HEX (WZ QD FLANGE) 3403271
$119.79
68
Diamond Products SCREW M12 X 60 (CENTER BOLT QD FLANGE WZ) 3403270
$79.00
70
Diamond Products SPRING,13MM DIAMETER (QUICK FLANGE BOLT) 3403207
$21.00
71
Diamond Products HUB RING 3403610
$36.00
73
Diamond Products THREADED PIN M4x5 01G3-04005-00 3404213
$4.99
101
Diamond Products O-RING 140X2.0 N70 WSE1217 3403657
$11.45
65
Call for Price call for price call for price
69
Call for Price call for price call for price
98
Call for Price call for price call for price
137
Call for Price call for price call for price
138
Call for Price call for price call for price
139
Call for Price call for price call for price
140
Call for Price call for price call for price
142
Call for Price call for price call for price
144
Call for Price call for price call for price
146
Call for Price call for price call for price
174
Call for Price call for price call for price
197
Call for Price call for price call for price
204
Call for Price call for price call for price
210
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

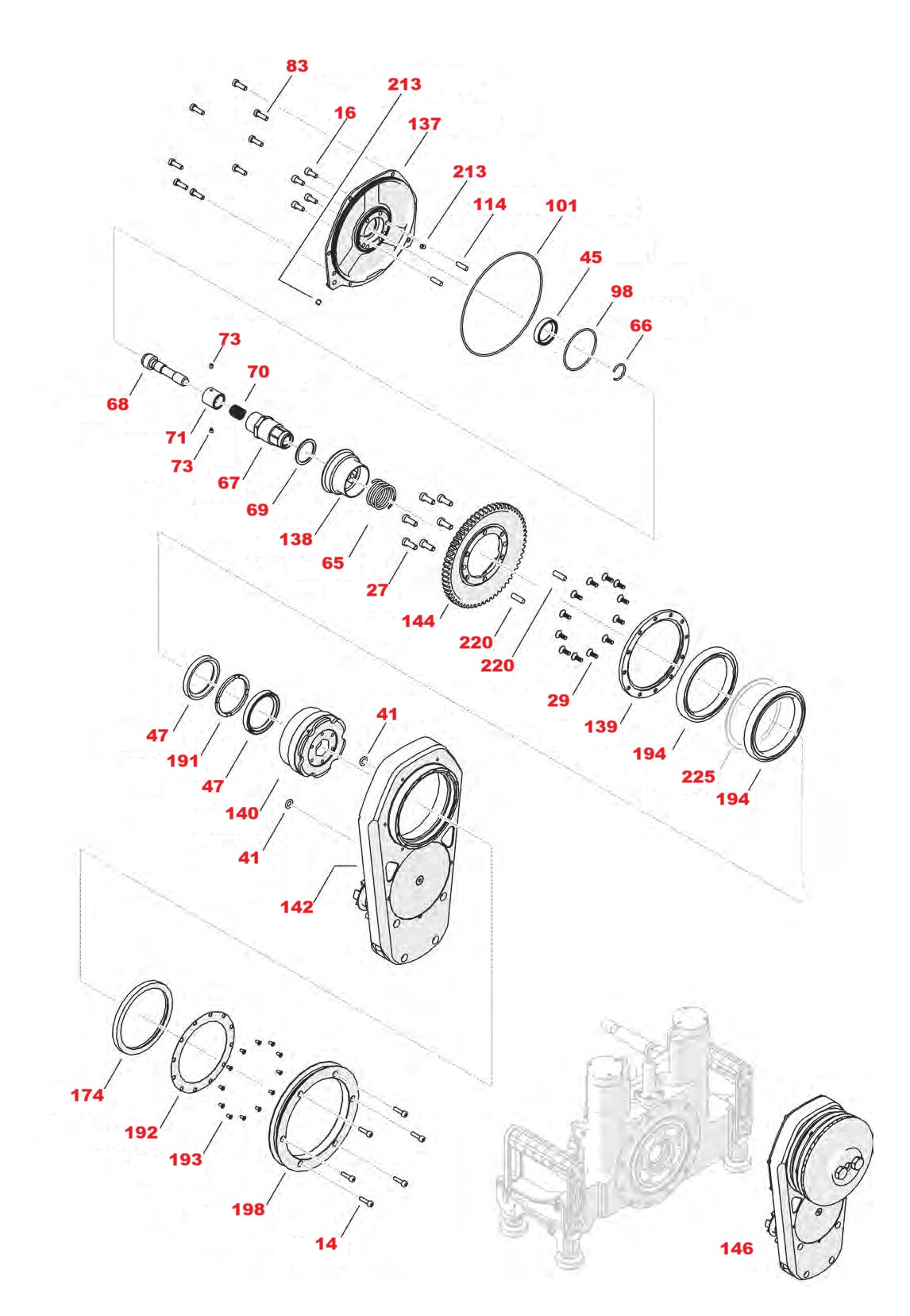

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
