WSE2226 High-Cycle Wall Saw Assembly-7 Parts

WSE2226 High-Cycle Wall Saw Assembly-7 Parts

Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
48
Diamond Products GR. BALL BEAR. 6206-2RS WSE2226 3403842
$37.00
75
Diamond Products O-RING 3X1.5MM 3400009
$4.99
84
Diamond Products CIRCLIP INT 022 WSE2226 3403272
$4.99
89
Diamond Products SEAL 4.5/7 X 1 3403324
$9.60
90
Diamond Products SPRING,13MM DIAMETER (QUICK FLANGE BOLT) 3403207
$21.00
91
Diamond Products RING,FZ-2ST AND FZ-4S 3401270
$47.00
93
Diamond Products M4 X 5MM SET SCREW 3403273
$4.99
103
Diamond Products FLAT HEAD SCREW M4X10 3403508
$4.99
138
Diamond Products SWIVELLING ARM COVER WSE2226 3403879
$2,371.05
139
Diamond Products HUB GEAR WSE2226 3403460
$1,221.66
142
Diamond Products CLAMPING SLEEVE 3403512
$305.91
143
Diamond Products 12MM X 70MM ALLEN BOLT (CENTER SCREW,QD FLANGE WSE2226 ONLY) 3403448
$133.65
144
Diamond Products WSE2226 ARM INNER HALF 3403533
$3,341.25
145
Diamond Products INTERMEDIATE GEAR WSE2226 3403461
$908.82
146
Diamond Products DRIVE PINION WSE2226 3403462
$1,310.76
147
Diamond Products LOCKING HEX RING 3403549
$433.62
154
Diamond Products SEALING RING WSE2226 3403887
$433.62
179
Diamond Products O-RING 56X2.00 N70 3403605
$4.99
180
Diamond Products O-RING 270.00X2.00 N 70 WSE2226 3403909
$45.00
181
Diamond Products CIRCLIPBORE DIA 100 WSE2226 3403910
$27.00
182
Diamond Products SHAFT SEAL A 3403606
$69.00
183
Diamond Products SHAFT SEAL 3403602
$36.00
190
Diamond Products BEARING 16013 WSE2226 3403595
$136.62
203
Diamond Products CYL. ROLLER BEAR. NJ 202 WSE2226 3403922
$99.00
209
Diamond Products O-RING 71X1.50 N70 3403607
$4.99
283
Diamond Products SOCKET SCREW FLHD M5X8 WSE2226 3403975
$4.99
284
Diamond Products STRAIGHT PIN 5H6 X 14 WSE2226 3403976
$4.99
60
Call for Price call for price call for price
85
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

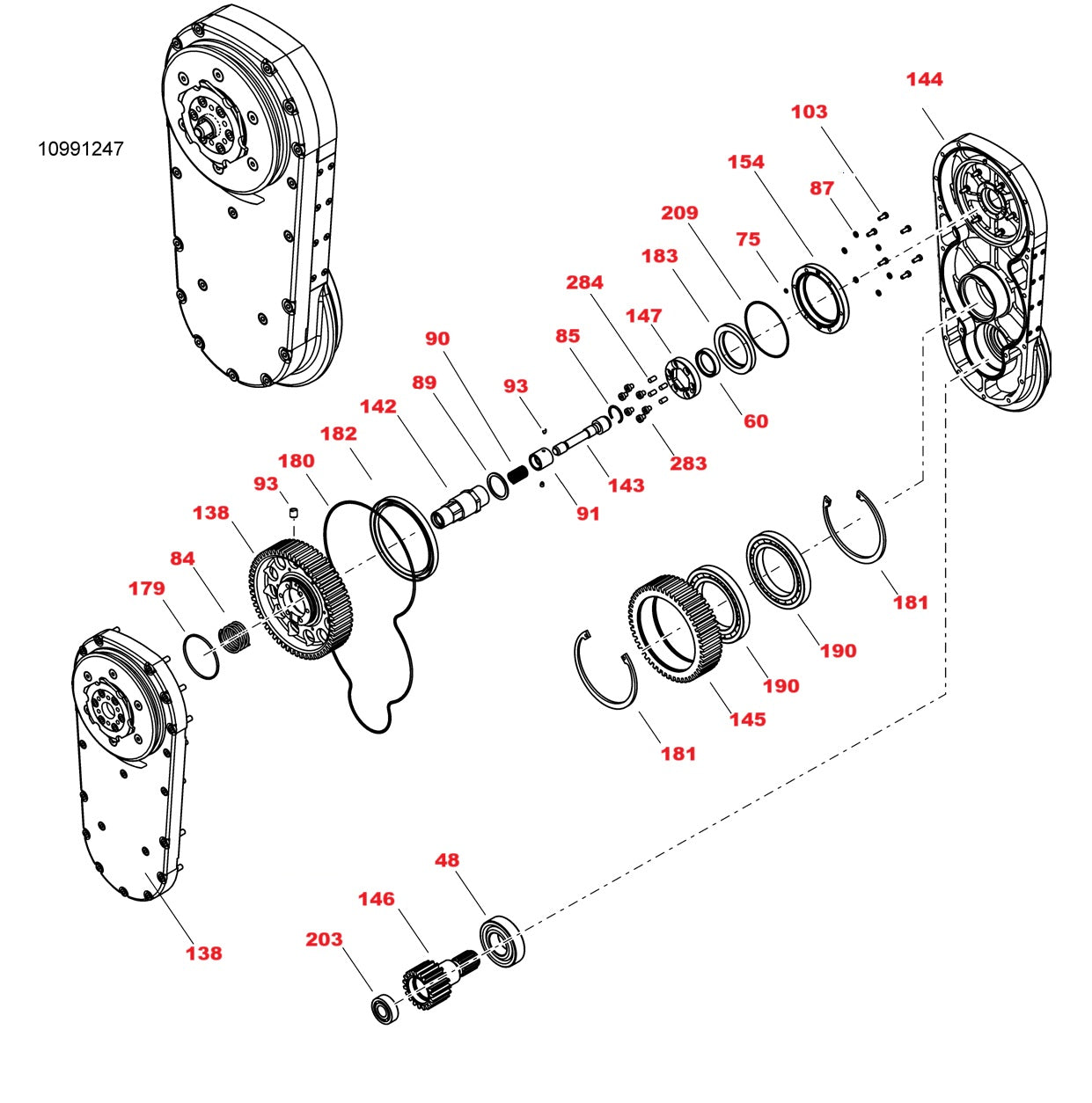

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
