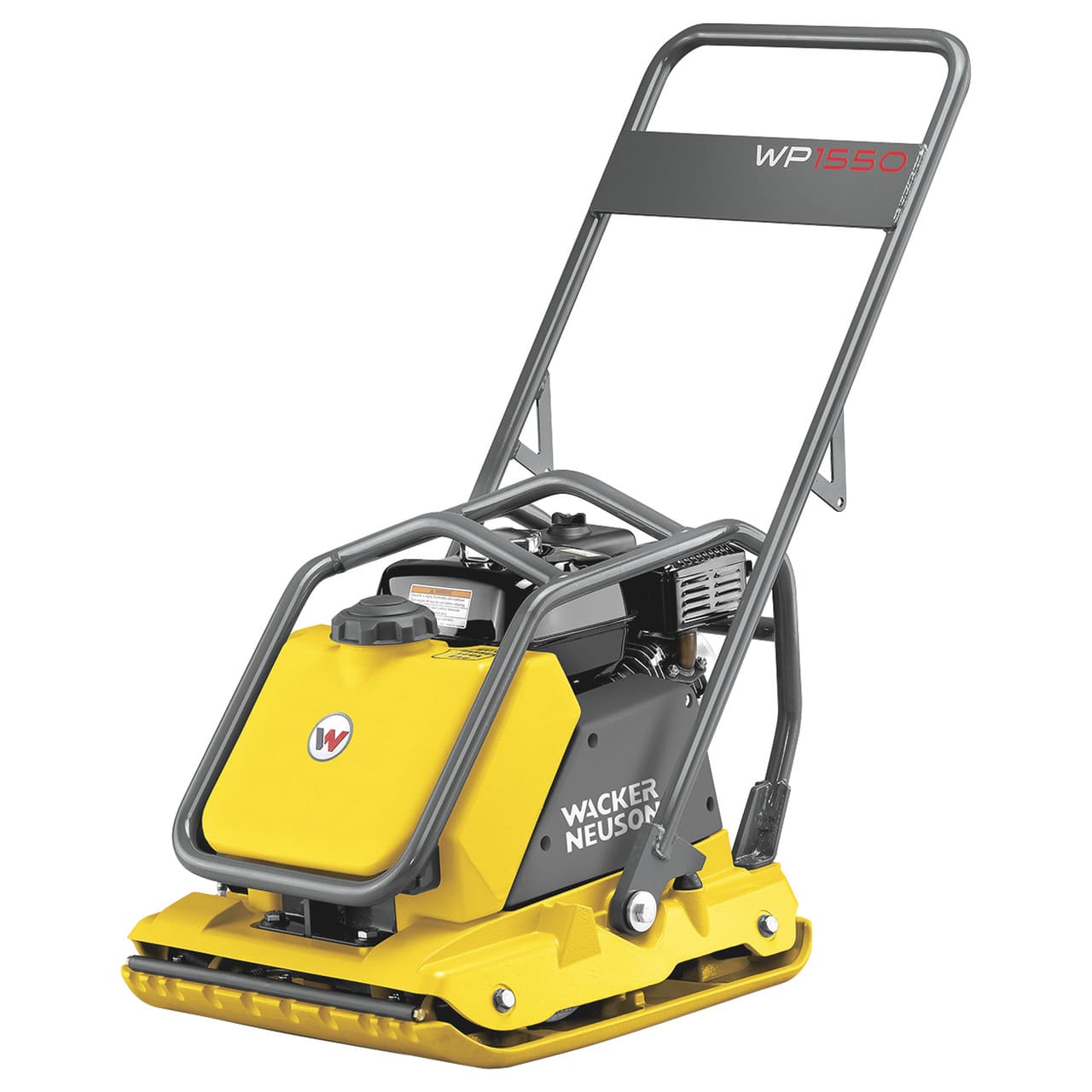

Wacker Neuson WP1550AW Single-Direction Plate Compactor with 19.6" wide plate, 3372 lb compaction force, Honda Engine & Water Tank. 5100018324

Operating weight211,6 lb
Centrifugal force3.372 lbf
Width19,6 "
Engine ManufacturerHonda


Compact single-direction vibratory plate that reliably compacts on any job site

  • Flawless asphalt compaction: The beveled edges of the base plate minimize the formation of stressed edges when turning the vibratory plate
  • The control handle allows for effortless rotating and turning
  • Sturdy design for minimum maintenance effort: The V-belt drive with all-round protection ensures a particularly long service life of the V-belt. The base plate is manufactured from wear-resistant nodular cast iron
  • A sturdy pipe frame reliably protects the engine and water tank
  • Suspension points in the protective frame allow for safe transport. The front-folding guide handle converts the unit into a compact unit in no time
  • Optional paving stone sliding mechanism, wheel set as well as water tank with sprinkling set available here in the shop


Exciter oil volume0,16 qt US0,15 l
Tank capacity1,0 gal US3,60 l
Exciter oil type75W-90 API GL-475W-90 API GL-4


Fuel managementCarburettorCarburettor
Inclined position max.20,0 °20,0 °
Engine operating modefour-strokefour-stroke
Operating Engine speed3.520 1/min3.520 1/min
Fuel consumption0,2 GPH US0,80 L/hr
Standard (Power max.)SAE J1349SAE J1349
Standard (Effective power)ISO 3046 IFNISO 3046 IFN
Tank capacity1,0 gal US3,60 l
Nominal Engine speed3.600 1/min3.600 1/min
Electrode distance0,028 - 0,032 "0,7 - 0,8 mm
Effective power4,8 hp3,6 KW
Oil filling max.0,2 gal US0,60 l
Battery capacity (nom. value)0 Ah0 Ah
Air cleanerCyclone air filterCyclone air filter
Power rating max.4,8 hp3,6 KW
Coolingair coolingair cooling
Exhaust-gas limitEPA4/08EPA4/08
Oil specificationSAE 10W-30
