About PRO 3+ HP Vibrator Motor Assembly Parts

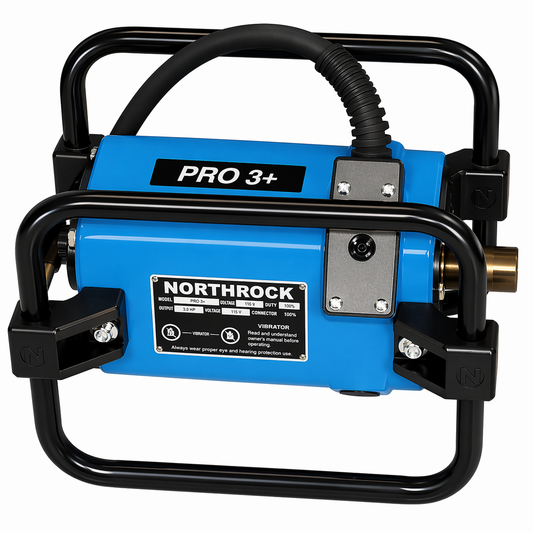

Shop genuine OEM parts for the Northrock PRO 3+ (25L3 / 25L3QD) 3 HP electric concrete vibrator motor. Click any numbered callout on the diagram below to jump to the exact part. Part numbers match the official Northrock service manual.
DanseUSA is an authorized Northrock dealer. Orders placed before 12 PM ET ship same business day when in stock. Not sure which part? Email [email protected] with your motor's model and serial number.
How to Use the Diagram
Match the Ref # on the exploded view to the row in the parts list. Click the callout → product page → add to cart. Always replace wear parts (brushes, bearings, seals) in pairs.
Most Commonly Replaced Parts on the PRO 3+ (25L3)
About 80% of PRO 3+ service issues come down to these six parts. The PRO 3+ runs at higher amp draw than the PRO 1.5+ and PRO 2+, so brushes and bearings wear faster under continuous-duty loads — diagnose in this order before replacing anything larger:
| Ref # | Part | P/N | Typical Life | Symptom |
|---|---|---|---|---|
| 21 | Carbon Brush (pair) | 490A1 | 150–350 hrs | Weak under load, heavy sparking, burn smell |
| 32 | Air Filter | 470B1 | 40 hrs | Motor runs hot, thermal cutout |
| 8 | Ball Bearing (pair) | 140C300 | 400–1,200 hrs | Grinding, squealing, shaft wobble |
| 19 | Power Cord | 505J1 | As needed | Nicks, cracked strain relief, bad plug |
| 28 | Electric Switch | 425B1 | As needed | Mushy, sticks, won't toggle cleanly |
| 31 | Switch Seal | 430A1 | Replace with switch | Water intrusion, visible wear |
PRO 3+ (25L3) Full Parts List
| Ref # | Description | Part # | Qty |
|---|---|---|---|
| 1 | Screw | 190F150 | 11 |
| 2 | End Cap | 215M1 | 1 |
| 3 | Bolt | 280A225 | 4 |
| 4 | Lock Washer | 285A250 | 4 |
| 5 | End Bell (3 HP specific) | 420D1 | 1 |
| 6 | Baffle Filter (End Bell Side, 3 HP specific) | 470F1 | 1 |
| 7 | Spring Washer | 380A1 | 1 |
| 8 | Ball Bearing | 140C300 | 2 |
| 9 | Armature (3 HP specific) | 475C1 | 1 |
| 10 | Screw | 190E140 | 2 |
| 11 | Lock Washer | 285A187 | 3 |
| 12 | Field Coil (3 HP specific) | 480C1 | 1 |
| 13 | Commutator Service Port Cap | 400B1 | 1 |
| 14 | Motor Housing (3 HP specific) | 105AG1 | 1 |
| 15 | Bolt | 280A312 | 4 |
| 16 | Lock Washer | 285A312 | 4 |
| 17 | Washer | 370A312 | 4 |
| 18 | Frame Assembly (3 HP specific) | 440D1 | 2 |
| 19 | Grounded Power Cord (heavy gauge) | 505J1 | 1 |
| 20 | Brush Holder | 495A1 | 2 |
| 21 | Carbon Brush | 490A1 | 2 |
| 22 | Brush Cap | 500A1 | 2 |
| 23 | Outer Protective Brush Cap | 400C1 | 2 |
| 24 | Cord Mounting Plate | 215CC1 | 1 |
| 25 | Screw | 190F875 | 4 |
| 26 | Set Screw | 190B125 | 2 |
| 27 | Wire Clip | 467C1 | 1 |
| 28 | Electric Switch | 425B1 | 1 |
| 29 | Switch Mounting Plate | 215CB1 | 1 |
| 30 | Screw | 190F850 | 2 |
| 31 | Water-Resistant Switch Seal | 430A1 | 1 |
| 32 | Air Filter (3 HP specific, larger) | 470B1 | 1 |
| 33 | Air Filter Cover (3 HP specific) | 215X1 | 1 |
| 34 | Core Adapter | See compatibility chart | 1 |
| 35 | Casing Adapter | See compatibility chart | 1 |
Repair Tips
Brush replacement (Ref #21, P/N 490A1)
Unplug cord. Remove outer brush cap (400C1) and brush cap (500A1). Pull old brush. If carbon is under 1/4" or cracked, replace both brushes as a pair. Check commutator for glazing — light glaze is OK, grooves or pits mean the armature needs service. The PRO 3+ wears brushes faster than the smaller motors due to higher amp draw; check every 150 hours on continuous-duty applications. Reinstall caps finger-tight plus 1/8 turn.
Bearing replacement (Ref #8, P/N 140C300)
Two sealed bearings, one each end of the armature. Always replace as a pair. Before running the motor again, pull the flex shaft core and check lubrication — a dry core cooks new bearings within 50 hours, and the PRO 3+ is often run with long 21 ft or connected shafts that consume more driveline power. Apply a 1/16" coat of lithium grease to the core; do not over-grease.
Model-specific parts — do not cross-swap
The PRO 3+ has more unique parts than the 1.5+ or 2+. The armature (475C1), field coil (480C1), end bell (420D1), motor housing (105AG1), frame assembly (440D1), baffle filter (470F1), air filter (470B1), air filter cover (215X1), power cord (505J1), and screw 190E140 are all 3 HP specific. The PRO 1.5+ uses 475B1 / 480B1 and the PRO 2+ uses 475A1 / 480A1. Verify every part number against your motor before ordering — a 2 HP armature will not fit a 3 HP motor.
Power cord replacement (Ref #19, P/N 505J1)
Do not tape damaged cords. Replace any cord with nicks, cracked strain relief, or plug damage. The 505J1 is the heavier-gauge cord required for the PRO 3+ and carries a 20A plug. Do not substitute the lighter 505H1 cord from the PRO 1.5+ or PRO 2+ — it will overheat under the 19A load.
Switch + seal (Ref #28, #31)
Always replace the switch (425B1) and the water-resistant seal (430A1) together. A compromised seal lets water into the switch cavity and shorts the motor.
Air filter service (Ref #32, P/N 470B1)
Inspect every 40 hours. Replace when gray with embedded concrete dust. Never run the motor without the filter installed. The PRO 3+ uses a larger filter (470B1) than the PRO 1.5+ and PRO 2+ (470A1) because the 3 HP motor needs more cooling airflow for continuous-duty operation. Do not substitute th
