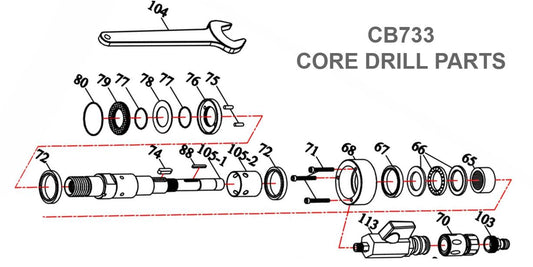

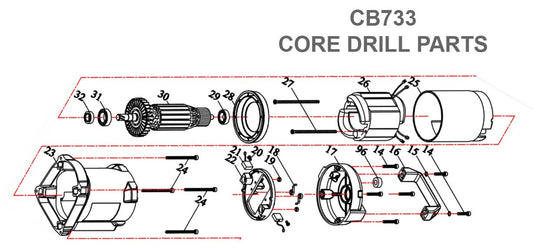

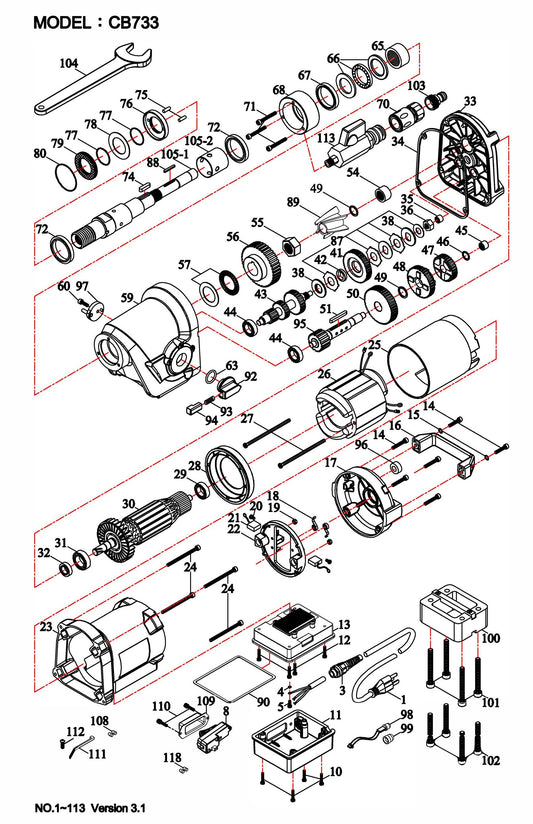

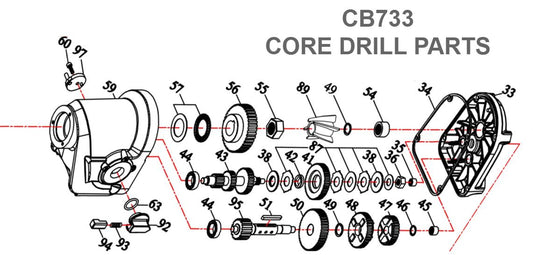

Shop By diagram:
Showing 1 to 5 of 5 items

Parts:
Showing 1 to 36 of 37 items

View More

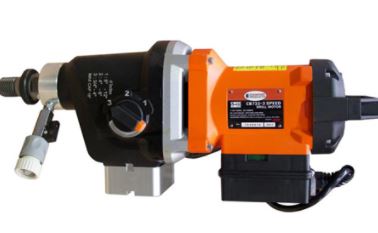

CB733 Concrete Core Drill Motor Parts by Core Bore Diamond Products

Keep your CB733 3-Speed Electric Drill Motor running at peak performance with our full range of genuine Diamond Products core drill parts and accessories. Each component is engineered to match the original Core Bore specifications, ensuring a precise fit and reliable concrete coring performance on every job.

Key features of the CB733 3-Speed Electric Drill Motor include:

  • 3-Speed Electric Motor: Provides flexibility and power for a variety of concrete drilling tasks.
  • 20 Amp, 120 Volt or 230 Volt Power Options: Ensures compatibility with different electrical setups.
  • Up to 16" Bit Capacity: Accommodates a wide range of bit sizes for versatile drilling.
  • Built-in Thermal Overload Protection: Prevents overheating and extends the motor's lifespan.
  • Water Connection for Wet Drilling: Keeps the drill bit cool and reduces dust during operation.
  • On/Off Switch with Amp Meter: Allows easy control and real-time monitoring of motor performance.
  • 1.250"-7 Threaded Spindle: Ensures a secure and precise fit for your drill bits.

Our inventory includes core bore Diamond Products rigs, Diamond Products core bits, and a wide selection of Diamond Products core drill parts to support both standard and heavy-duty concrete coring. Whether you’re replacing a worn component or outfitting a complete rig, you’ll find parts designed to deliver consistent performance in demanding conditions.

By choosing authentic Diamond Products parts, you can maintain the integrity, safety, and efficiency of your CB733 drill motor, reducing downtime and keeping your concrete drilling projects running smoothly.

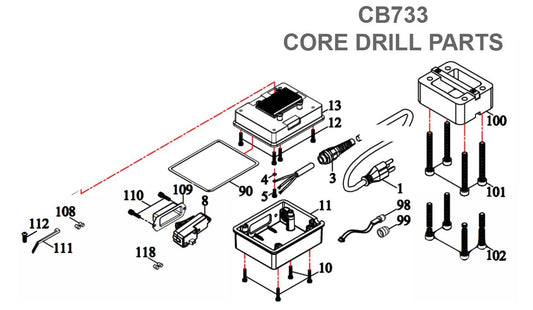

Quick Genuine CB733 Shop by Diagram links

Find the Right Part Fast

  1. Identify the equipment model and serial number.
  2. Click EQUIPMENT PARTS in the site header.
  3. Select Diamond Products Parts from the brand list.
  4. Choose your equipment category.
  5. Select the exact model number of your equipment.
  6. Use the interactive parts diagram to identify and add the correct part(s) to your cart.

Customer Support Promise

We stand behind every Diamond Products Core Bore part with real tech support and quick replies. Unsure which brushes, an armature, switch, or seal kit for your DK/CB motor? Send your model and article/serial, our techs can help you with reference diagrams and service notes to get you drilling again fast.

Contact: customerservice@danseusa.com · +1 (202) 630-1027

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved replacement, we ship the latest superseded revision

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
