FKITMTX1 Multiquip Mikasa Kit Filter MTX1 Rammer Maintenance
- Primary Air Filter
- Secondary Air Filter
- Spark Plug
- O-Ring
- In-Line Fuel Strainer
- Fuel Tank Strainer
About MTX70HD Jumping Jack Rammer Parts by Multiquip Mikasa

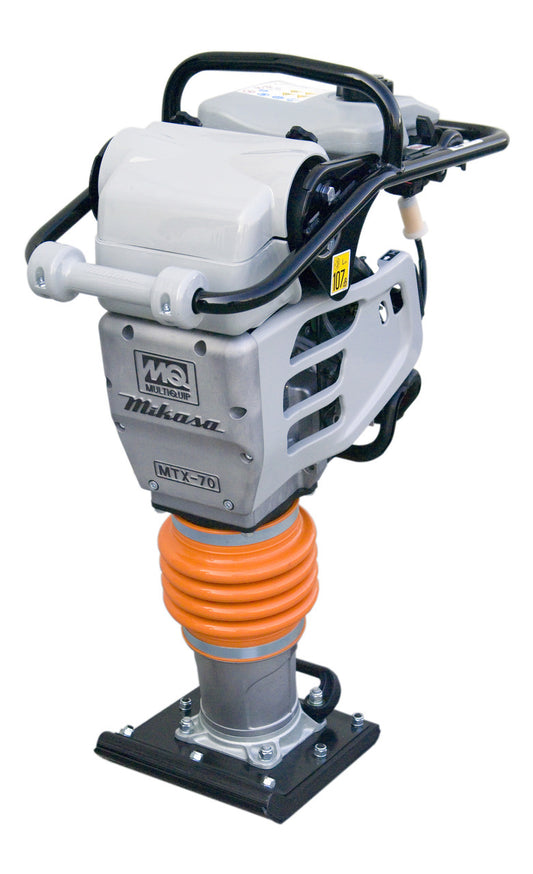

Genuine Multiquip Mikasa MTX70HD jumping jack rammer parts, from the bellows, clutch and foot to the Honda GX100RTKRBF engine, organized by the machine’s 19 parts diagrams. The MTX70HD is the current GX100 model of the Mikasa MTX-70 rammer, also called a tamping rammer or jumping jack compactor. Every part number on this page comes from Multiquip’s MTX70HD parts list.
Before you order, check the model and serial number on the plate on the crankcase. The clutch, carburetor and front cover changed at specific MTX70 serial numbers, listed below. If the plate is gone, send us the engine number and a photo of the machine; Multiquip supplies replacement plates against the serial number.
Identify your Mikasa MTX70 model
| Model on the plate | What it is and which parts it takes |
|---|---|
| MTX70HD | Honda GX100RTKRBF, 98 cc, 3.0 hp; 3,350 lbf impact force; 11.2 x 13.4 inch shoe; 165 lb. The diagrams on this page are its current parts list. The complete engine is engine assembly 912210021. |
| MTX70HDR | The same rammer with a Honda GXR120 engine, 3.6 hp. Its rammer-side part numbers match the MTX70HD except the fuel tank. The engine parts are all different and don’t cross; they’re on the MTX80HDR list, which uses the same GXR120. |
| MTX70SD | The Subaru-powered version, no longer built. Multiquip converts it to an MTX70HD with engine assembly 912210021, a new serial plate 920216320 and eleven rammer-side parts from this list: intake pipe, cyclone clamps, cross bar, the three guards, wire harness, clamps and bolts. Send us the serial number and we’ll order the conversion parts. |
| MTX70 (older) | The earlier machines with the Honda GX100U-KRBF. They take the rammer-side parts on these diagrams, and the serial breaks below were written for them. |
MTX70HD parts diagrams and the MTX-70 parts manual

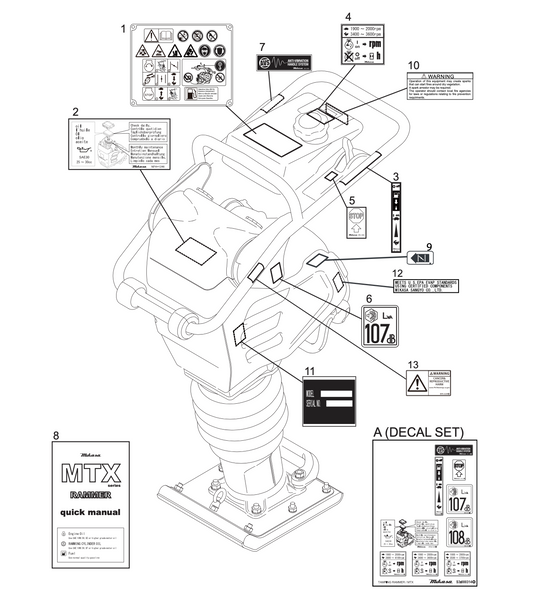

The rammer parts are on seven diagrams: foot, guide cylinder, crankcase and engine, fuel tank and handle, combination lever, tools, and nameplates and decals. The twelve Honda engine diagrams are in the engine table further down. The full Multiquip Mikasa MTX70HD parts manual (Revision 5) is also available.

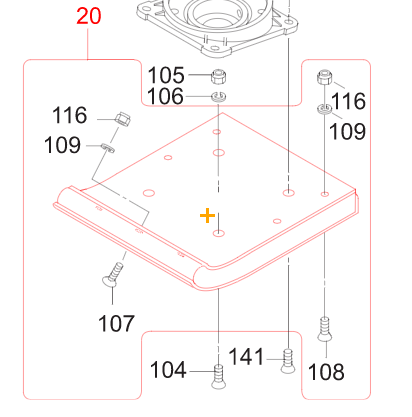

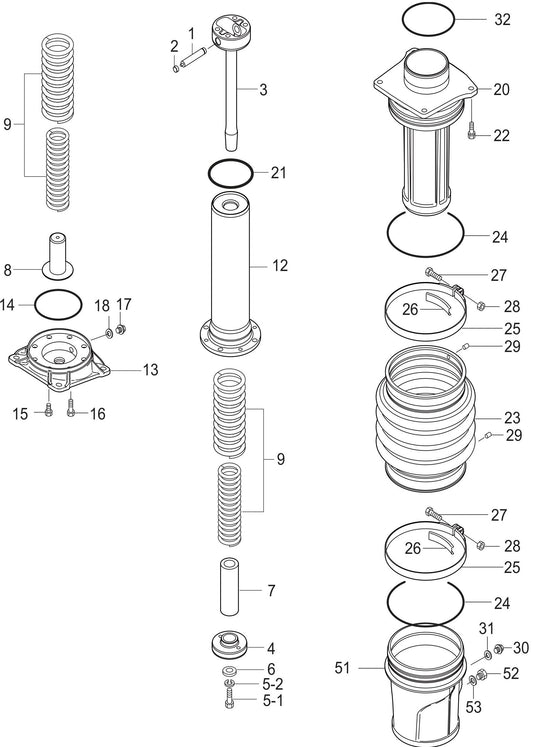

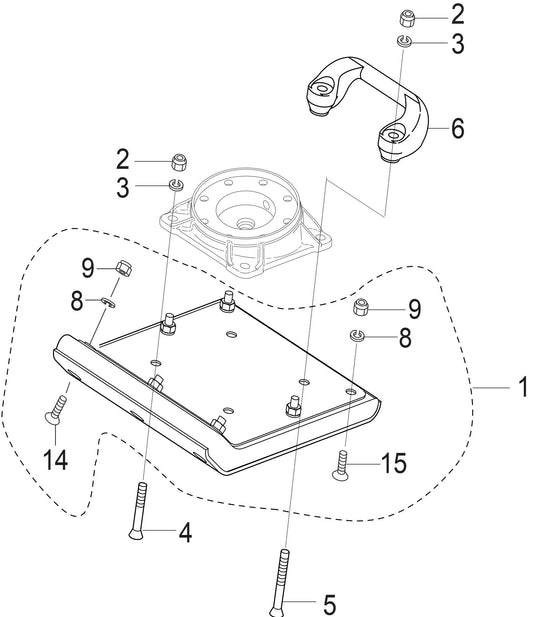

Foot, bellows and guide cylinder parts

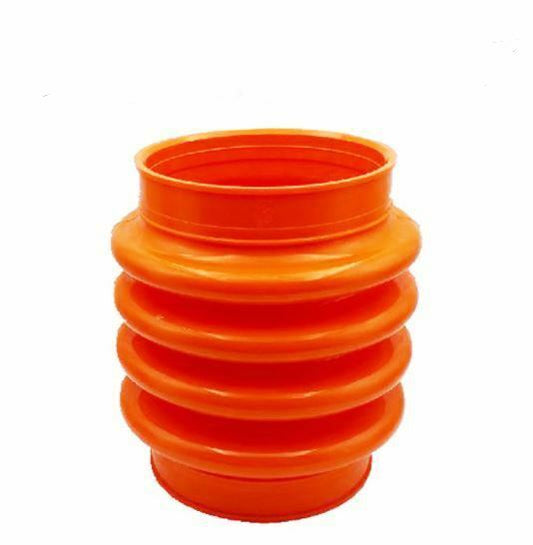

A leaking bellows 354010010 gets replaced along with its two clamps 354336352. A broken main spring 366459730 is one reason a rammer jumps erratically or not at all. The bellows, springs and shoe are on the foot and guide cylinder diagrams.
MTX70HD maintenance schedule and service parts
The FKITMTX1 maintenance kit covers the 50 and 100 hour items in one order: primary and secondary air filters, spark plug, O-ring, in-line fuel strainer and fuel tank strainer. It also fits the MTX50HD, MTX60HD, MTX70HDR and MTX80HDR.
| Interval | What to do |
|---|---|
| Daily | Clean the engine and the controls, check and clean the air cleaner elements, and retighten the fasteners. Check the spring box and the bellows for oil leaks. |
| Every 50 hours | Inspect the in-line fuel strainer 16910Z4ES21 and replace it if needed. Remove and clean the spark plug 9805655777 (NGK CR5HSB) and set the gap to 0.024–0.028 inch. |

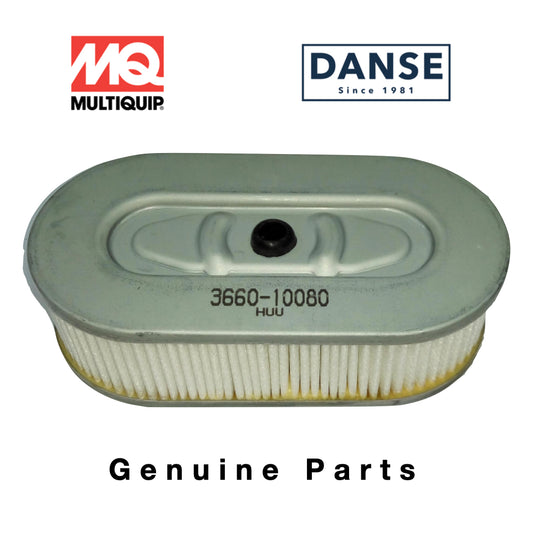

| Every 80–100 hours | Wash the primary element 366010070 in gasoline or kerosene, dip it in SAE 10W-30 engine oil and wring it out so 25–30 cc of oil stays in it. Replace it, or the secondary element 366010080, as needed; both come together in the air filter set. |
| Every 200 hours | Drain the foot oil and refill with 10W-30 (SE, SF or higher) to the middle of the sight glass. On a new machine, change the break-in oil after the first 50 hours. |
| Every 6 months | Clean the inside of the fuel tank with solvent. Inspect and clean the fuel tank strainer 954406010, and replace it if needed. |
| Every 2 years | Replace the fuel line even if it looks fine: fuel hose 959328403 and 959328406 with their hose bands, all on the fuel tank diagram. |
| Long-term storage | Set the throttle lever to STOP, drain the fuel including the hose, change the lubrication oil and grease the lubrication points, then cover the air intake and the muffler outlet. |
Engine oil changes and valve clearance follow Honda’s engine manual. The engine takes 0.28 litre of SAE 30 above 15 °F, or 10W-30 below it.
Mikasa MTX70 parts that changed by serial number
| Part | What changed, and from which serial |
|---|---|
| Clutch | From MTX70 serial S-1391 the clutch shoes changed from rubber to composite on a cam design: old 366346210, new 366348550. The new clutch retrofits the older machines and Multiquip crosses replacement orders to it, so 366348550 is the clutch to order for every MTX70 and MTX70HD. |
| Carburetor | From MTX70 serial T-3363 the carburetor has an air purge (primer) system for cold starts: old 16100Z4ES14, then new 16100Z4ES43. The current list shows the primer carburetor as 16100Z4ES46, the number to order. An earlier machine can take the primer carburetor with conversion kit 366900060 (return hose, clips, spiral tube, two-barb filter holder, strainer). |
| Filter holder | The holder under the tank changed with the purge carburetor, from one hose barb (366345280) to two (366349420). Those are the earlier numbers; the holder on the current list is 366350580, serviced with the cup and packing set 366900170. |
| Front cover | From MTX70 serial S-1393 the front gear cover has a thicker bearing support: old 366010110, new 366010111. |
The MTX70HD parts list itself shows no serial breaks; these come from Multiquip’s MTX70 technical sheets, and a repowered MTX70SD keeps its original serial. If your serial is below one of these breaks, tell us which part you’re replacing and we’ll check the number.

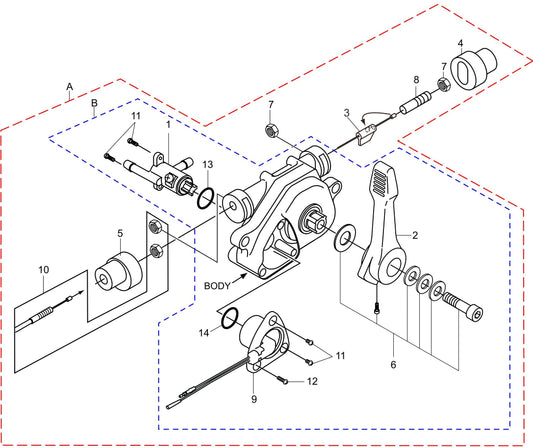

Combination lever, throttle wire and stop switch
| Part | What it is |
|---|---|
| Combination lever with throttle wire 366900032 | The complete lever: fuel cock, lever, stop switch, throttle wire and small parts. Order it when the wire is worn too, or when you’re replacing the whole lever. |
| Combination lever without throttle wire 956200110 | The same lever without the wire and its slider and caps, for a machine whose wire is still good. This is the version on Multiquip’s suggested spares list. The throttle wire 956100062 is sold on its own. |
| Stop switch 366010320 | Sold complete; its springs and contact aren’t sold separately. No spark means the switch isn’t rotating; no fuel through the lever means the fuel cock 366349430 isn’t opening. Remove the switch with the lever in the OFF position. |
Honda GX100RTKRBF engine parts for the MTX70HD
| Diagram | What’s on it |
|---|---|

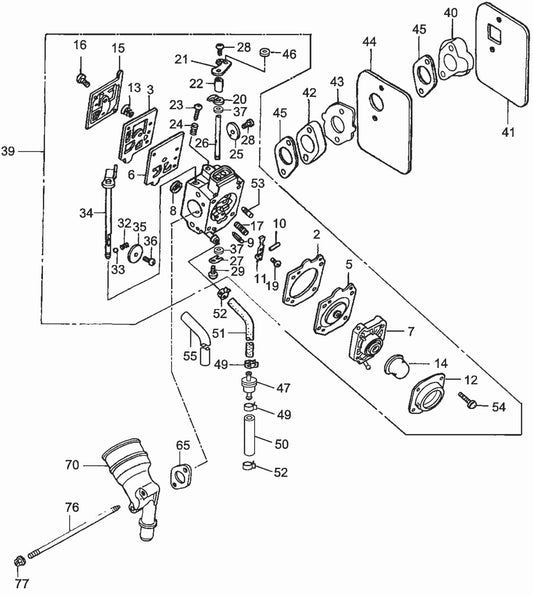

| Carburetor | Carburetor with primer 16100Z4ES46 and its diaphragms and gaskets, primer pump 16032Z4ES32, choke valve 16059Z0DV03 and the in-line fuel strainer 16910Z4ES21. |

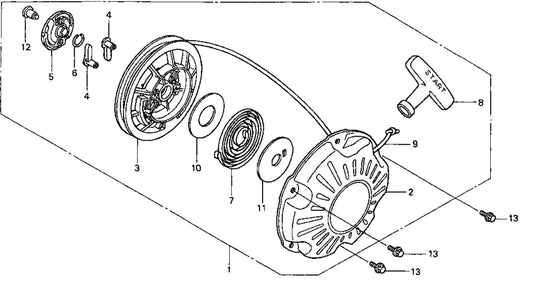

| Recoil starter | The complete assembly 28400Z0DV04ZA, or the rope 28462Z0DV03 and the knob, reel and springs separately. |

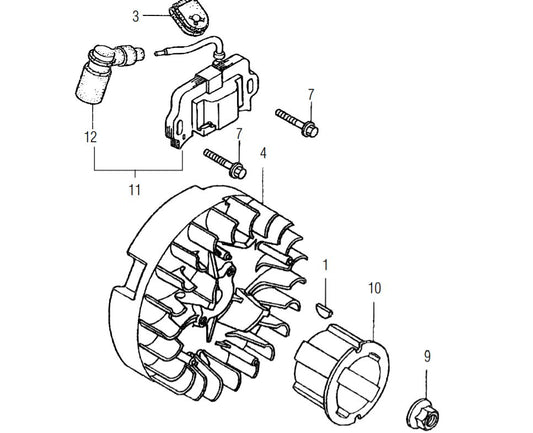

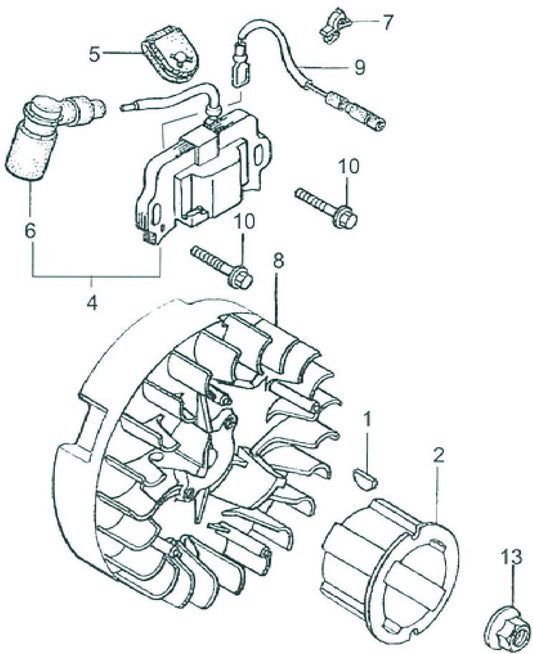

| Flywheel and ignition | Ignition coil 30500Z0DV02, stop switch cord 32195Z0D000, and the flywheel 31110Z0D003 (also listed as 131110Z0D003). |

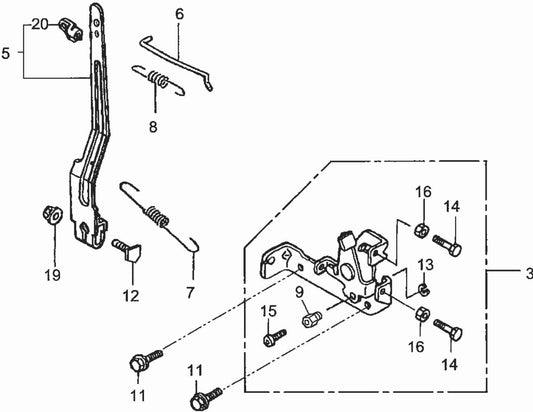

| Control | Control assembly 16500Z4ES30, governor spring 16561Z0DV00 and throttle return spring 16562Z4ES10. |

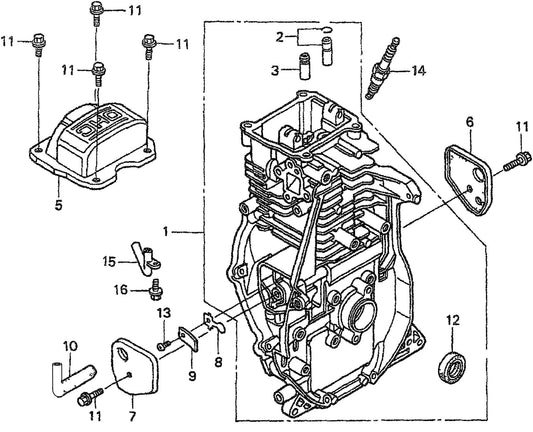

| Cylinder barrel | Cylinder barrel assembly 12000Z0D405, head cover, breather parts and the spark plug. |

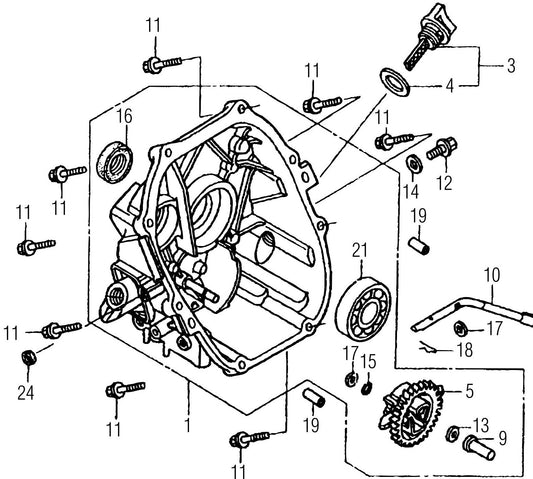

| Crankcase cover | Crankcase cover 11300Z0D409 with the governor, oil filler cap 15600ZM7003 and drain plug. |

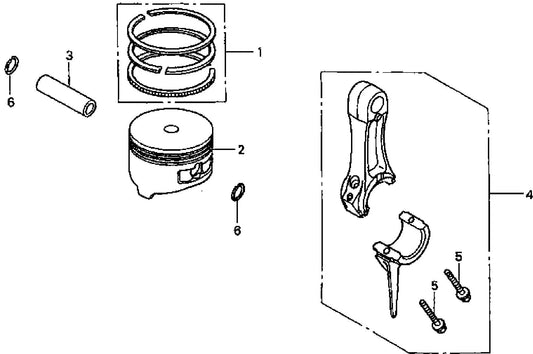

| Piston and connecting rod | Piston ring set 13010Z0D003, piston 13101Z0D000 and connecting rod 13200Z0D000. |

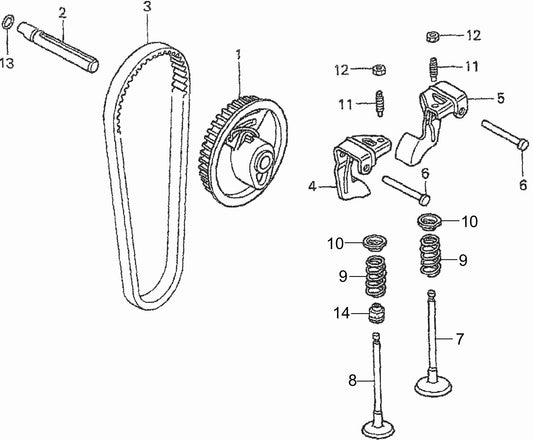

| Camshaft | Timing belt 14400Z0D003, cam pulley, rocker arms, inlet valve 14711Z0D000, exhaust valve 14721Z0D000, valve springs and tappet screws. |

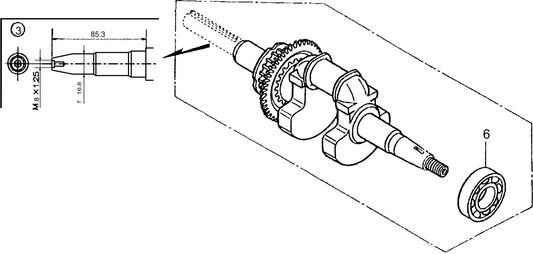

| Crankshaft | Crankshaft complete 13310Z0DV70 with its bearings. |

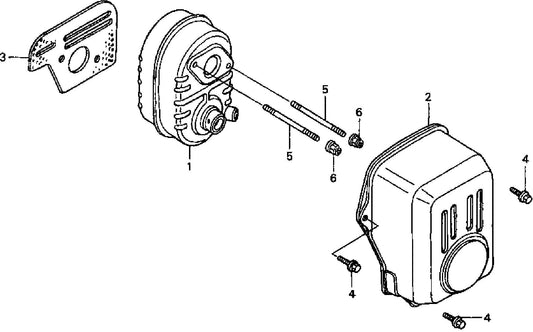

| Muffler | Muffler 18310Z0DV20, protector, gasket, studs and nuts. |

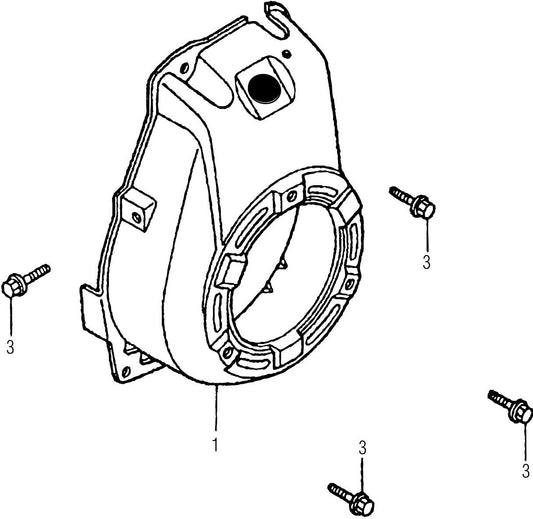

| Fan cover | Fan cover 19610Z4ES30ZA and its bolts. |

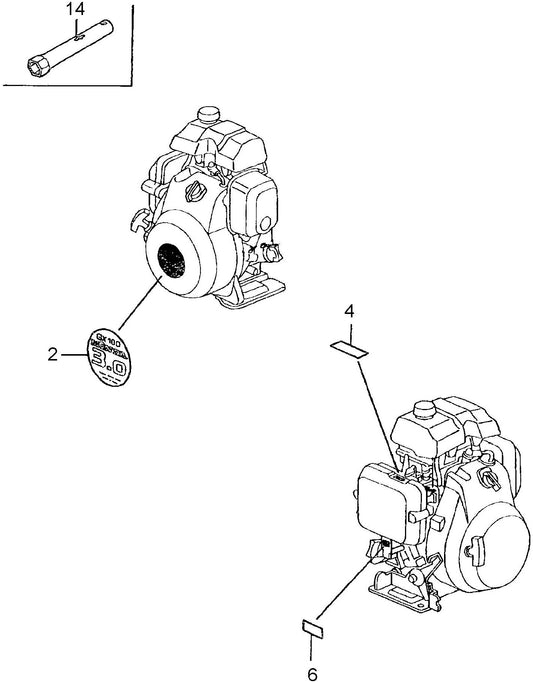

| Labels | The Honda labels and the spark plug wrench 89216130690. |

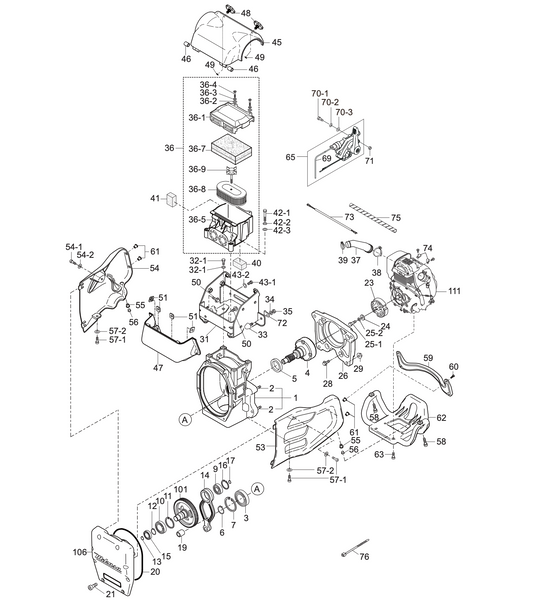

The parts between the engine and the rammer are on the crankcase and engine diagram: the engine flange 366217180, shock absorber bracket 366346280, intake pipe 366345470 with its cyclone clamps, air cleaner assembly 366900010, the cleaner covers, including the upper cover 366217340, with their knobs 366345980, the three guards (engine guard 366118913, link guard 366118893, muffler guard 366118903), the cross bar 366217360 and the wire harness 366460110.

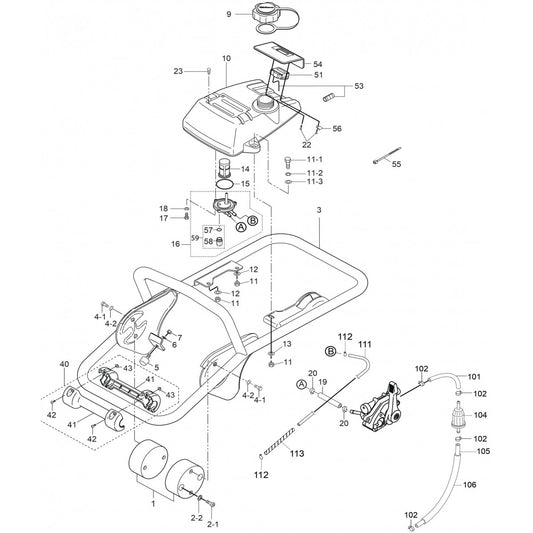

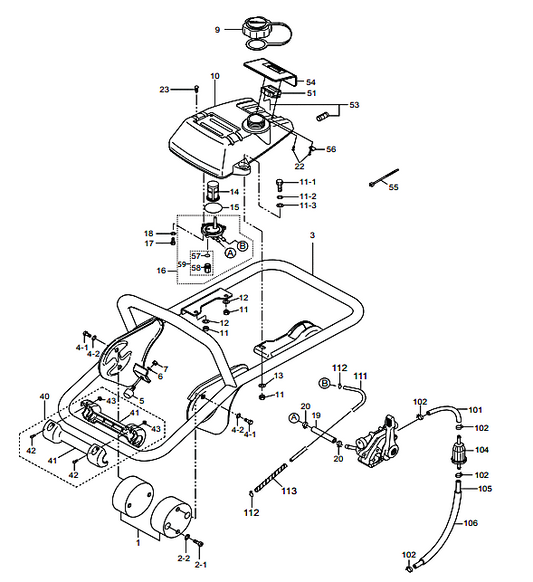

MTX70HD fuel tank, cap and handle
| Part | Number |
|---|---|
| Fuel tank | Fuel tank 366910042, which replaces 366120250. |
| Fuel tank cap | Fuel tank cap 366350460. Its breather hole has to stay clear or fuel won’t reach the carburetor. |
| Shock absorbers | Two shock absorbers with pin 366346270 carry the tank and handle. Check the rubber for damage, cracks, fatigue and hardening. |
| Handle | Handle 366119042, and the roller assembly 366910030 with its two rollers for moving the rammer on its side. |
| Hour meter | TP22 tachometer and hour meter 955010311 with its curl cord. It tells you when the 50, 100 and 200 hour service items are due. |
MTX70HD jumping jack troubleshooting
| Symptom | What to check |
|---|---|
| Engine runs but the rammer jumps erratically or not at all | Throttle lever not at the operating position; too much oil in the foot (drain to the sight glass); a slipping clutch (366348550); a broken main spring (366459730); engine speed off; or soil that’s already compacted. |
| Won’t start: fuel present, no spark | Combination lever not at START; spark plug 9805655777 bridged, fouled, cracked or wrongly gapped; fuel not reaching the carburetor (strainers 16910Z4ES21 and 954406010); water in the tank; ignition coil 30500Z0DV02; stop switch 366010320 shorted. |
| Won’t start: spark present | Wrong or wet fuel; dirty air cleaner elements (366010070, 366010080); choke open; or low compression from the valves, rings or head gasket. |
| No fuel at the carburetor | Empty tank; fuel cock 366349430 not opening; clogged strainer or lines; blocked breather hole in the tank cap 366350460; air in the line. |
| Engine speed fluctuates | Governor adjustment; governor spring 16561Z0DV00; restricted fuel flow. |
| Black or white exhaust | Black: the air cleaner, choke valve 16059Z0DV03 or carburetor 16100Z4ES46. White: the wrong oil, or worn rings (13010Z0D003). |
| Recoil starter problems | Dust in the mechanism (clean it with soap and water), or a loose spiral spring, which comes with the complete assembly 28400Z0DV04ZA. |
Parts for other Mikasa jumping jack rammers
For Mikasa jumping jack parts on other models: the MTX60HD runs the same GX100 engine on a 10.4 inch shoe; the MTX50HD, the MTX80HDR (which shares the GXR120 engine with the MTX70HDR) and the MTR40HF 5.9 inch trench rammer each have their own parts lists, as do older MT-series rammers such as the MT65HA. All of them are collected under Multiquip jumping jack rammer parts. Looking for the machine itself? See the Multiquip Mikasa MTX70HD rammer.
Not sure which MTX70HD part you need? Email [email protected] or call +1 (202) 630-1027 with the model and serial number from the plate, and we’ll find it.
